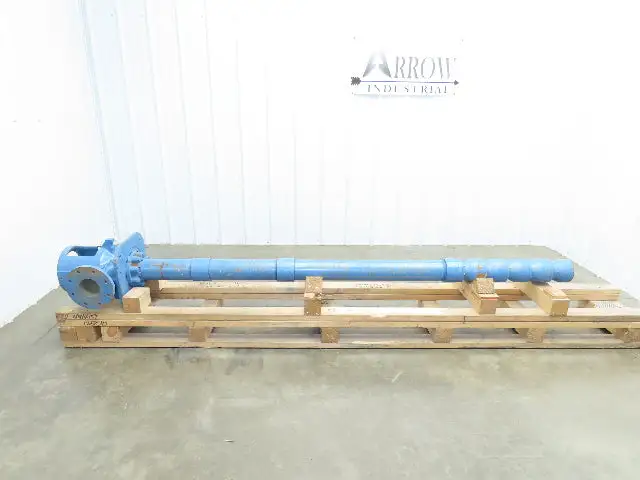

Goulds VIT-CATM 5 THC 4-Stage Vertical Turbine Pump 5x4" 220GPM 180'TDH 109"OAL

Motor Specs: No motor, 1" threaded shaft dia. 10" Motor flange Dia. 9-1/8" Bolt circle.
Pump Type and Construction: Vertical Turbine Immersion Pump

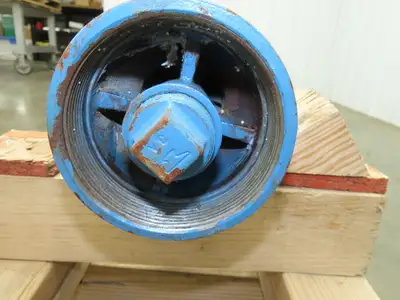

Intake Size: 5" Bowl OD (4.4" ID Threaded)
Discharge Size: 4" (9-1/4" Flange OD) 3.54" Impeller Dia.
Flow Capacity: 220 GPM
Pump Head Height: 180'
Immersion Depth (Length from flange to bottom of intake): 95" (14" Square Mounting flange)
Overall Length: 109"
New surplus.
Pump only, no motor.
Serial # 4918157.
