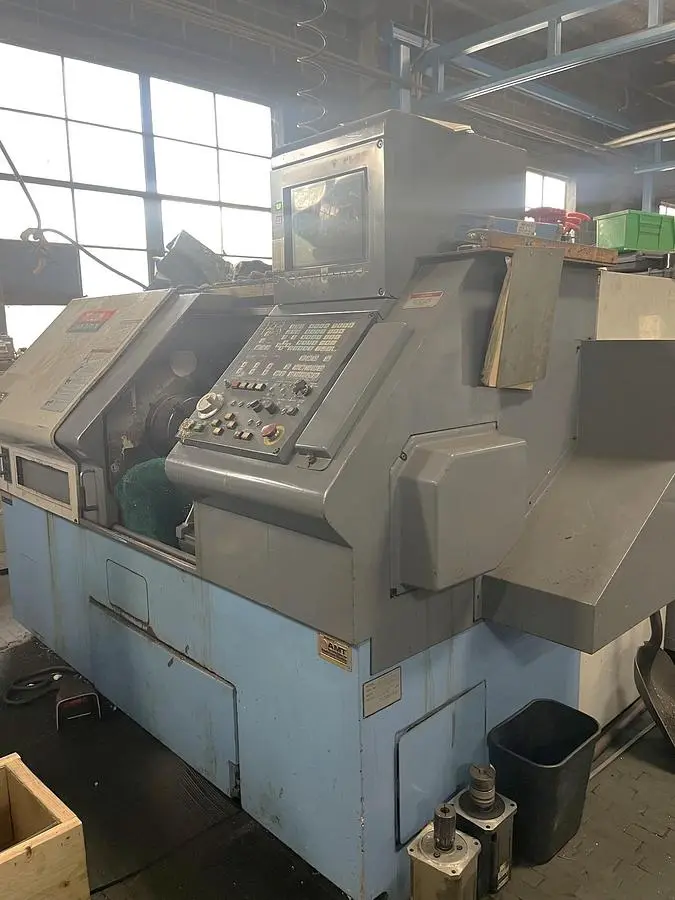

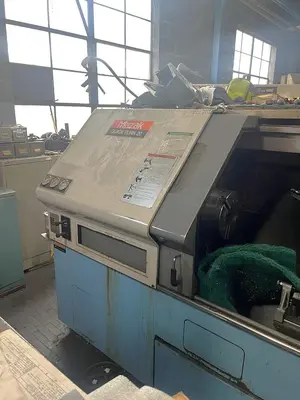

USED 1996 MAZAK QT-20HP
Overview
Description
10" 3 Jaw Hydraulic Chuck
Programmable Tailstock
Programmable Tool Eye
Complete Coolant System with Tank & Pump
RS-232 for DNC Interface
Any Available Manuals
All Available Tooling
The 1996 Mazak QT-20HP is a reliable CNC lathe equipped with a Mazatrol T-Plus control system, making it suitable for precision machining tasks. It features a 10-inch 3-jaw hydraulic chuck, enabling secure clamping of workpieces, and offers a maximum swing of 17.32 inches. With a cutting diameter capability of up to 11.81 inches and a cutting length of 17.5 inches, this machine provides flexibility in handling various machining operations.

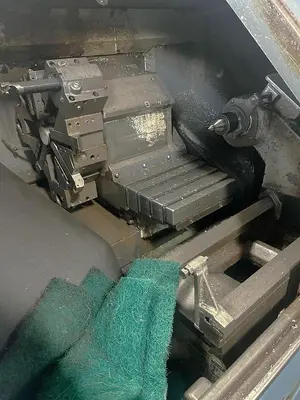

This lathe boasts a robust 20 HP spindle motor (30 minutes) and 15 HP continuous, supporting spindle speeds ranging from 40 to 4,000 RPM. The machine is designed with an 8-station turret for efficient tooling setups and offers rapid traverse rates of 1200 IPM on the X-axis and 1300 IPM on the Z-axis. The programmable tailstock enhances versatility, allowing for customized machining processes with a 2.75-inch bar capacity.
The Mazak QT-20HP measures 105 inches by 68.5 inches by 73.1 inches and weighs approximately 9,370 lbs., making it a stable and compact option for various industrial applications. Its 7.125-inch X-axis and 20.125-inch Z-axis travel, combined with the tailstock's MT #4 center and quill travel of 5.12 inches, further optimize performance and accuracy, making it a valuable asset in the machining field.
Specifications

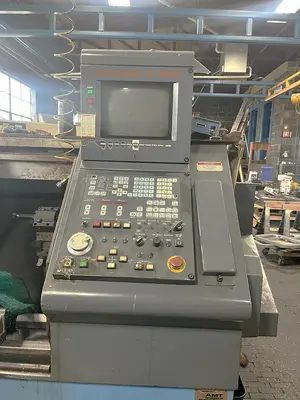

Machine Control: Mazatrol T-Plus Control
Chuck Size: 10" 3-Jaw Hydraulic
Maximum Swing: 17.32"
Maximum Cutting Diameter: 11.81"
Maximum Cutting Length: 17.5"
X-Axis Travel: 7.125"
Z-Axis Travel: 20.125"
Spindle Speeds: 40 - 4,000 RPM
Spindle Nose / Bore / Bar Capacity: A2-8" / 3.15" / 2.75"
Spindle Motor 30 Minutes/Continuous: 20 HP / 15 HP
Number of Turret Positions: 8 Station Turret
Rapid Traverse Rates X/Z: 1200 iPM / 1300 IPM
Tailstock Body Travel / Quill Travel: 18.11" / 5.12"
Tailstock Center: MT #4
Machine Dimensions LxWxH: 105" x 68.5" x 73.1"
Machine Weight: 9,370 lbs.
