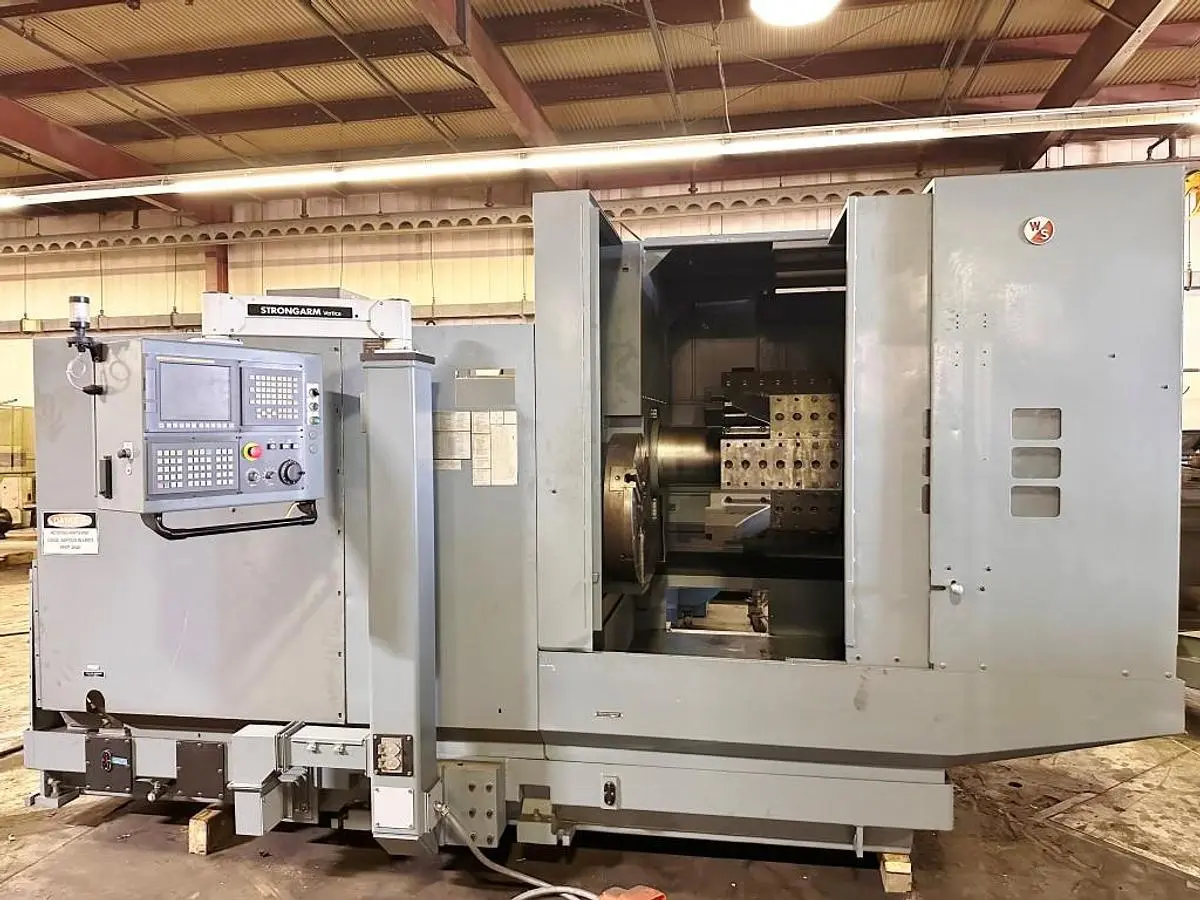

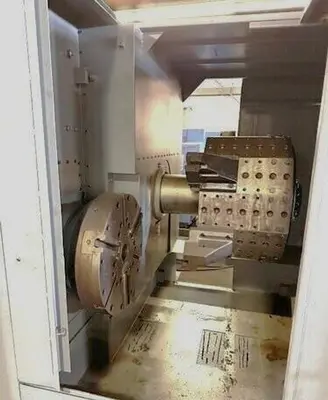

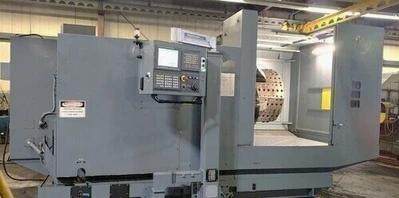

USED 2012 WARNER & SWASEY 3SC-24
Overview

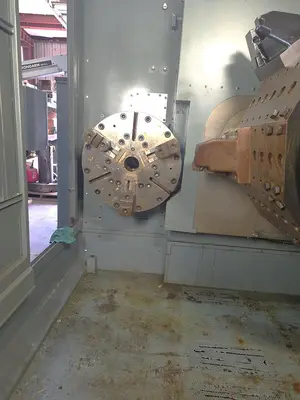

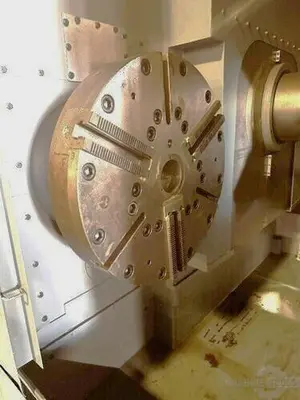

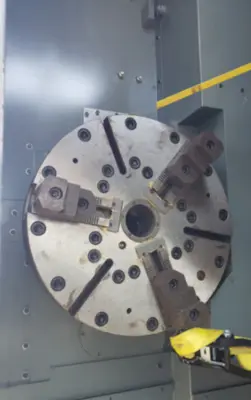

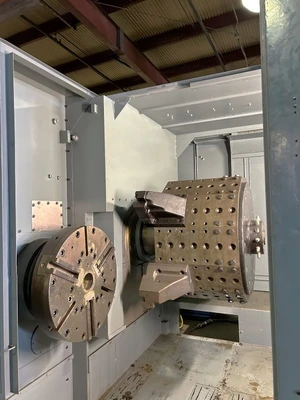

24" 3 Jaw Hydraulic Chuck
Chip Conveyor

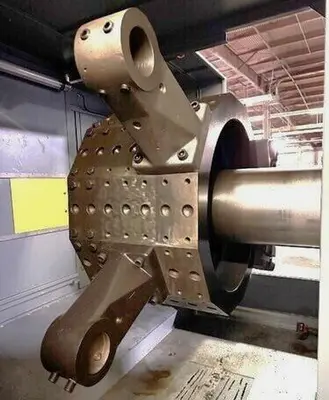

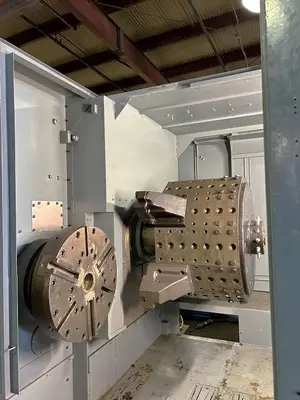

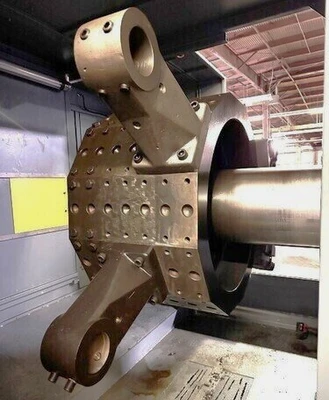

12 Station Indexable Turret
Coolant System with Pump
Heavy Duty Boxed Way Design
Splash Guarding
RS 232 Port Interface

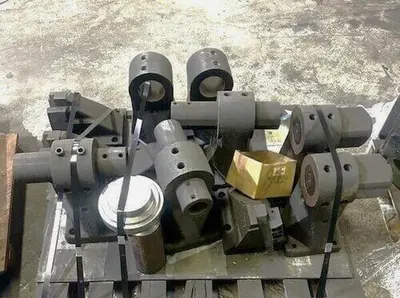

All Available Tool Holders

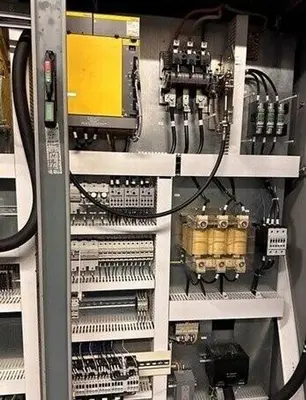

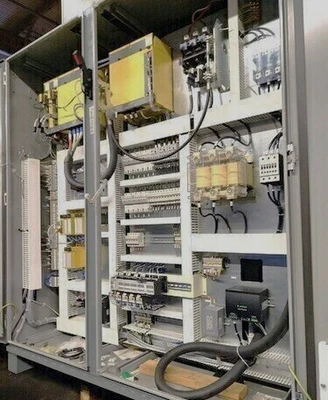

All Available Manuals, Backup, Wiring Diagrams
**Less than 100 hours of use since rebuild**
Specs

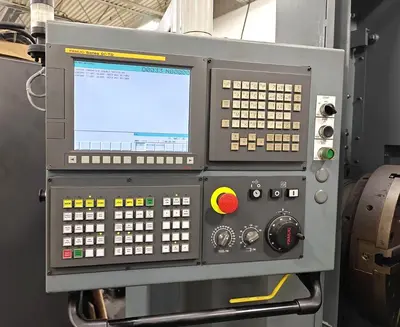

Control: Fanuc 0i-TD Series Control

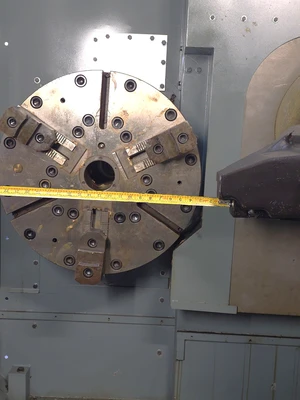

Chuck Size: 24" 3 Jaw Hydraulic Chuck
Maximum Swing Over Turret Bar: 39.875"
Maximum Swing Over Cross Slide: 26"
Maximum Turning Length: 27"
X-Axis Travel: 12.75"
Z-Axis Travel: 15"
Spindle Nose / Spindle Bore: A1-15" / 8.25"
Spindle Speed: 19 - 838 RPM

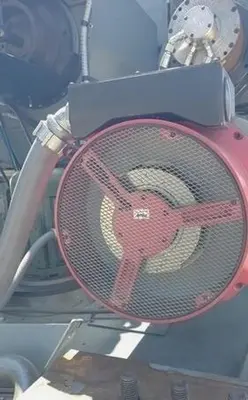

Spindle Motor: 75 HP
Number of Turret Positions: 12 Station Turret
OD Cutter: 1.5" Sq x 6"
Boring Bar Holder: 4"
Rapid Traverse Rates: 250 IPM
Machine Dimensions: 206" x 124"
Machine Weight: 32,500 lbs.
