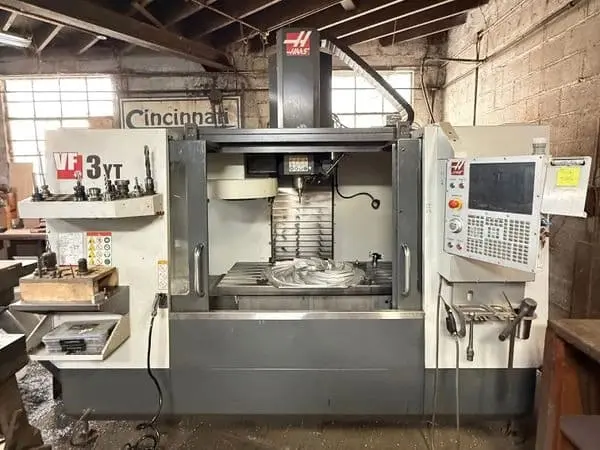

HAAS VF3YT CNC Mill
SPECIFICATIONS
X Axis Travel: 40″
Y Axis Travel: 26″
Z Axis Travel: 25″
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40
Tool Changer: 20 ATC
Table Size: 54″ x 25″
Weight: 16,500 LBS
Additional Specs Max Torque 90 ft-lbf
Max Cutting 500 ipm
Max Thrust X 2550 lbf
Max Thrust Y 4100 lbf
Max Thrust Z 4100 lbf
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
OPTIONS
Haas Next Gen CNC Control
Probe
Programmable Coolant
Chip Auger
Through Spindle Coolant Ready
Automatic Air Gun
Spindle Speed: 10,000 RPM
