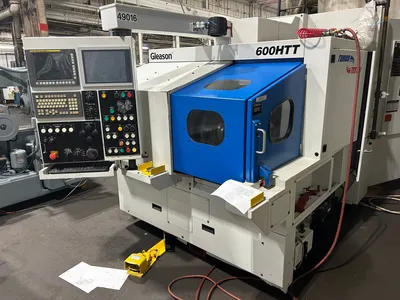

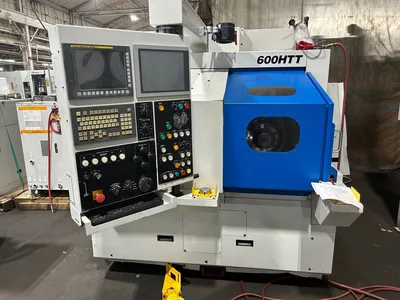

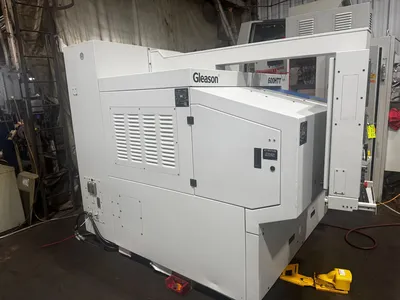

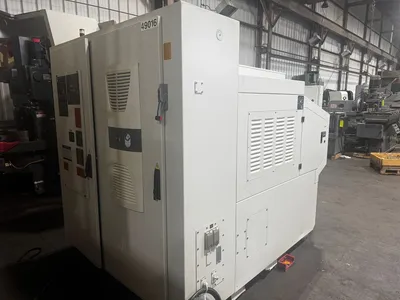

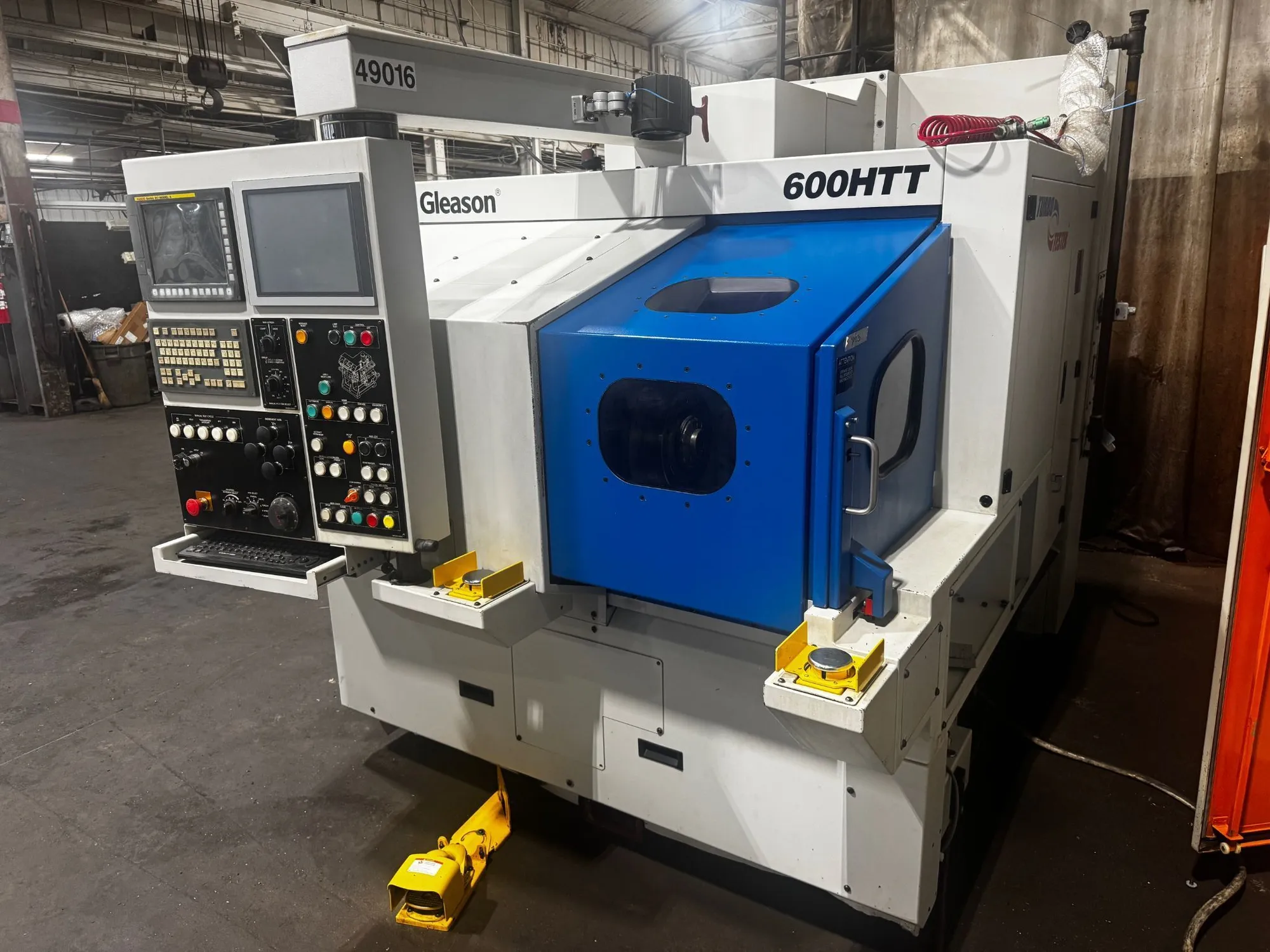

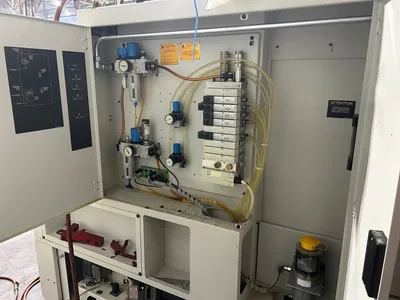

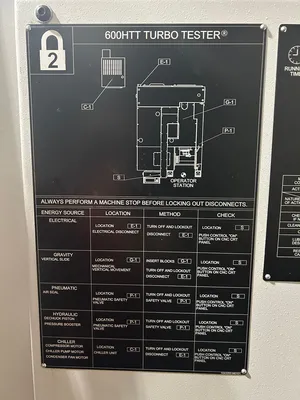

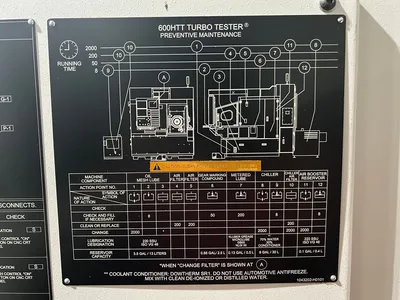

The Gleason 600HTT Turbo Tester is the industry standard for CNC-controlled roll testing of spiral bevel and hypoid gear sets. It is designed for automotive and truck applications, allowing users to perform contact pattern, single flank, and structure-borne noise measurements for both soft and hard parts.

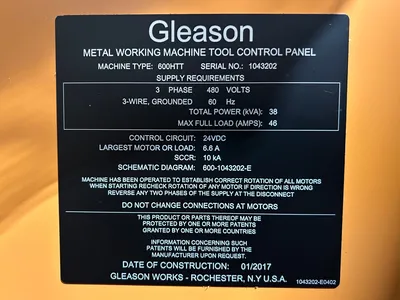

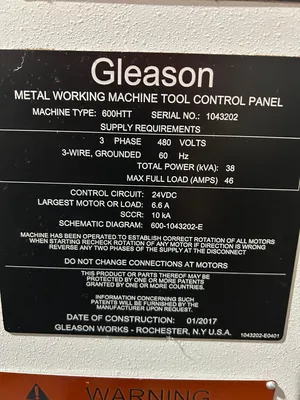

| Type | HYPOID | HYPOID |
| Maximum Workpiece Diameter | 600 mm | 23.622" |
| Control | CNC (31i) | CNC (31i) |
| Dimensions | 96" x 72" x 106" | 96" x 72" x 106" |
| Weight | 13,240# | 13,240# |
Specifications:
Maximum Gear Outside Diameter: 600 mm (23.6")
Maximum Pinion Outside Diameter: 254 mm (10.0")

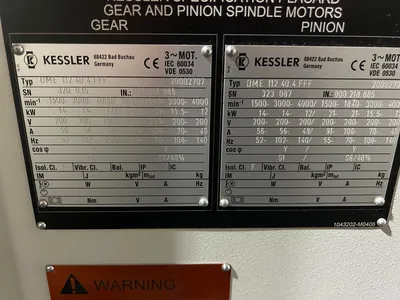

Maximum Pinion Drive Speed: 3000 RPM
Maximum Gear Drive Speed: 3000 RPM
Offset Range (Vertical): +/-76 mm (+-3.0")
Pinion Cone Range W/39T Pinion Spindle: 165 - 343 mm (6.5"-13.5")
Pinion Cone Range W/60T Pinion Spindle: 215 - 393 mm (8.5"-15.5")
Gear Cone Range: 89 - 267 mm (3.5"-10.5")
Testing Torque Load: 2 - 90 Nm / 15 to 800"-lb.
Pinion Spindle (Standard 39T Diameter): 99.2 mm (3.9")
Pinion Spindle (Optional 60T Diameter): 152 mm (6.0")
Gear Spindle Standard 39T Diameter: 99.2 mm (3.9")
Floor Space (Width x Length): 1,825 x 2,450 mm (72" x 96")
Height (To stack light): 2,700 mm (106")
Weight: 6,005 kg (13,240 Lbs.)

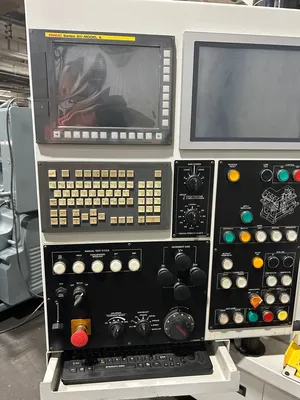

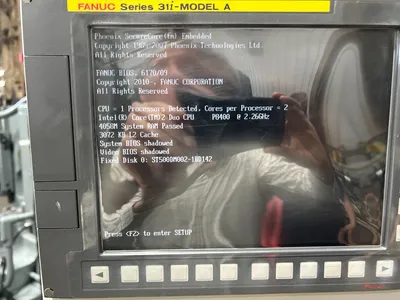

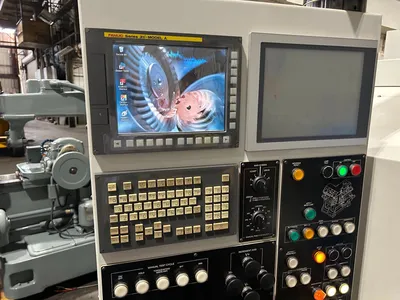

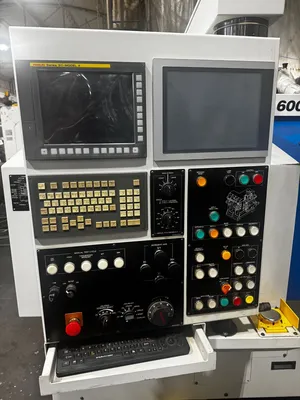

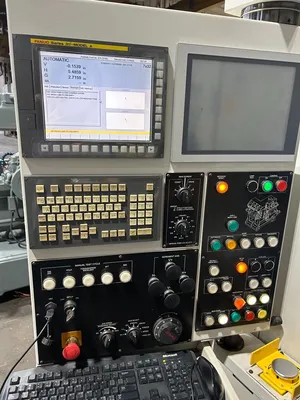

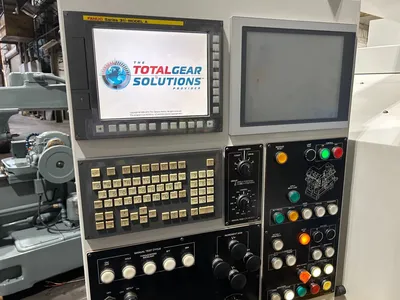

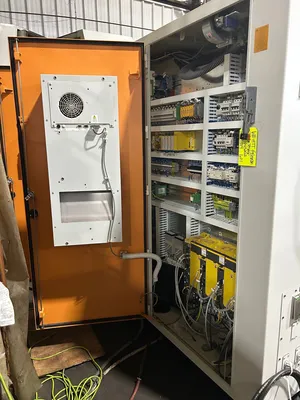

Fanuc 31i-A CNC Control
Single Flank Testing (SFT)
Manual Roll Checks
V&H Checks
