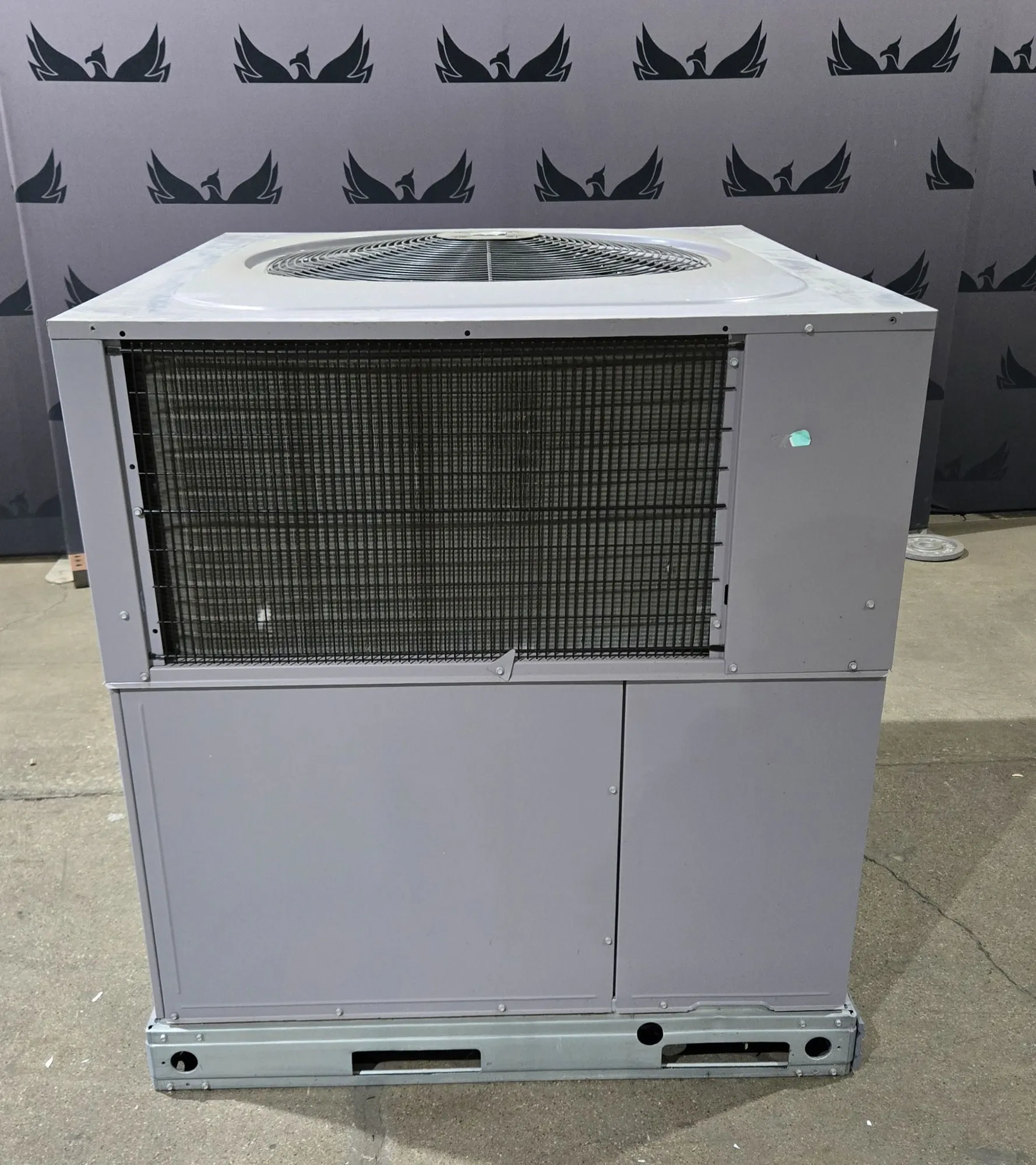

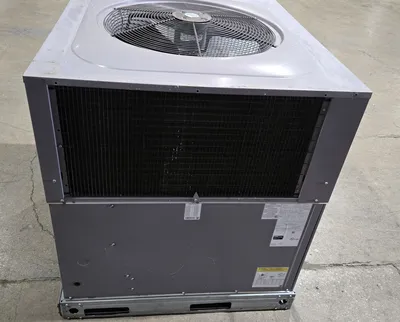

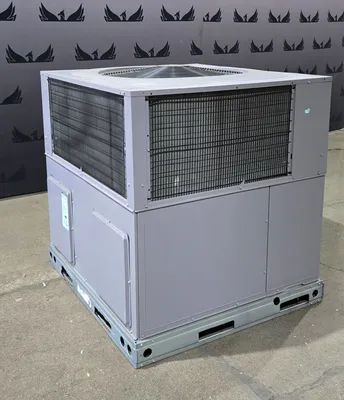

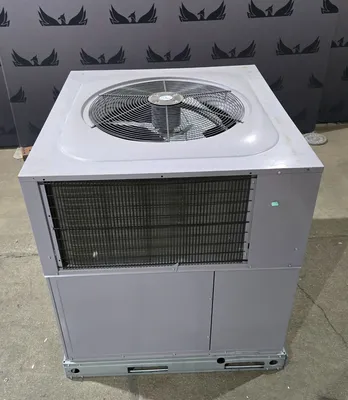

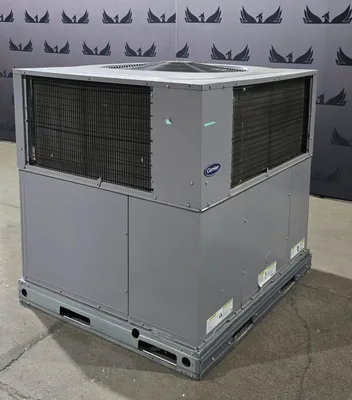

USED 2022 CARRIER 50VT-C36-60

This listing is for a USED Carrier 50VT-C36-60. This packaged rooftop unit provides conditioned air using a self-contained refrigeration system with R‑410A refrigerant, combining compressor, condenser, and air handling components within a single enclosure for commercial HVAC applications.

Manufacturer: Carrier Corporation
Model: 50VT-C36-60
Condition: USED
YOM: 2022
Serial Number: 0322E49346

Equipment Type: Packaged Rooftop HVAC Unit
Cooling Capacity: 36,000 BTU/hr (3 Ton Class)
Heating Type: Electric Heat Compatible (Accessory-Based)

Refrigerant Type: R-410A
Factory Refrigerant Charge: 8.55 lbs (Primary Circuit)
Additional Charge: 4.01 lbs (Secondary/Total Circuit Reference)

Compressor Quantity: 1
Compressor RLA: 5.8 A
Compressor LRA: 38 A

Outdoor Fan Motor Quantity: 1
Outdoor Fan Motor HP: 0.5 HP
Outdoor Fan FLA: 1.5 A

Supply Air Configuration: Packaged Internal Blower System

Nominal Voltage: 460 VAC
Phase: 3 Phase
Frequency: 60 Hz

Minimum Circuit Ampacity (MCA): 11 A
Maximum Overcurrent Protection: 15 A

Design Pressure High Side: 450 PSIG
Design Pressure Low Side: 150 PSIG
Test Pressure High Side: 724 PSIG
Test Pressure Low Side: 310 PSIG

Cooling Capacity: 34,200 BTU/hr
Heating Capacity: 34,400 BTU/hr (with electric heat option)

Cabinet Type: Outdoor Rated Packaged Unit
Airflow Configuration: Horizontal Discharge with Top Condenser

Function: Self-contained rooftop HVAC system providing cooling and optional electric heating
