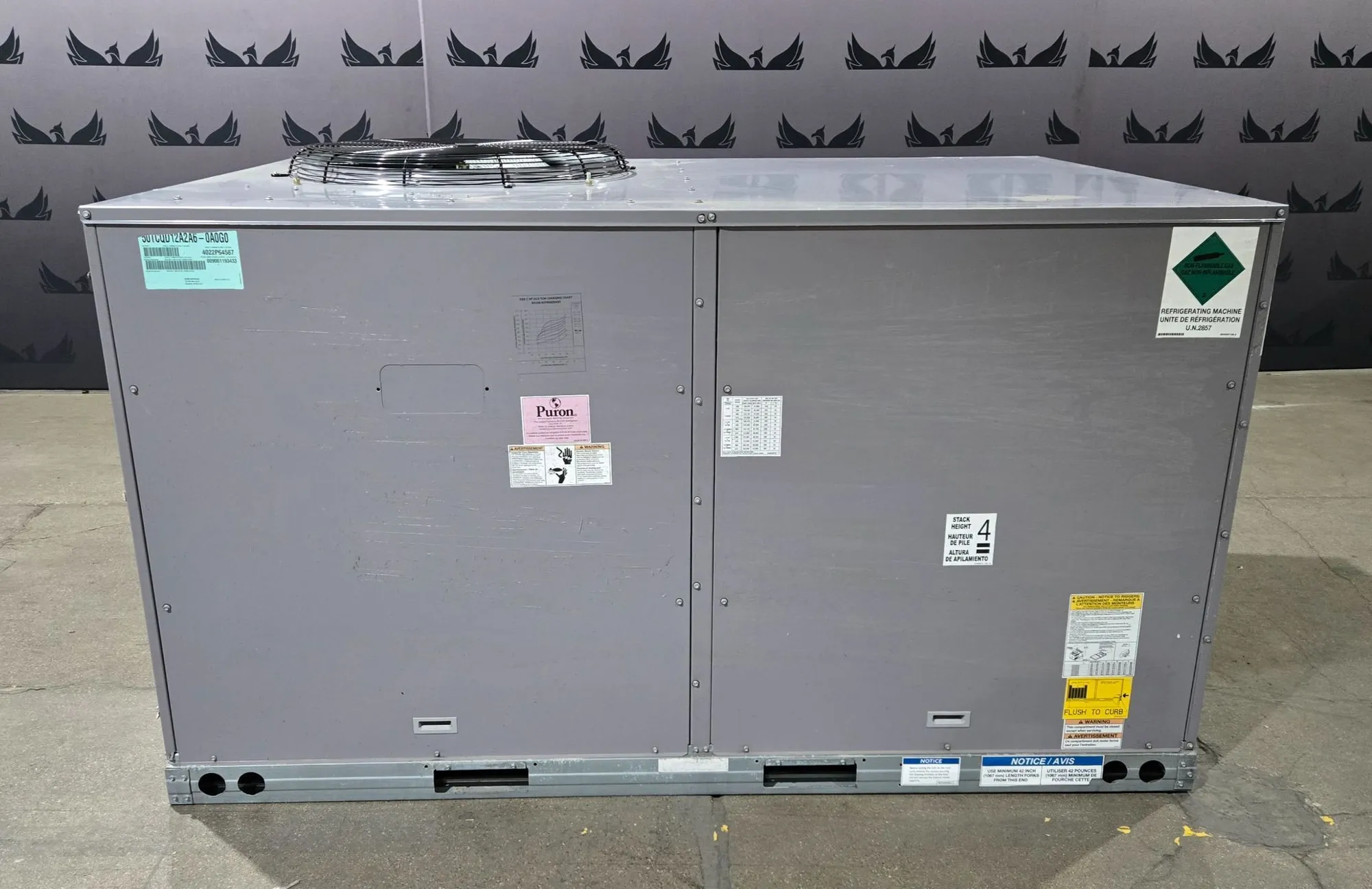

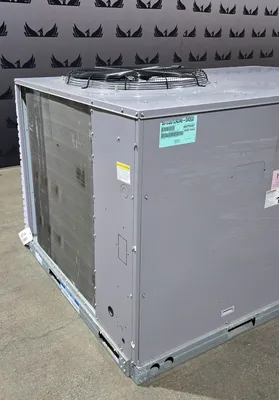

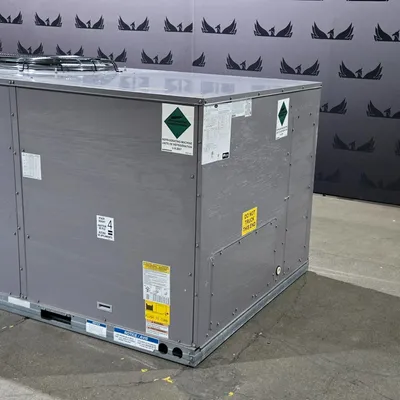

USED 2022 CARRIER 50TCQD12A2A6A0A0G0

This listing is for a USED Carrier WeatherMaker 50TCQD12A2A6A0A0G0. This packaged rooftop unit delivers conditioned air using a multi-compressor refrigeration system with integrated condenser and air handling sections, supporting commercial HVAC installations requiring a self-contained cooling solution.

Manufacturer: Carrier Corporation
Model: 50TCQD12A2A6A0A0G0
Series: WeatherMaker
Condition: USED
YOM: n/a
Serial Number: 4022P65487

Equipment Type: Packaged Rooftop HVAC Unit
Cooling Capacity: 116,000 BTU/hr
Cooling Capacity (kW): 34.2
Cooling Capacity (Tons): ~9.7 Ton

Refrigeration Type: Mechanical Vapor Compression
Refrigerant Type: R-401A

Compressor Quantity: 2
Compressor Voltage: 460 V
Compressor Phase: 3 Phase
Compressor RLA: 7.7–8.5 A (per circuit)
Compressor LRA: 66 A

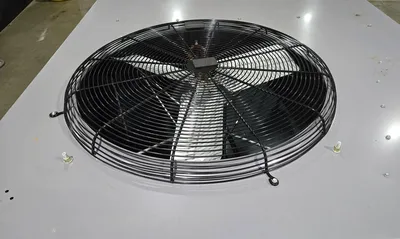

Outdoor Fan Motor Quantity: 1
Outdoor Fan Voltage: 460 V
Outdoor Fan FLA: 3.1 A

Evaporator / Supply Fan Motor Quantity: 1
Evaporator Motor Voltage: 460 V
Evaporator Motor FLA: 4.9 A

Nominal Voltage: 460 VAC
Phase: 3 Phase
Frequency: 60 Hz

Minimum Circuit Ampacity (MCA): 41.4 A
Maximum Overcurrent Protection: 70 A
Short Circuit Rating: 5 kA RMS Symmetrical

Unit Weight: 550 lbs
Shipping Weight: 310.6 lbs

IEER: 11
COP: 3.4

Airflow Configuration: Top Discharge Condenser / Ducted Supply Air
Cabinet Construction: Packaged Outdoor Steel Enclosure

Function: Self-contained rooftop HVAC system providing commercial-scale cooling
