New | Build-to-Order

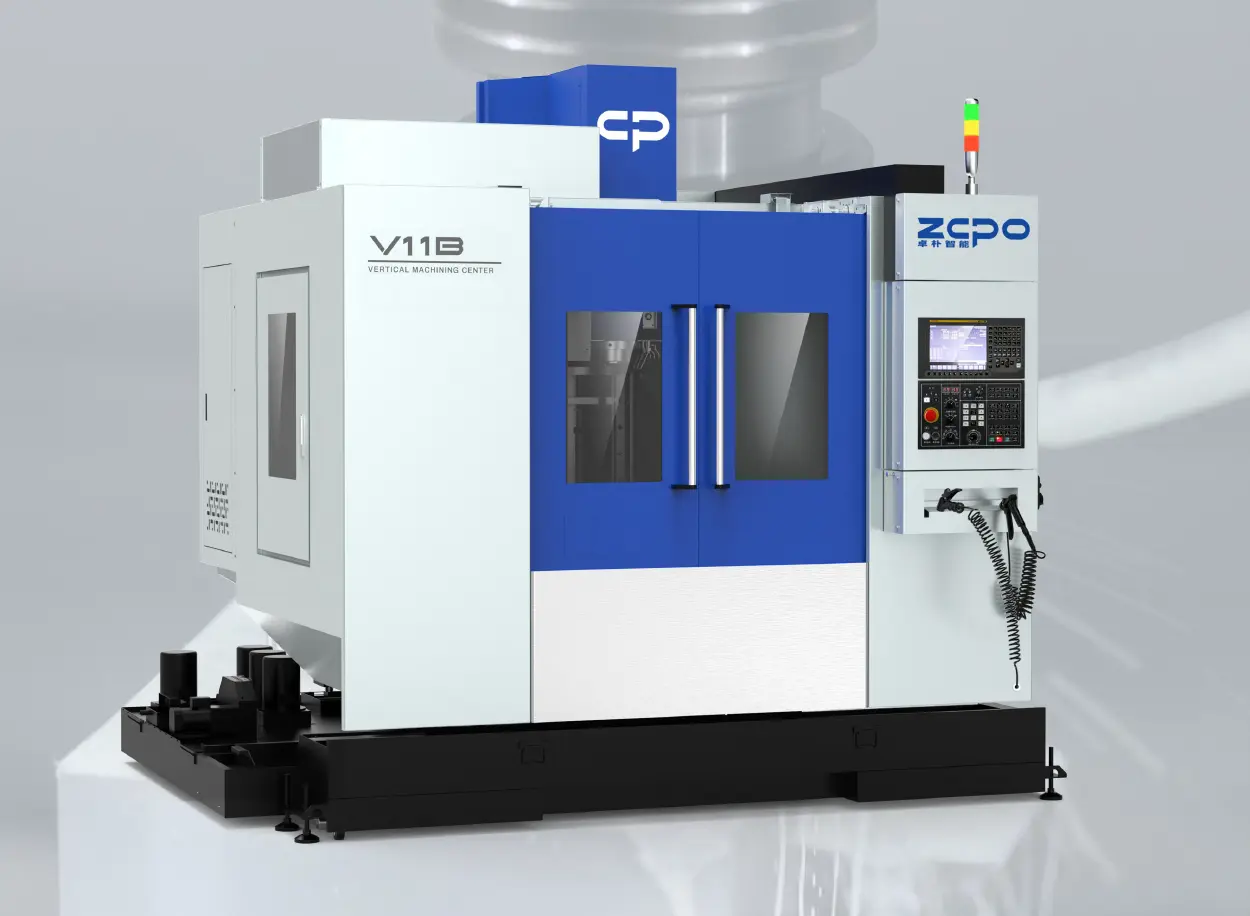

NEW ZOPO VP-11B

Ontario, Canada
487Listings|8Followers
Overview
Vertical Machining Centers

The ZOPO V11B Vertical Machining Center is a high-performance machining solution designed for manufacturers requiring precision, reliability, and productivity across a wide range of applications. Built with a rigid machine structure, high-speed direct-drive spindle technology, and premium linear guideways, the V11B delivers excellent cutting performance for aerospace, automotive, medical, mold & die, energy, and general machining industries.

Featuring generous X, Y, and Z travels combined with a large worktable capacity, the V11B is capable of handling a wide variety of workpieces while maintaining exceptional accuracy and surface finish. Its robust machine construction, roller-type linear guideways, and precision spindle assembly provide the stability needed for demanding machining operations ranging from roughing to high-precision finishing.

The machine is equipped with a high-speed CAT40 direct-drive spindle, a high-capacity automatic tool changer, and a modern CNC control system to maximize productivity while reducing setup and cycle times. Designed for long-term reliability and ease of operation, the V11B offers an ideal balance of performance, accuracy, and value for modern manufacturing environments.

Specs
X-Axis Travel
1,100 mm
43.307"
Y-Axis Travel
610 mm
24.016"
Z-Axis Travel
630 mm
24.803"
Table Size-X
1,300 mm
51.181"
Table Size-Y
610 mm
24.016"
Table Load Capacity
900 kg
1,984.2 lb
Spindle Center to Column
667 mm
26.26"
Spindle Speed
12,000 RPM
12,000 RPM
Spindle Taper
CAT40
CAT40
X/Y Axis Rapid Feed Rate
36 m/min.
1,417.3 in/min.
Z-Axis Rapid Feed Rate
32 m/min.
1,259.8 in/min.
Cutting Feed Rate
12,000 mm/sec.
28,346.4 in/min.
ATC
30
30
Max. Tool Length
300 mm
11.811"
Max. Tool Weight
8 kg
17.6 lb
CN Control
Mitsubishi M80
Mitsubishi M80
Equipped With

MITSUBISHI M80 WITH 15” LCD SCREEN
12.000 RPM DIRECT DRIVEN SPINDLE, 11/15KW, CAT40
30 TOOLS ATC TOOL MAGAZINE
30 BAR COOLANT THROUGH SPINDLE SYSTEM
X/Y/Z AXIS ROLLER TYPE LINEAR GUIDEWAY
CHAIN TYPE CHIP CONVEYOR
4TH AXIS PREPARATION
OIL SKIMMER
FRONT DOOR SAFETY
DOOR INTERLOCK AND SIDE DOOR TRIANGULAR BOLT
WATER GUN
INNER CHIP FLUSHING
AIR GUN
M30 POWER OFF
AIR BLAST OF SPINDLE
CUTTING COOLANT SYSTEM
CUTTING AIR SYSTEM
OIL COOLANT
OIL WATER SEPARATION
COOLANT OIL TANK
AUTO LUBRICATION SYSTEM
COOLANT GUN
LEVELING BOLTS& BLOCKS
TOOLS AND TOOL BOX
TELESCOPIC GUARDS FOR 3 AXIS
FULLY ENCLOSED SPLASH GUARD
HEAT EXCHANGER
LED WORKING LIGHT
LED WARNING LIGHT
