USED 2022 AAON RN-020-3-0-E60A-000

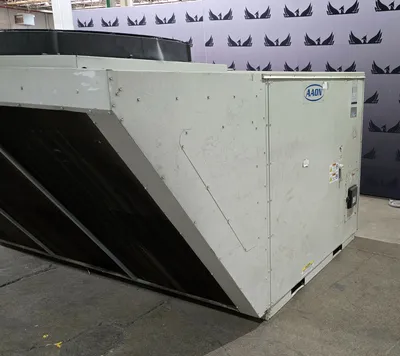

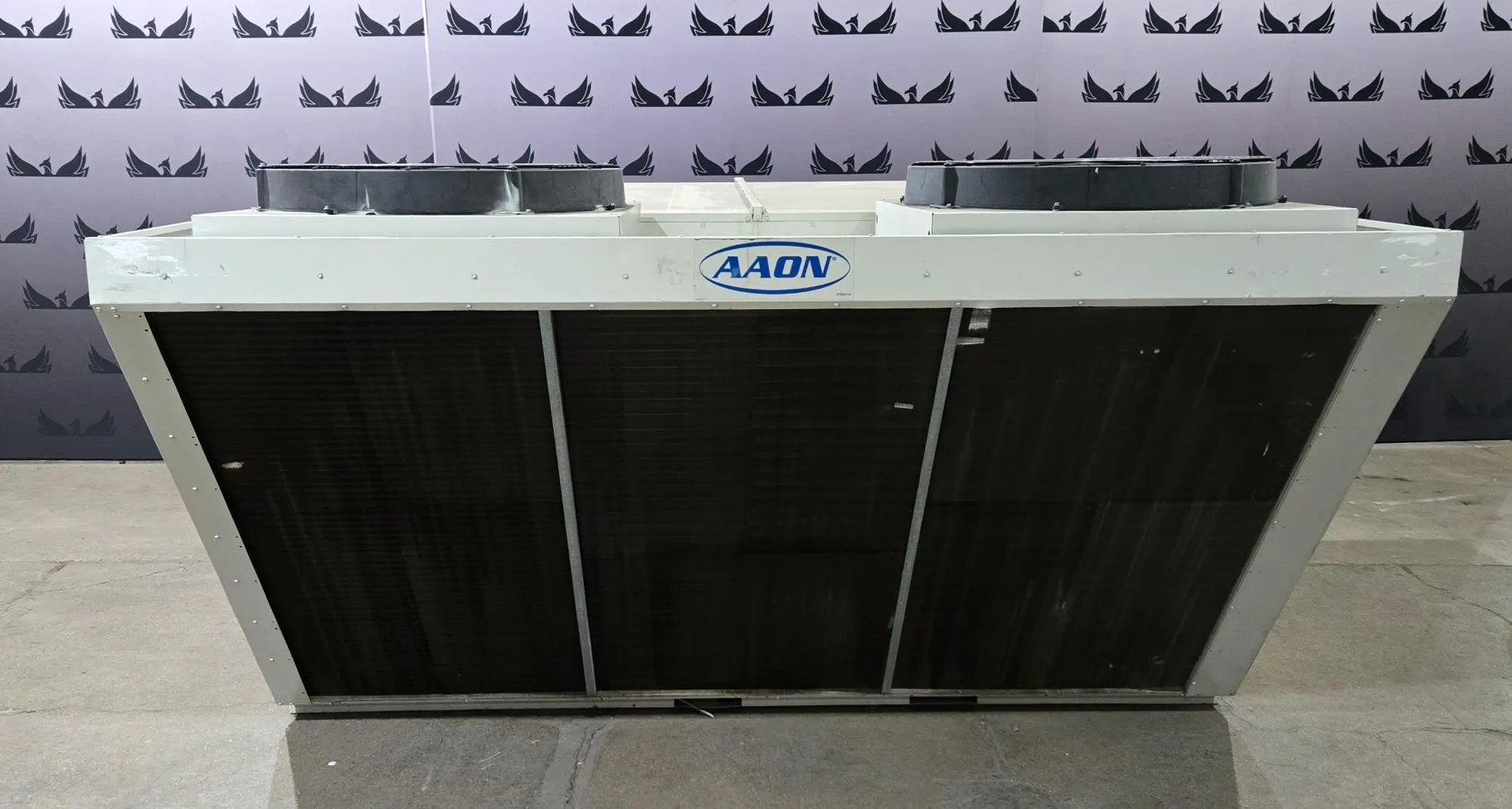

This listing is for a USED AAON RN-020-3-0-E60A-000. This packaged rooftop unit delivers air conditioning using a dual-compressor refrigeration system with R‑410A, integrating condenser and air handling sections within a single cabinet for commercial climate control applications.

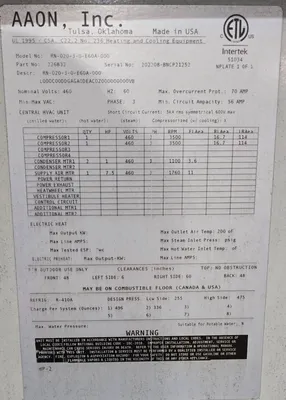

Manufacturer: AAON, Inc.
Model: RN-020-3-0-E60A-000
Condition: USED
YOM: 2022

Equipment Type: Packaged Rooftop HVAC Unit
Cooling Capacity Class: 20 Ton

Refrigerant Type: R-410A
Refrigerant Charge Circuit 1: 496 oz
Refrigerant Charge Circuit 2: 336 oz

Cooling Configuration: Dual Circuit
Compressor Quantity: 2
Compressor Motor Speed: 3500 RPM
Compressor RLA: 16.7 A (each)
Compressor LRA: 114 A

Condenser Fan Quantity: 2
Condenser Motor Power: 1 HP each
Condenser Motor Speed: 1100 RPM
Condenser Motor FLA: 3.6 A

Supply Air Motor Quantity: 1
Supply Motor Power: 7.5 HP
Supply Motor Speed: 1760 RPM
Supply Motor FLA: 11 A

Nominal Voltage: 460 VAC
Phase: 3 Phase
Frequency: 60 Hz

Minimum Circuit Ampacity (MCA): 56 A
Maximum Overcurrent Protection: 70 A
Short Circuit Rating: 5000 A symmetrical

Design Pressure Low Side: 255 PSIG
Design Pressure High Side: 475 PSIG

Airflow Configuration: Top Discharge Condenser / Ducted Supply Air Section
Cabinet Construction: Heavy Gauge Steel Packaged Enclosure

Function: Packaged rooftop air conditioning unit providing large-scale building cooling
