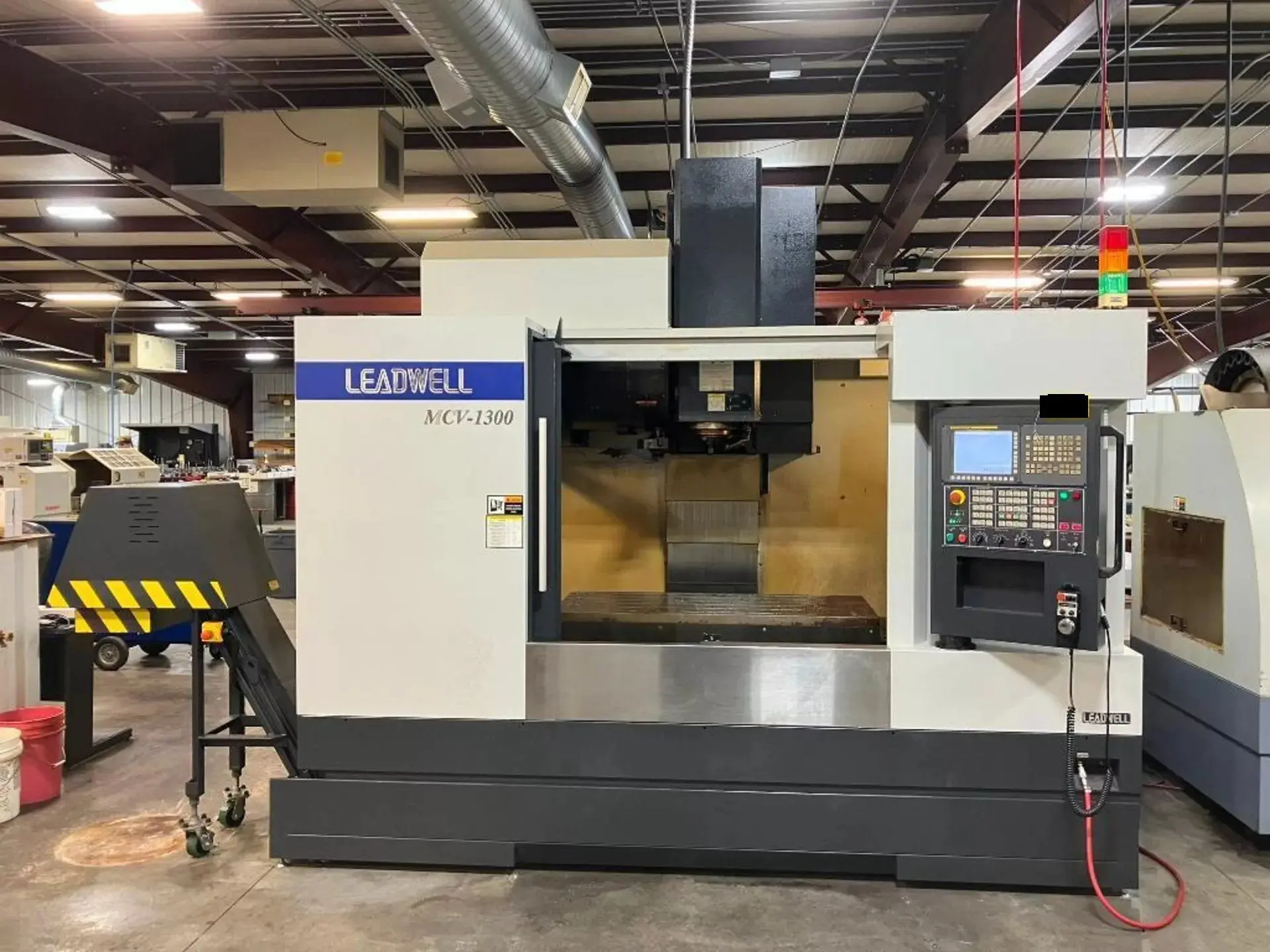

Vertical Machining Center, used. Specs: X 51.8", Y 25", Z 24", 34 HP, 10,000 RPM, 32 ATC, CAT 50, with FANUC 0iMF CNC, remote jog, box ways, coolant tank, spindle chiller, chip conveyor. 3-axis, rapid traverse 787 IPM.
| X | 51.8" | 1,315.7 mm |
| Y | 25" | 635 mm |
| Z | 24" | 609.6 mm |
| Power | 34 hp | 25.4 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 32 | 32 |
| Taper | CAT 50 | CAT 50 |
| Table-W | 23.9" | 607.06 mm |
| Table-L | 55.8" | 1,417.3 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 140" X 141" X 113" TALL | 140" X 141" X 113" TALL |
| Weight | 18,500 LBS | 18,500 LBS |
SPINDLE NOSE TO TABLE TOP ............... 5.9" TO 29.9"
DISTANCE FROM SPINDLE CENTER TO COLUMN .. 25"
MAX TABLE LOAD .......................... 3,000 LBS
RAPID TRAVERSE RATES (X & Y/ Z) ......... 787 IPM
* FANUC MODEL: 0iMF CNC CONTROL w/MANUAL GUIDE i
* REMOTE JOG HANDLE (MPG)
* BOX WAYS ON ALL AXES
* TWO SPEED GEARBOX
* COOLANT TANK AND CHIP PAN, FLOOD COOLANT
* SPINDLE OIL CHILLER
* CHIP CONVEYOR
* 32 TOOL CAPACITY SIDEMOUNT CHANGER
* 34 HORSE POWER SPINDLE MOTOR
