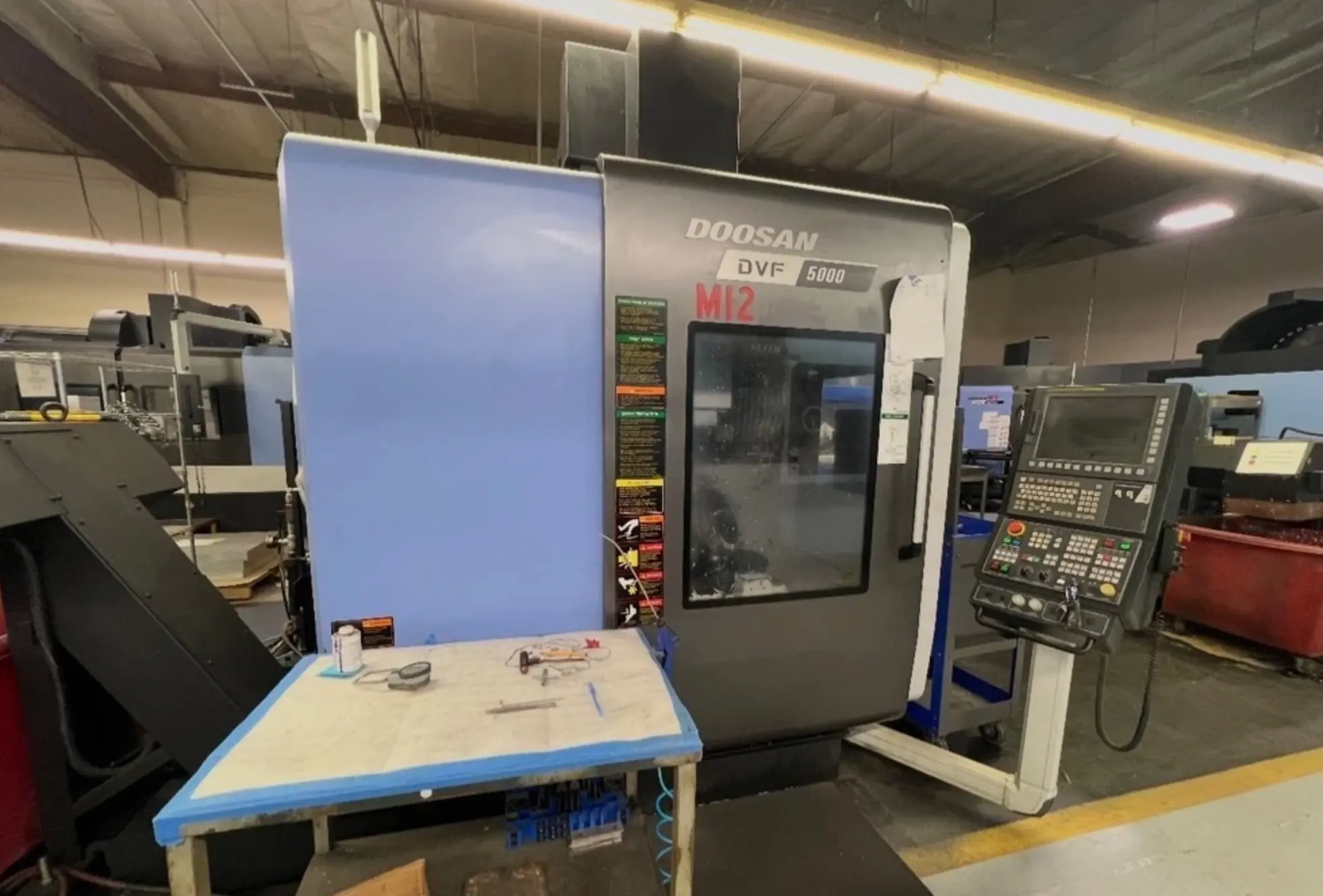

Used 5-axis vertical machining center with Renishaw probing and spindle chiller. Features 24.6" X, 17.7" Y, and 15.7" Z axis travel, 42 hp, 18,000 RPM, CAT 40 taper, and 60 ATC. Includes WIPS and 5th axis trunnion table.
| X | 24.6" | 624.84 mm |
| Y | 17.7" | 449.58 mm |
| Z | 15.7" | 398.78 mm |
| # Axis | 5 | 5 |
| Power | 42 hp | 31.3 kW |
| RPM | 18,000 RPM | 18,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT 40 | CAT 40 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Weight | 16,534 Lbs | 16,534 Lbs |
Rapid Rate X/Y/Z-Axis 1575 IPM
Travel Distance B-Axis +110°/-30°
Travel Distance C-Axis 360°
Max Load 882 Lbs
Renishaw Probing
Spindle Chiller
Wireless Intuitive Probing System (WIPS) - Renishaw
Chip Conveyor
5th Axis Trunnion Table
