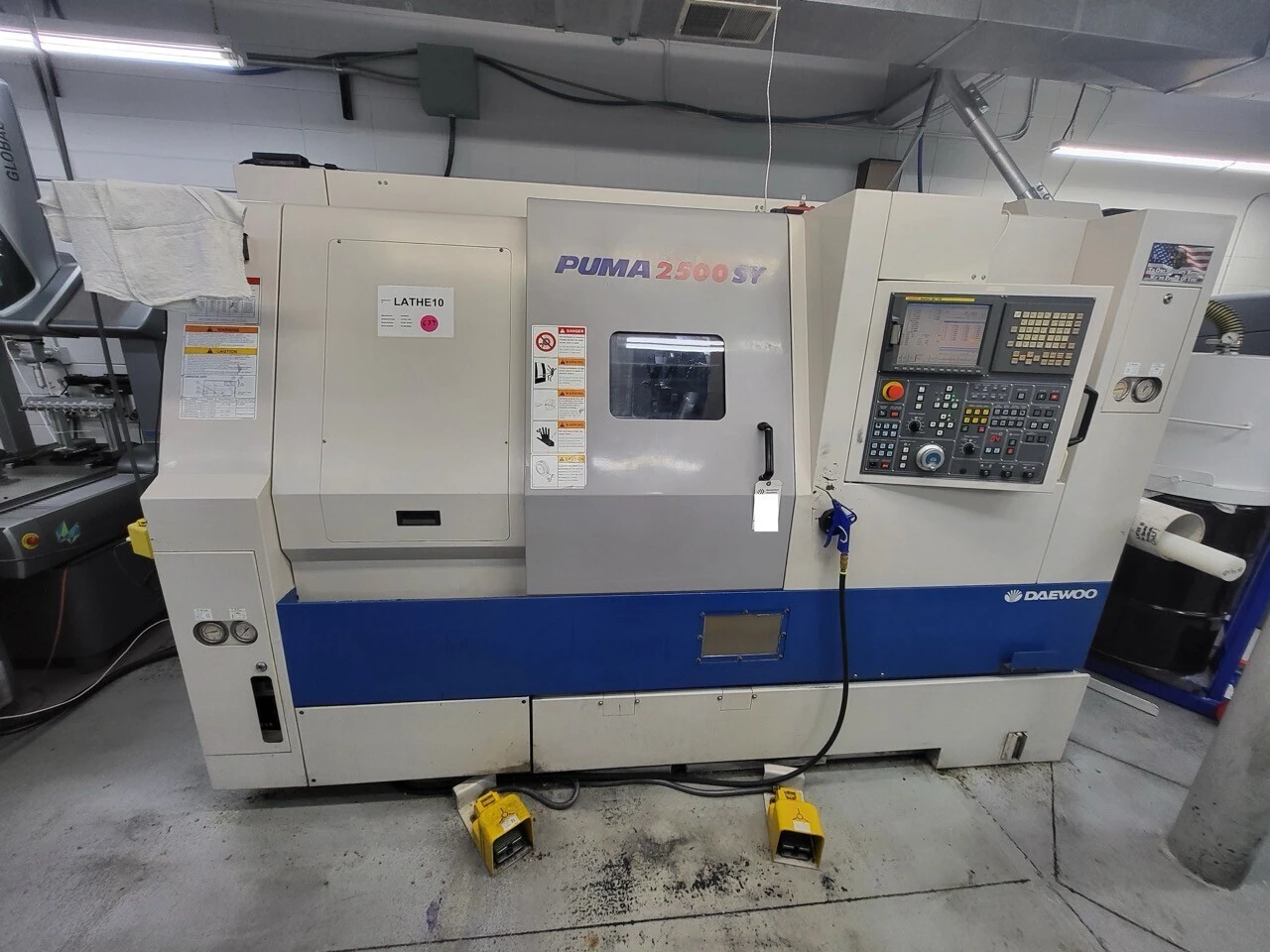

Used CNC Lathe: 16.92" swing, 39.37" machining length, 10" chuck, 3" bar capacity, 35 hp, 3,500 RPM max. Equipped with Fanuc 18i-TB CNC control, collet chucks, sub spindle, and live tooling. No tailstock.
| Swing | 16.92" | 429.77 mm |
| Machining Length | 39.37" | 1,000 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 13.78" | 350.01 mm |
| Tailstock | No | No |
| Sub Spindle | Yes | Yes |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 154″ X 84″ | 154″ X 84″ |
| Weight | 10,800 | 10,800 |
Fanuc 18i-TB CNC Control
Collet Chucks
Sub Spindle
Live Tooling
Machine only ran plastic
