Haas Wireless Intuitive Probing Package
2 Speed Geared Transmission
Auger Style Chip Conveyor
Programmable Coolant Nozzle
High Intensity Lighting
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Visual Quick Code Programming
Remote Jog Handle
1 MB Program Memory
Rigid Tapping
USB Port Interface
RS 232 Port Interface Complete Coolant System with Tank & Pump
Memory Key Lock Switch
15" Color LCD Monitor
Early Power Failure Detection Module
Wired 195-260V Electrics

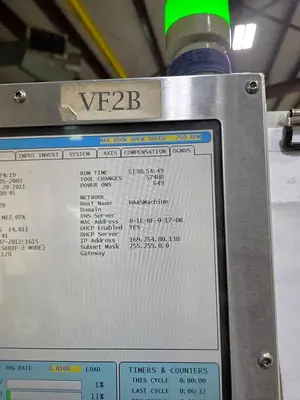

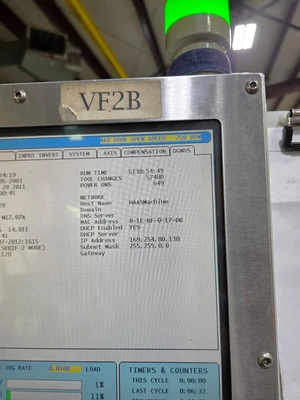

**Machine Power On Hours (Run Hours) Show 5,138, not believed to be accurate due to a board change**

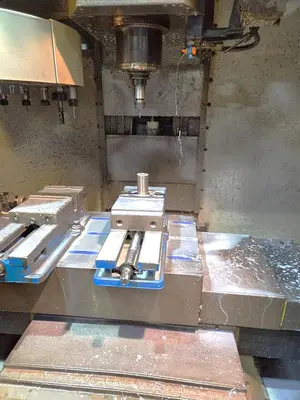

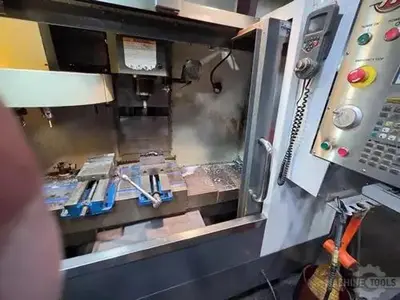

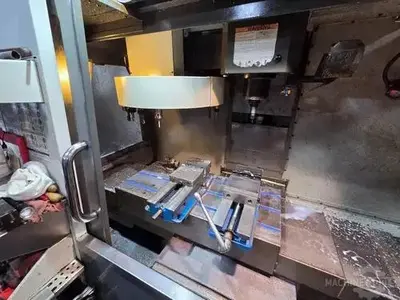

The 2010 Haas VF2B is a reliable used CNC Vertical Machining Center, ideal for precise 3-axis milling operations. Equipped with a Haas CNC Control, it features a 30" x 16" x 20" travel along the X, Y, and Z axes, providing ample capacity for various machining tasks. The machine includes a 36" x 14" table that can support up to 1,000 lbs, making it suitable for handling a range of workpieces.
This model boasts a 7,500 RPM spindle speed with a CAT 40 spindle taper and a powerful 30 HP spindle motor, ensuring efficient machining performance. The spindle's distance to the table top ranges from 4" to 24", allowing for versatility in tooling setups. An umbrella-style 20-position automatic tool changer facilitates quick tool changes, enhancing productivity.
Additional features include a 2-speed gearbox, a chip auger for efficient chip management, and a Haas probing package for precise measurement and setup. The remote jog handle provides convenient operator control. With machine dimensions of 88" x 92.5" x 104" and a total weight of 8,000 lbs, this VF2B fulfills the demands of high-performance machining with reliability and efficiency.
Control: Haas CNC Control
Table Size: 36" x 14"
Maximum Table Load: 1,000 lbs
X-Axis Travel: 30"
Y-Axis Travel: 16"
Z-Axis Travel: 20"
Spindle Speed: 7,500 RPM
Spindle Taper: CAT 40
Spindle Motor: 30 HP
Tool Magazine Capacity: 20 Position Umbrella Style ATC
Rapid Traverse Rates: 1,000 IPM
Distance Spindle Nose to Table Top: 4" - 24"
Maximum Tool Diameter / Length / Weight: 3.5"/ NA / 12 lbs
Machine Dimensions LxWxH: 88"x92.5"x96"
Machine Weight: 8,000 lbs
