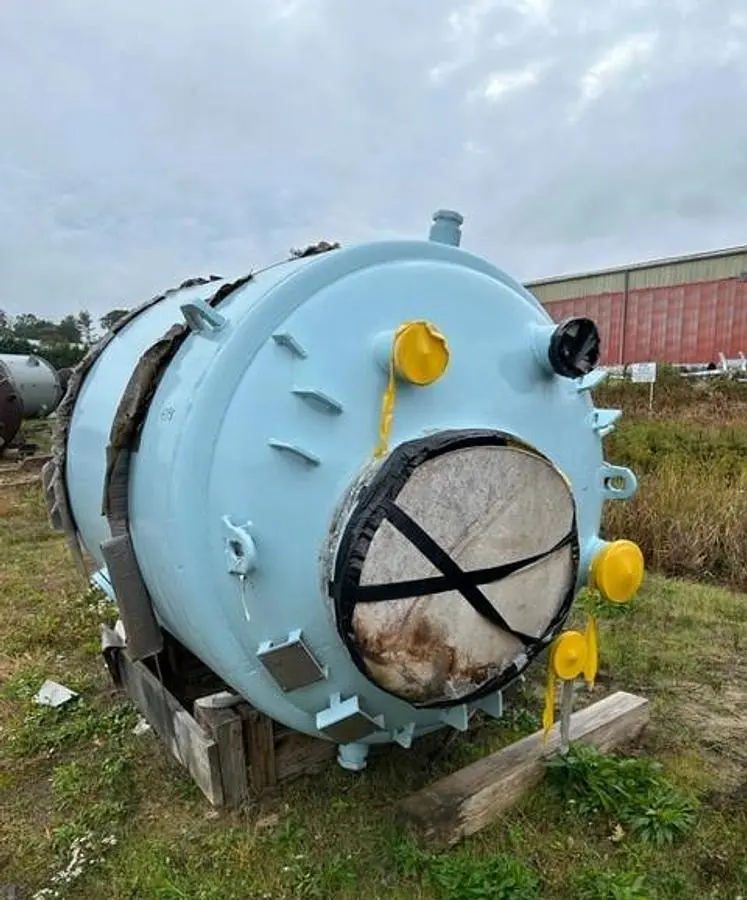

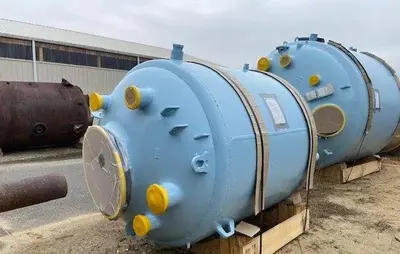

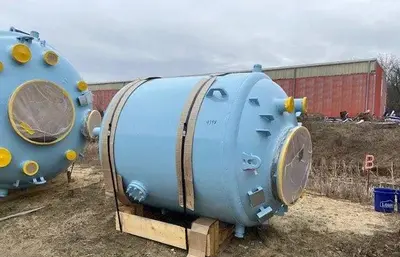

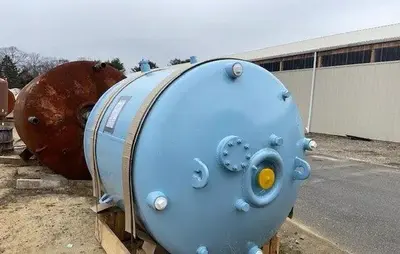

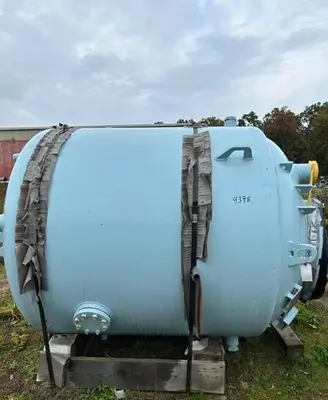

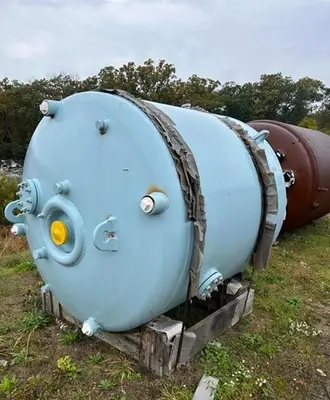

USED 1988 DE DIETRICH REACTOR BODY

De Dietrich Unused/reglassed approximately 1,000 gallon glass lined reactor body . Reactor features glass lined internal surfaces for corrosion resistant processing applications in chemical, pharmaceutical, and specialty manufacturing environments. Vessel is rated for 100 PSI internal pressure/full vacuum at 400°F with jacket rated for 90 PSI at 400°F. Unit was reglassed by GMM Pfaudler US Inc. in 2021 and includes updated reglass certification. Reactor body features multiple flanged and nozzled process connections, large front manway access opening, jacketed shell construction, lifting lugs, and dished heads. National Board number 4598. Suitable for batch processing, blending, reaction, crystallization, and high-purity process applications requiring glass lined corrosion protection and pressure-rated operation. Vessel is offered as a reactor body only without agitator, drive assembly, or support frame installed.

Stock Number: 5991817
Manufacturer: De Dietrich
Model: Reactor Body
Year: 1988
Serial Number: 3392
Gallons: 1,000 (approx.)
Materials of Construction: Glass Lined Steel
Head Type: Dished Heads
Openings: Multiple Flanged and Nozzled Connections
Access Opening: Front Manway
Reglassed: GMM Pfaudler US Inc. 2021
Vessel Type: Jacketed Reactor Body
Basis: As-is, Where-is
