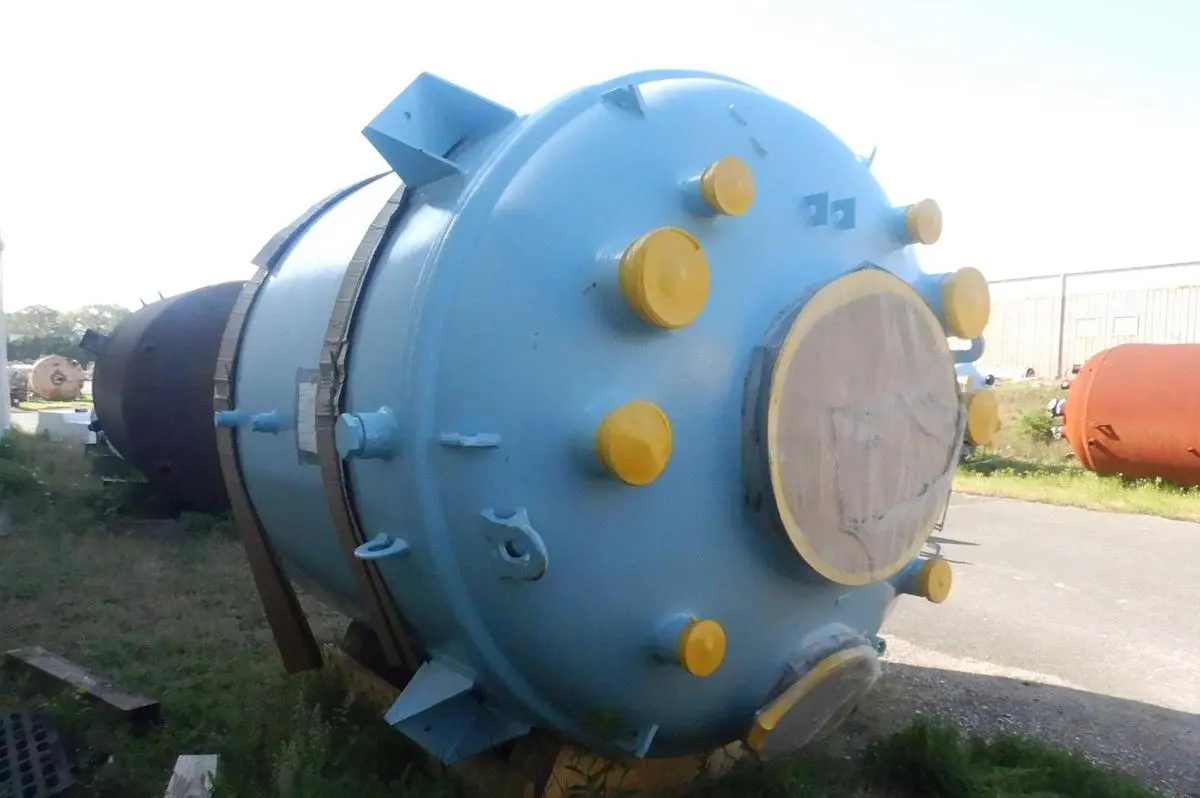

USED 1987 DE DIETRICH 1-131A

De Dietrich reglassed approximately 3,000 gallon glass lined reactor body . Vessel features glass lined internal surfaces designed for corrosion resistant chemical processing applications. Reactor is rated for 100 PSI internal pressure/full vacuum at 450°F with jacket rated for 90 PSI at 450°F. Unit was reglassed by GMM Pfaudler US Inc. in December 2023. Reactor includes multiple flanged and nozzled process connections, large front manway, jacketed shell construction, and heavy-duty support lugs. National Board number 4229. Nameplate indicates ASME construction with National Board registration. Suitable for pharmaceutical, specialty chemical, resin, adhesive, and high-purity process applications requiring glass lined corrosion resistance and pressure-rated operation. Vessel is currently configured as a bare reactor body without agitator drive assembly or support structure shown installed.

Stock Number: 5991816
Manufacturer: De Dietrich
Model: 1-131A
Year: 1987
Serial Number: 33567
Gallons: 3,000 (approx.)
Materials of Construction: Glass Lined Steel
Head Type: Dished Heads
Openings: Multiple Flanged and Nozzled Connections
Access Opening: Large Front Manway
Reglassed: GMM Pfaudler US Inc. December 2023
Basis: As-is, Where-is
