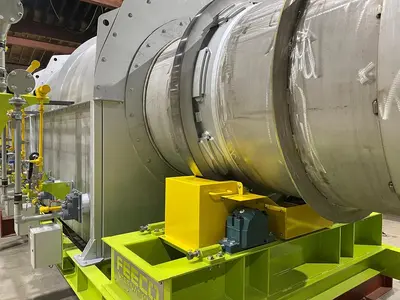

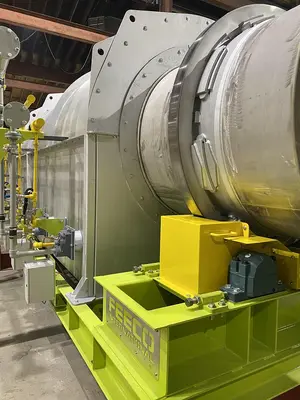

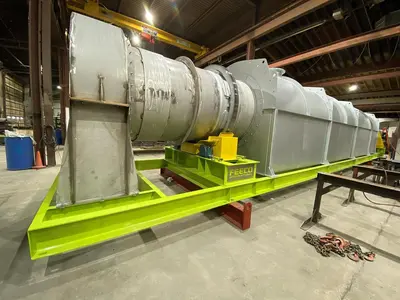

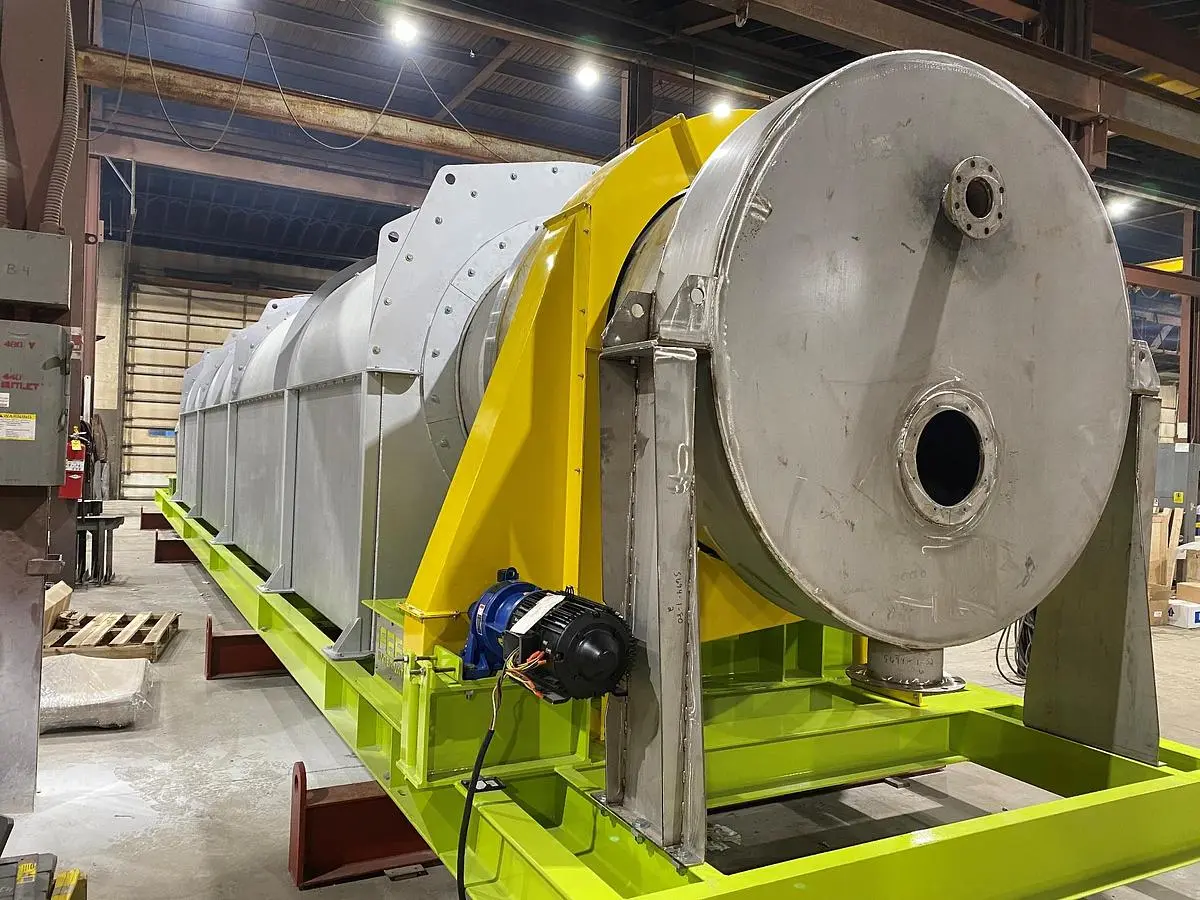

USED 2021 FEECO INTERNATIONAL INDIRECT ROTARY KILN SYSTEM
Overview
Description

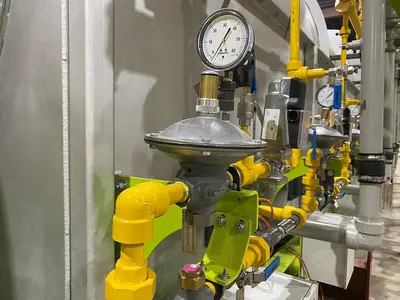

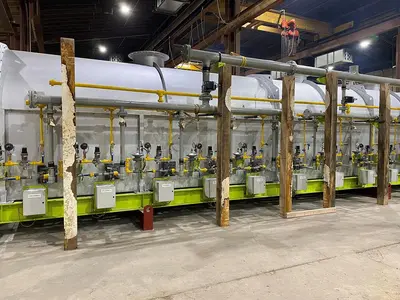

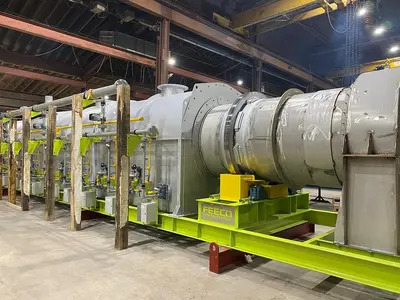

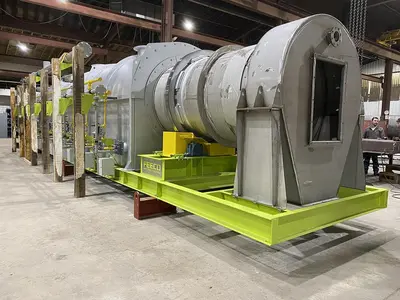

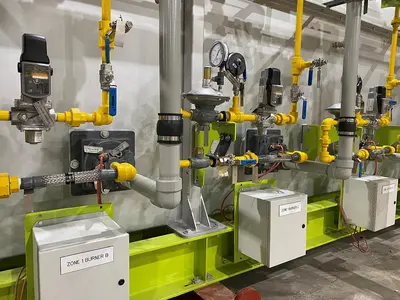

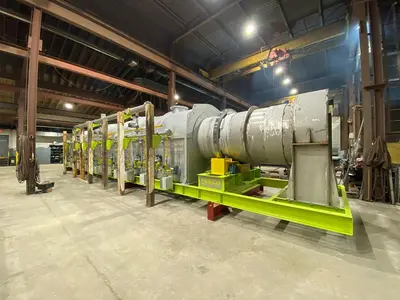

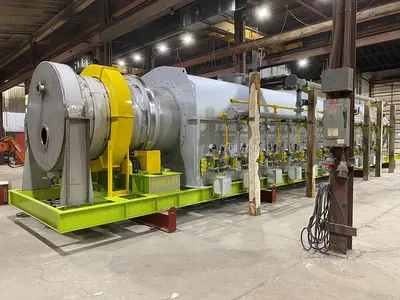

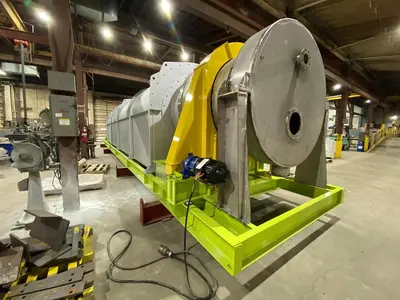

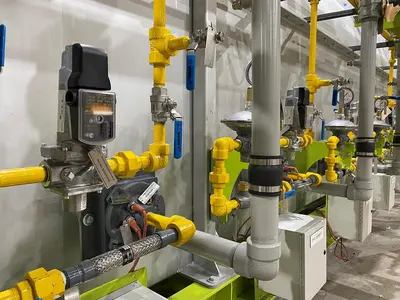

FEECO International indirect fired rotary kiln system with 4.5' Diameter x 50' Long, designed for continuous high-temperature processing in controlled atmosphere applications. Constructed of 304L stainless steel with refractory-lined interior and mounted on a heavy-duty structural skid with trunnion supports, girth gear, and pinion drive assembly. Driven by Marathon Black Max inverter-duty motor with gear reducer for controlled rotation. Includes fully integrated multi-zone natural gas combustion system by Process Combustion Systems with (11) high-velocity burners across three independently controlled zones, each with individual gas trains, regulators, and safety shutoff valves. Controls include Allen-Bradley CompactLogix PLC, PanelView HMI, and Fireye burner management system providing automated startup, multi-zone temperature control, and full safety interlocks. Designed for calcination, thermal desorption, reduction roasting, and specialty material processing with approximate throughput of 2.36 TPH.
Specifications
Stock Number: 5991747
Manufacturer: FEECO International
Model: Indirect Rotary Kiln System
Year: 2021
Serial Number: D20215011
Diameter: 66" Diameter X 50' Long
Type: Indirect Fired Rotary Kiln
Materials of Construction: 304L Stainless Steel
Shell: 3/8"–3/4"
Refractory: 2300°F firebrick, 2600°F ceramic fiber
Combustion: Natural Gas, (11) burners
Controls: Allen-Bradley PLC, PanelView HMI, Fireye BMS
Throughput: ~2.36 TPH
Design Material: Calcium Carbonate
Basis: As-is, Where-is
