USED 2016 DRAKE PWCT90S3-T4-ZW

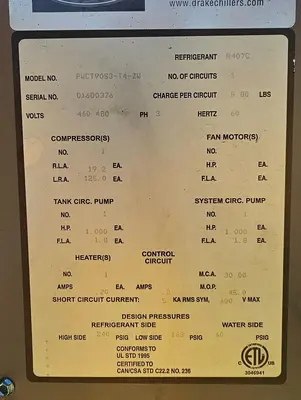

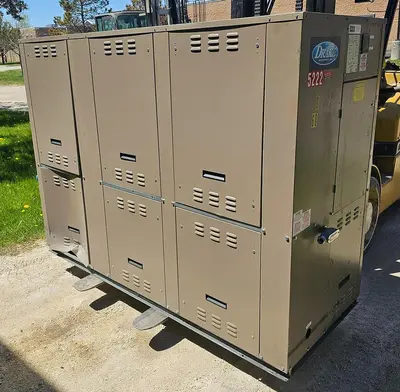

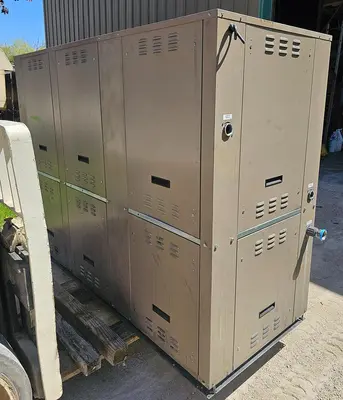

2016 Drake PWCT90S3-T4-ZW 9-Ton Packaged Water-Cooled ChillerUp for sale is a premium, American-built 2016 Drake Model PWCT90S3-T4-ZW Packaged Water-Cooled Industrial Process Chiller. Rated for up to 90,000 BTU/hr (Nominal 7.5 to 9 Tons), this self-contained system features an integrated internal fluid reservoir tank and process pump, offering a true plug-and-play cooling solution for demanding applications.Manufactured by Drake Chillers in Bensalem, PA, this unit utilizes high-end Copeland scroll compression and modern electronic controls. It has been thoroughly inspected, drained, and prepped for safe freight shipment, presenting a massive capital savings opportunity over ordering a new system with factory lead times.Technical SpecificationsModel Number: PWCT90S3-T4-ZWSerial Number: D16D0376 (April 2016 Build)Cooling Capacity: 90,000 BTU/hr Nominal (7.5 to 9 Tons of process cooling)Condenser Configuration: High-efficiency water-cooled shell-and-tube design (requires external tower or city water loop connection)Refrigeration Circuit: Single-circuit system utilizing a reliable 10 HP Copeland Scroll CompressorIntegrated Fluid Reservoir: Factory-insulated, heavy-gauge internal fluid tankControl Interface: Integrated digital microprocessor controller providing real-time temperature tracking, flow analytics, and onboard diagnosticsElectrical Requirement: 460 Volts / 3-Phase / 60 HzFluid Connections: 1-1/4" Female NPT process portsFootprint Dimensions: Approximately 64" L x 34" W x 85" HApproximate Dry Weight: 975 lbsHigh-Value Core System FeaturesTrue Plug-and-Play Configuration: This is a fully packaged PWCT model featuring an integrated, factory-insulated 90-gallon fluid reservoir tank and heavy-duty process pump entirely pre-piped within a single compact steel frame. Buyers do not need to source or engineer separate external holding tanks or loops.Copeland Scroll Compression: Equipped with a single, high-reliability 10 HP Copeland Scroll Compressor (Model ZBD76KCE). This generation of compressors is highly efficient, has fewer moving parts than traditional piston models, and is easily serviced by any commercial HVAC technician.MCS (Micro Control Systems) Electronic Controller: Built with an industrial, open-source microprocessor controller. Unlike proprietary boards that require expensive factory technicians to service, the MCS setup allows for seamless integration into building automation systems (BMS/BAS), remote monitoring, and straightforward onsite calibration.Environmentally Compliant / Serviceable Refrigerant: Engineered out of the factory for stable, mainstream refrigerants (like R-407C or R-410A) rather than outdated, banned substances. This ensures the unit remains fully compliant with current EPA guidelines and is inexpensive to service or top off.Structural & Safety SpecsIndustrial Heavy-Duty Frame: Built on a rugged, powder-coated steel chassis designed for harsh shop floor environments.Compact Footprint: Measuring 64" L x 34" W x 85" H, it packs a full 90-gallon capacity and 10 HP pumping setup into an exceptionally tight floor footprint.Heavy Safety Certifications: Fully compliant and certified to UL STD 1995 and CAN/CSA STD C22.2 No. 236 standards, making it easy to pass facility safety and insurance audits.Fluid Connection Ports: Standard 1-1/4" Female NPT process ports for hassle-free integration into existing facility plumbing lines.

* Condenser Configuration: High-efficiency water-cooled shell-and-tube design

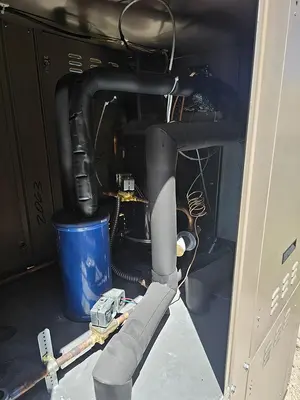

* Integrated Fluid Reservoir: Factory-insulated, heavy-gauge internal fluid
* Approximate Dry Weight: 975 lbs
