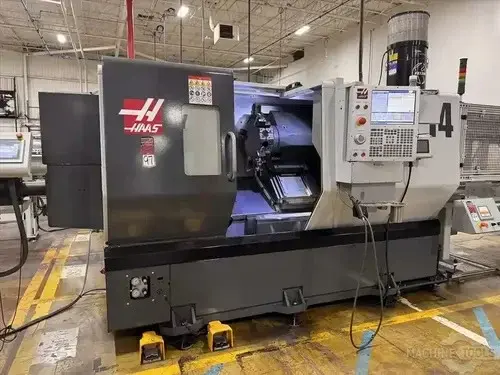

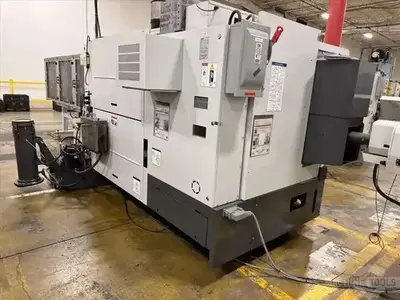

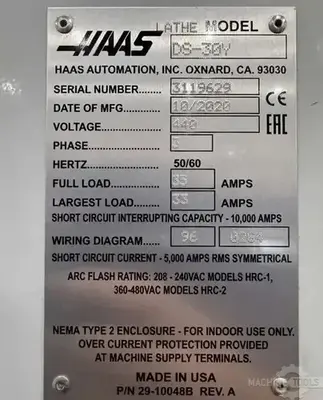

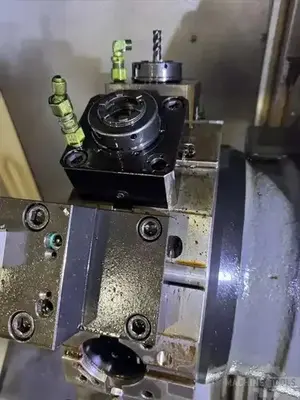

Haas DS-30Y CNC Turning Center
| Swing | 31.75" | 806.45 mm |
| Machining Length | 584.2 mm | 23" |
| # Axis | 4 | 4 |
| Chuck Size | 8.3" | 210.82 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 18" | 457.2 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
Swing: 21"
Max. Cutting Length: 32.5"
Max. Cutting Diameter: 13.75"
Bar Capacity: 3"
Main Spindle Chuck: 10" Collet
Sub-Spindle Chuck: 8.3" Collet
Spindle Speed: 4,500 RPM
Spindle Bore: 3.5"
Spindle Nose: A2-6
Spindle Hours: 4,568 Hours
Spindle Motor: 30 HP
Tool Changer: 12-ATC
X-Axis Travel: 9.4"
Y-Axis Travel: ±2"
Z-Axis Travel: 32.5"
Rapid Traverse (X/Y): 472 IPM
Rapid Traverse (Z): 945 IPM

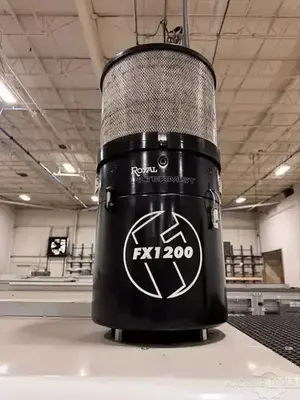

Mist Collector
