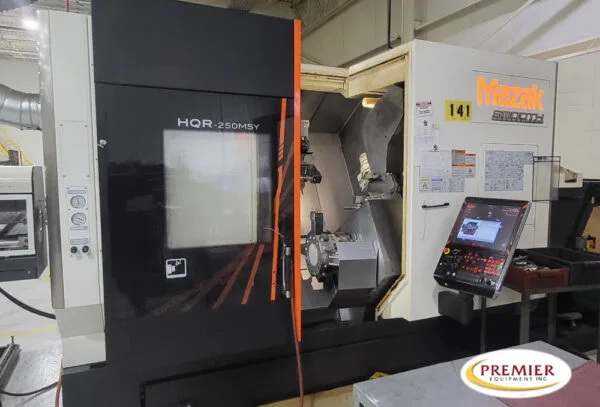

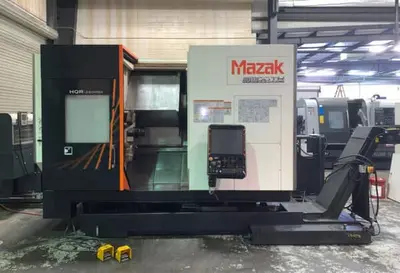

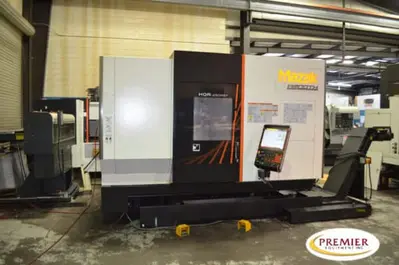

Mazak HQR-250MSY (Hyper Quadrex 250MSY) / HQ250MSY / HQ-250MSY
Multi-Axis CNC Turning Center
Maximum Swing Over Upper Turret……………. 14.57″
Maximum Swing Over Lower Turret……………. 12.6″
Maximum Machining Diameter: Chucking……… 13.54″(Upper)
Maximum Machining Diameter: Chucking……… 8.7″(Lower)
Maximum Machining Length……………………….. 33.9″
Maximum Distance Between Chuck Jaws……… 33.86″
MAIN SPINDLE SPECIFICATIONS (L):
Preparation ONLY for BB210 10” 3-Jaw or Collet Chuck
Maximum Bar Work……………………………….. 3.15”
NOTE: Maximum bar work and maximum spindle speed depends upon optional chuck package.
SECOND SPINDLE SPECIFICATIONS (R)
UPPER / LOWER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret……………………………………… 12 pos. Drum VDI
AXIS TRAVELS:
X1-Axis……………………………………………… 8.2″
Y1-Axis……………………………………………… +/-2.0″
Z1-Axis……………………………………………… 29.875″
X2-Axis Lower……………………………………… 5.5625″
Y2-Axis Lower………………………………………. +0.75″/-2.0″
Z2-Axis Lower………………………………………. 32.125″
W-Axis……………………………………………….. 34.075″
MAZATROL SMOOTH G CNC Control
Parts Catcher with Side Exit Conveyor
Chip Conveyor
LNS Quick Load Servo S3T Barfeed
