Herding 890L Vacuum Filter & Roots 711 U-RAI Blower

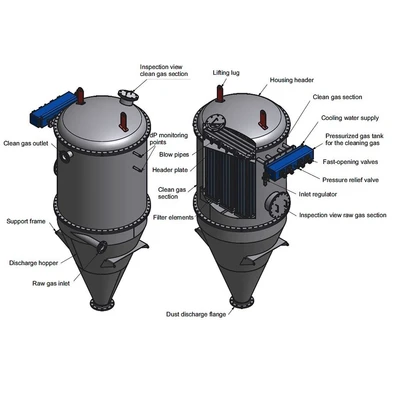

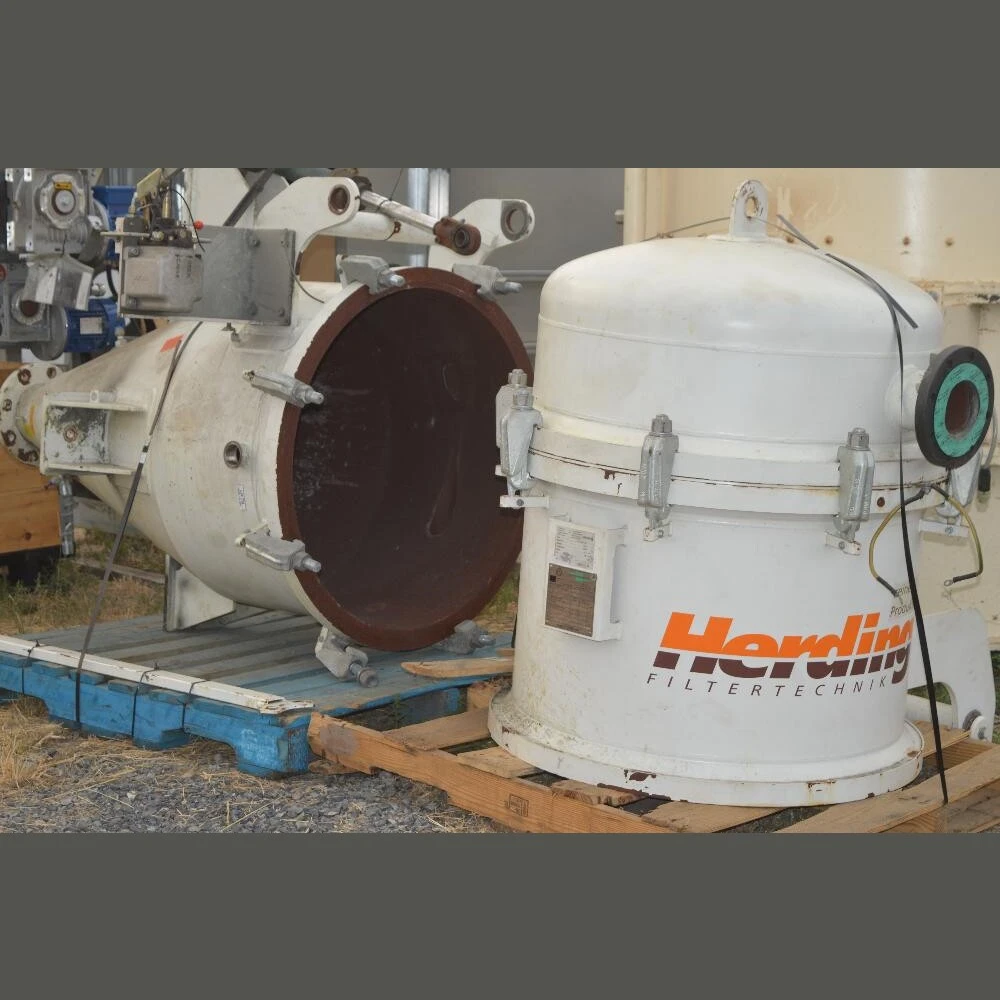

Herding Vacuum Filter
Volume: 890 Liters
Mass: 674 kg

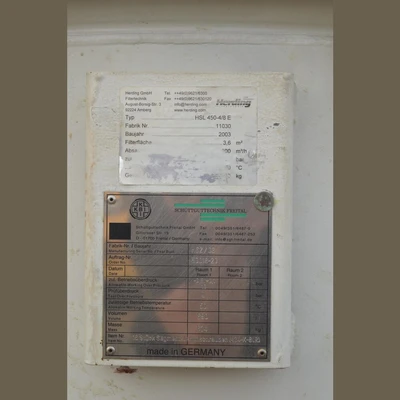

Filter Type: HSL 450-4/8 E
Allowable Working Over Pressure: -0.5/+0.1 Bar
Test Over Pressure: 9 Bar
Allowable Working Temperature: 50°C
Dimensions:

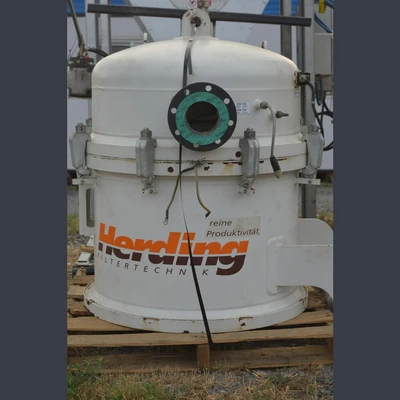

Top: 35" Diameter x 41" Long
With 4" Inlet
Heavy Duty 8 Bolt Flange
 Bottom: 35" Diameter x 62" Long
6" Outlet
Heavy Duty 8 Bolt Flange
Top: 35" Diameter x 41" Long
With 4" Inlet
Heavy Duty 8 Bolt Flange
With 4" Inlet
Heavy Duty 8 Bolt Flange
 Bottom: 35" Diameter x 62" Long
6" Outlet
Heavy Duty 8 Bolt Flange
6" Outlet
Heavy Duty 8 Bolt Flange

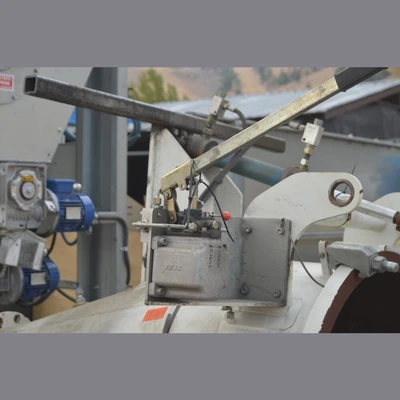

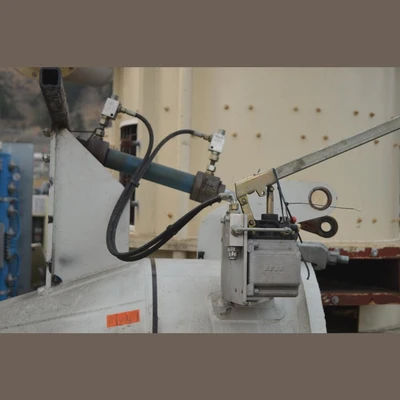

Manual Hydraulic Top Lift
Dimensions of Hydraulic Ram for Top Lift:
2.5" Diameter x 16.5" Long With Approx. 10" Stroke
2.5" Diameter x 16.5" Long With Approx. 10" Stroke

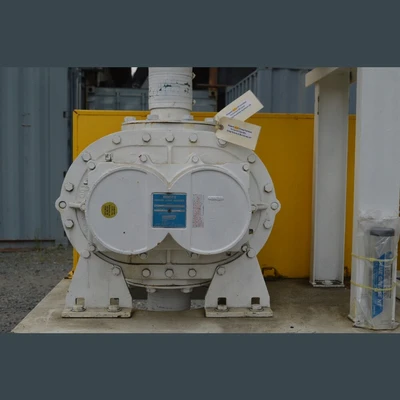

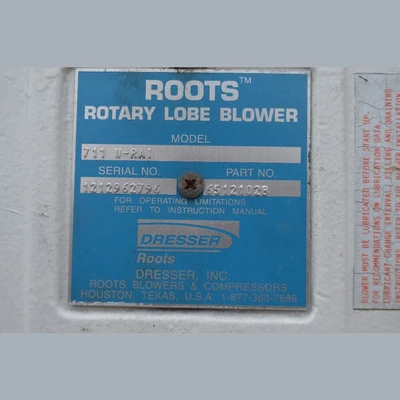

Roots 711 U-RAI Rotary Lobe Blower
Model: 711 U-RAI
Flow: 1387 CFM
Pressure: 10psi
Vacuum: 16inHgv
Speed: 2050 RPM

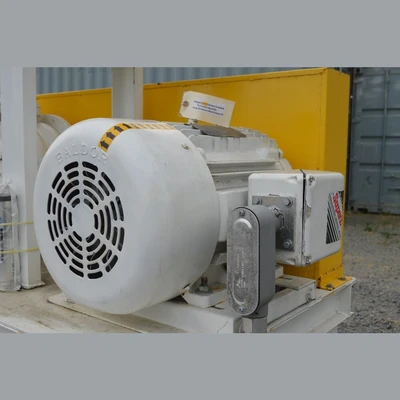

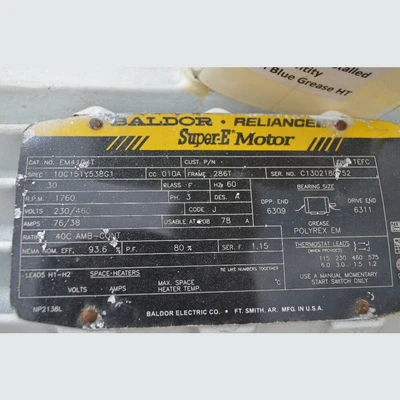

Motor: Baldor TEFC
30 HP
1760 RPM
230/460 Volts
286T Frame
 Dimensions:

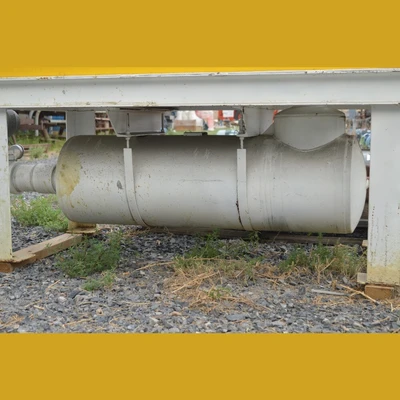

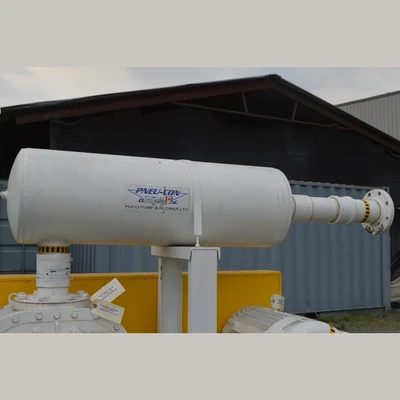

Top Tank
14" Diameter x 44" Long

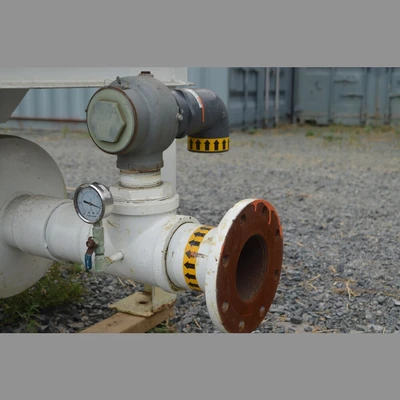

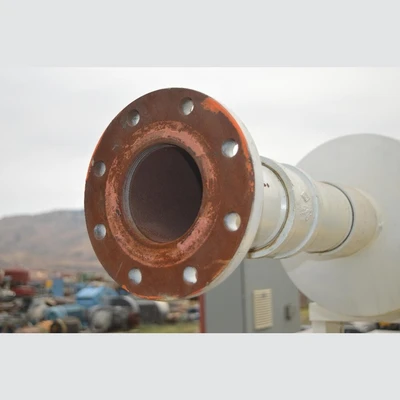

4" Outlet with 8 Bolt Flange
Bottom Tank
14" Diameter x 44" Long
4" Inlet with 8 Bolt Flange
Mounted on Common Frame made from 4 x 2 Channel
Location: British Columbia, Canada
