USED ROOTS DRESSER 616 RAM-J

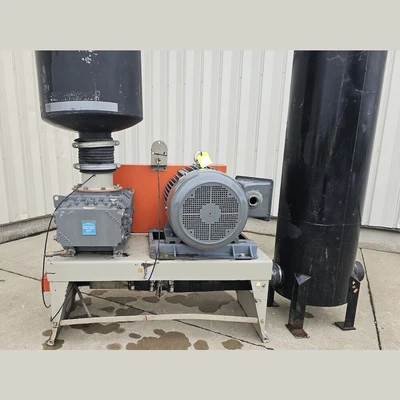

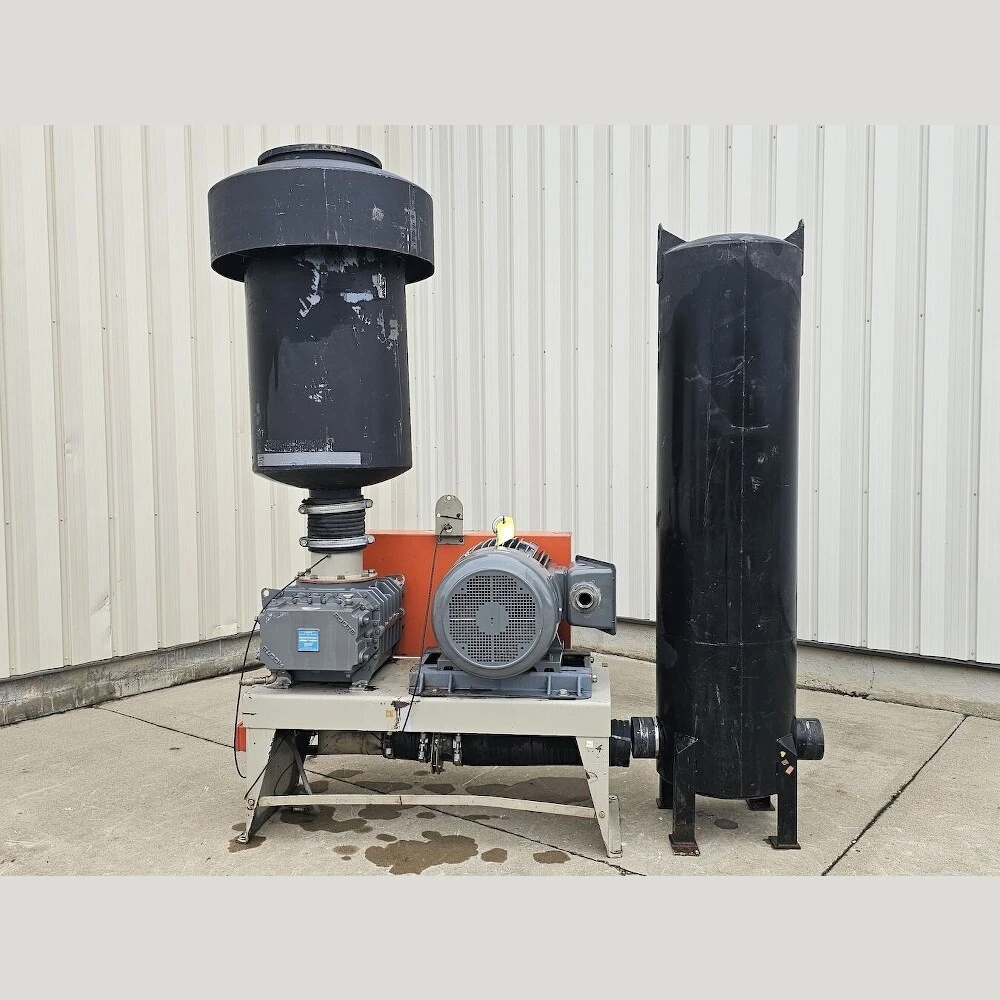

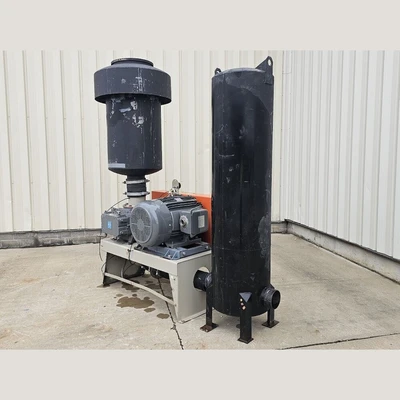

Roots Dresser 616 RAM-J Rotary Lobe Blower

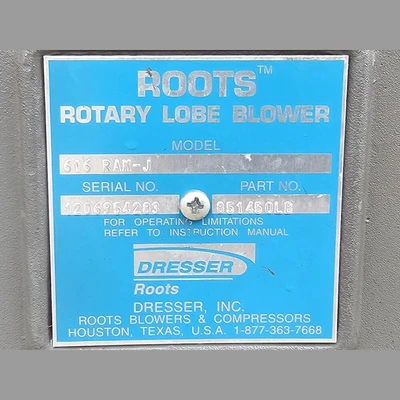

Make: Roots Dresser
Model: 616 RAM-J
Type: Positive Displacement Blower
Condition: Used Condition
Max Capacity: 2,162 CFM
Max Pressure: 15psi
Max Rotation Speed: 3,000RPM
Inlet: 8in Dia. with Chamber-Absorptive Silencer
Discharge: 6in Dia. with Pressure Relief Valve and Chamber-Absorptive Silencer

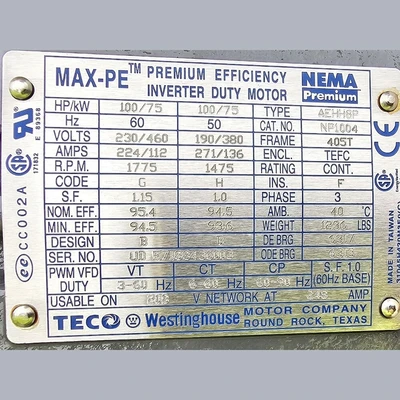

Drive: Westinghouse Inverter Duty Motor, V-Belt
Power Output: 100HP
Rotation Speed: 1,775RPM
Voltage: 230/460 Volts
Frequency: 60Hz
Phase: 3-Phase
Power Output: 100HP
Rotation Speed: 1,775RPM
Voltage: 230/460 Volts
Frequency: 60Hz
Phase: 3-Phase
Mounted on 27in x 60in Steel Frame
Speed Controllers Sold Separately
Location: Eastern USA
