USED MARS MINERAL P-30

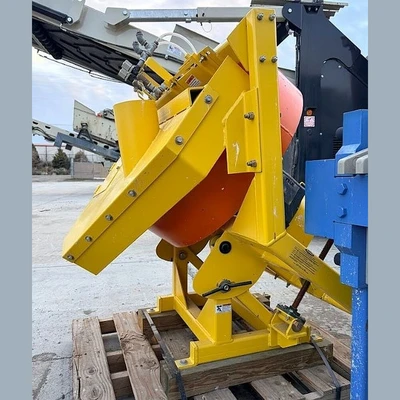

Mars Mineral P-30 Disc Pelletizer

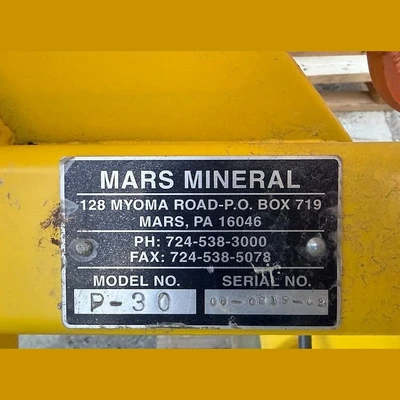

Make: Mars Mineral
Model: P-30
Type: Disc/Pan Pelletizer - Agglomerator
Style: Lab Scale Pelletizing Unit
Condition: Unused New Surplus
Application: Designed for Pelletizing and Agglomeration Testing in Mining, Chemical, and Materials Processing Applications
Diameter: 3ft Dia.
Depth: 8in Depth
Capacity: 19ft³/hr. (0.54m³/hr.)
Horsepower: 1HP

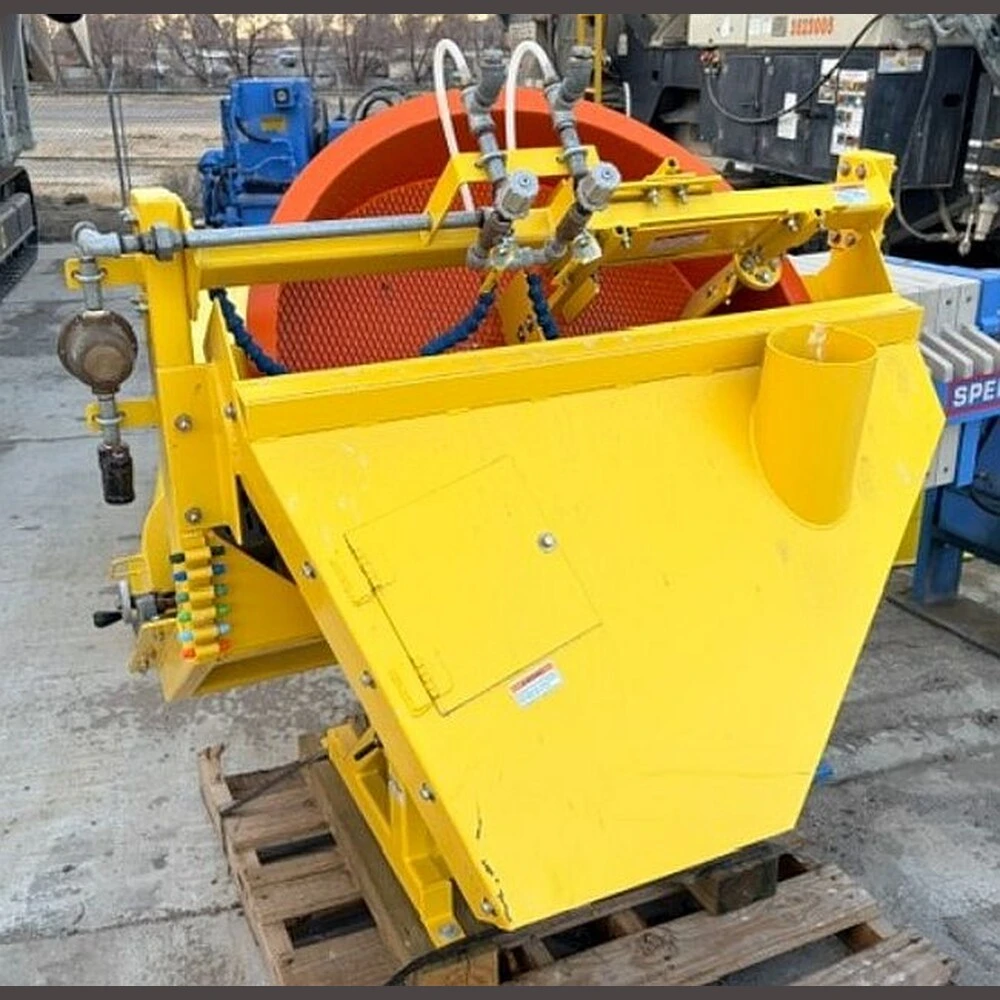

Includes Drive System, Adjustable Pan Angle, and Spray System

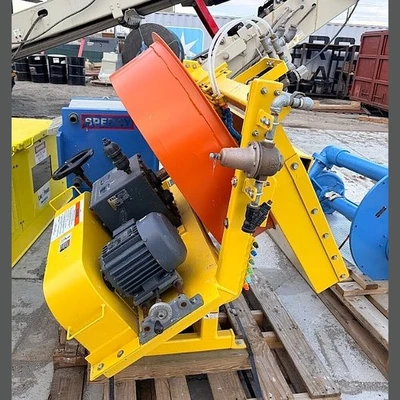

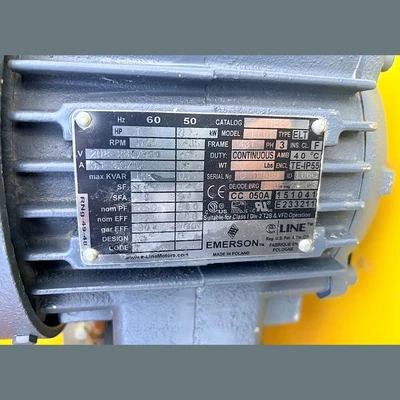

Drive: Emerson Electric Motor
Power Output: 1HP (0.75kW @ 50Hz)
Rotating Speed: 1750 RPM (1435 RPM)
Voltage: 208-230/460 Volt (380V)
Current: 3.1-3.0/1.5 Amps (1.8 Amps @50Hz)
Frequency: 50/60Hz
Phase: 3-Phase

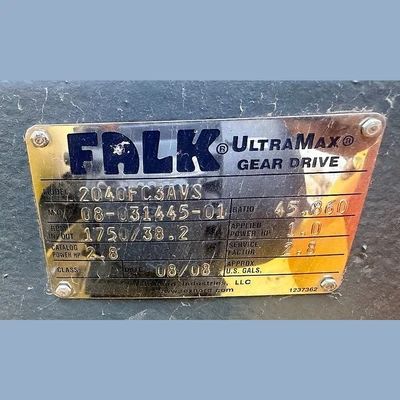

Speed Reducer: Falk UltraMax 2040FC3AVS Gear Reducer
Ratio: 45.860:1
RPM: 1750 RPM In / 38.2 RPM Out
Power Output: 1HP (0.75kW @ 50Hz)
Rotating Speed: 1750 RPM (1435 RPM)
Voltage: 208-230/460 Volt (380V)
Current: 3.1-3.0/1.5 Amps (1.8 Amps @50Hz)
Frequency: 50/60Hz
Phase: 3-Phase
Speed Reducer: Falk UltraMax 2040FC3AVS Gear Reducer
Ratio: 45.860:1
RPM: 1750 RPM In / 38.2 RPM Out
Ratio: 45.860:1
RPM: 1750 RPM In / 38.2 RPM Out
Dimensions:
Length: 4.5ft
Width: 4ft
Height: 4ft
Weight: 1,100 Lbs.
Length: 4.5ft
Width: 4ft
Height: 4ft
Weight: 1,100 Lbs.
Location: Western USA
