Lucas VBU 400

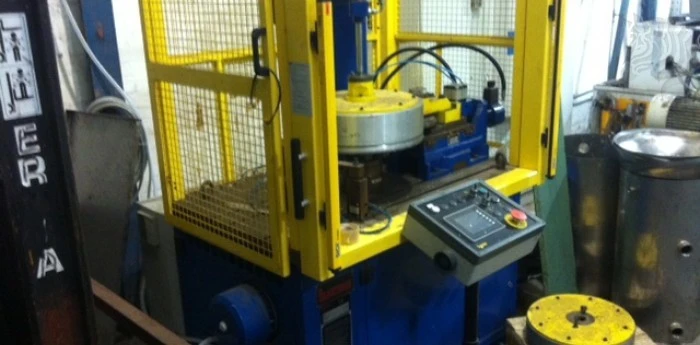

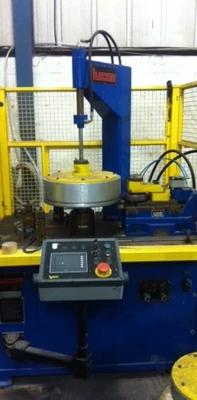

Used Lucas VBU 400 Flanging Machine
Flanging machine
20inch, 18inch amd 16inch tooling available
Max closing power of tailstock – 14 KN
Power of Ejector – Expander – 50mm
Notch depth of tailstock – 340mm
Stroke of tailstock – 350mm
Increase stroke of tailstock (optional) – 400mm
Max Diametre to be worked – 400mm
Complessive installed power – 6kw
Feeding voltage – V/Hz – 415/50
Section of conductors for phase (max 50m.) 4mm2
Amp. nominal absorbtion 15
Oil tank capcity – 75
Acoustic pressure level in atmosphere 81,05 DBA
Level of acoustic power 98,5 dbA
Safety distance 250mm
Weight 1480kg

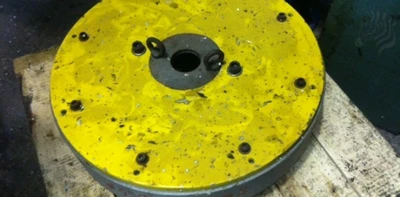

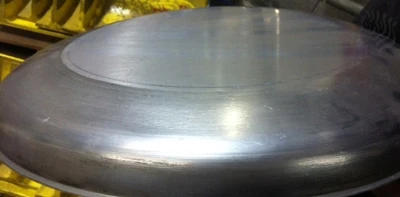

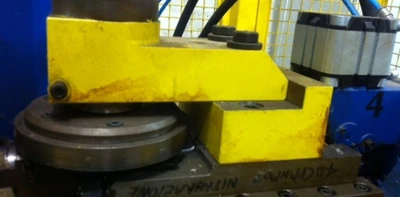

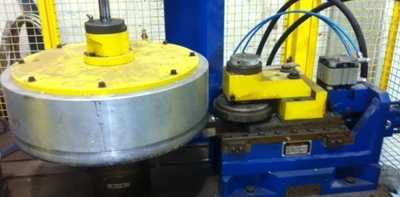

Tool for flanging domes and cylinder bodies

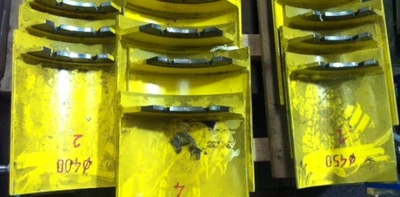

Tooling flat trays
