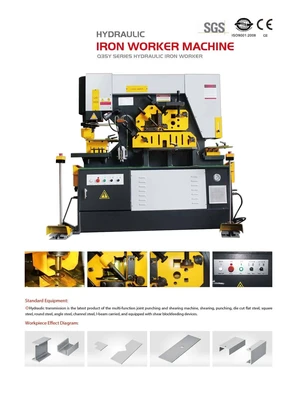

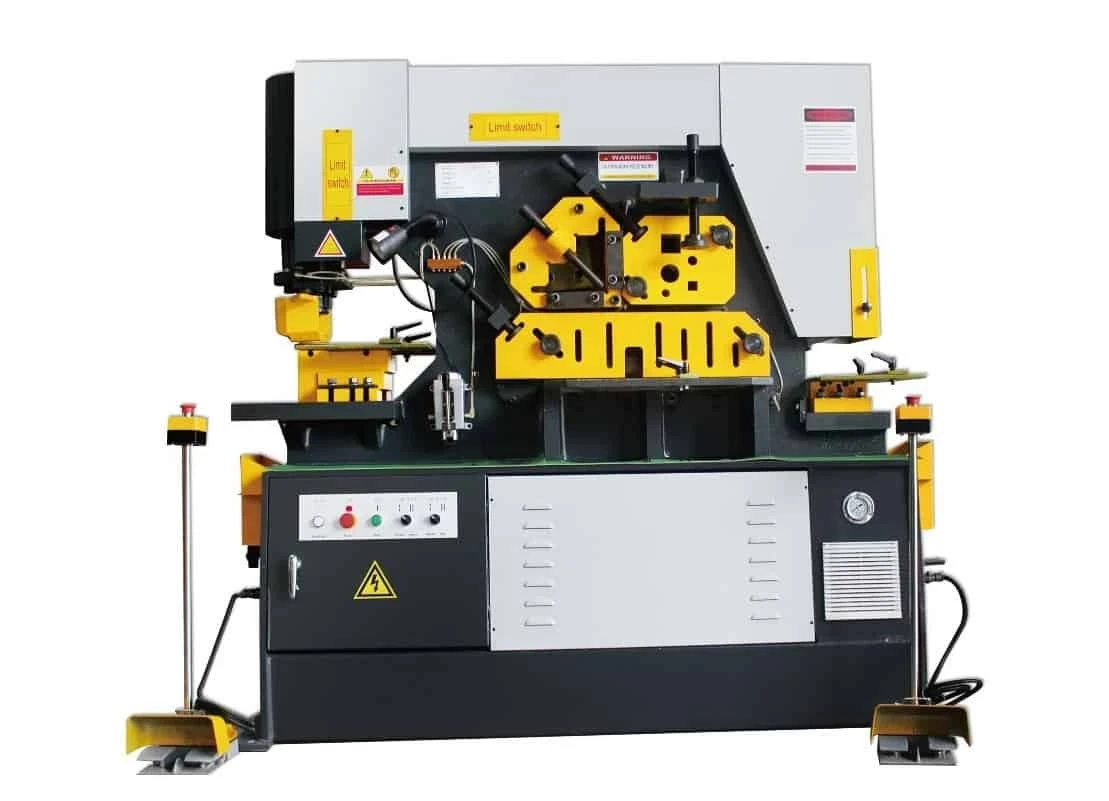

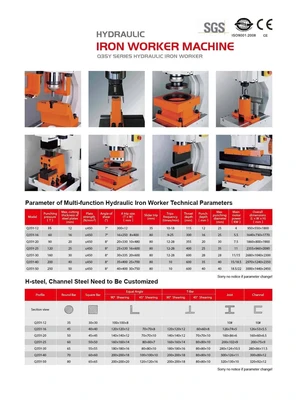

New 80ton iron worker

Brand new metal working 80ton universal iron worker in stock for sale

Model: MULTI 80
CAPACITIES WITH STANDARD EQUIPMENT:
PUNCHING:
Rated Capacity: 80 Tons
Maximum Capacity: 1 1/8″ x 3/4″
Diameter x Thickness: 2 1/4″ x 3/8″
Maximum Hole Size: 6 3/8″
Maximum Stroke length: 2 1/8″
Speed – 5/8 inch Travel: 50 (25 cpm)
Throat depth: 12″
Working Height: 42 5/16″
Flange Punch: 12″
SHEARING:
Flat bar: 12″ x 3/4″ or 18″ x 5/8″
Angle Flange Miter – At 45 degrees: 4″ x 5/8″
Blade Length: 18 1/2″
Working Height: 35″
SECTION CUTTING:
Round-Square Bar (Standard): 1 3/4″
Channel/Beam (Optional): 5 3/16″ x 2 1/2″
Tee (Optional): 3 1/2″ x 1/2″
ANGLE CUTTING:
At 90 degrees: 6″ x 1/2″
At 45 degrees: 2 3/4″ x 3/8″
Working Height: 45 1/2″
NOTCHING:
Material Thickness: 1/2″
Width: 1 1/2″
Depth: Vee(Optional)-Rectangular(Standard): 2 3/8″-3 1/2″
Angle Flange: 4″ x 3/8″
Working Height: 35″
GENERAL:
Motor: 10 HP
Net Weight: 4,245 lbs
Machine Dimensions: 28″w x 69″L x 72″H
CAPACITIES WITH ADDITIONAL TOOLING:
BENDING:
Maximum Bar Size: 10″ x 5/8″ or 24″ x 1/4″
PUNCHING NOTCH STATION:
Maximum Capacity: 1 1/2″ x 5/16″
Throat Depth: 5″
CORNER NOTCH:
Maximum Capacity: 10sq x 1/4″
TUBE NOTCH:
Maximum Diameter: 3 1/4″

Other iron worker tonnages available 30,35,40,45,50,55,60,65,70,75,80,85,90,95,100,105,110,120,125,1030ton iron workers available.
Used hydraulic iron workers for sale and buying, such as Kingsland Haco Geka Sunrise Isitan Morgan Rushworth
In stock for immediate delivery.
