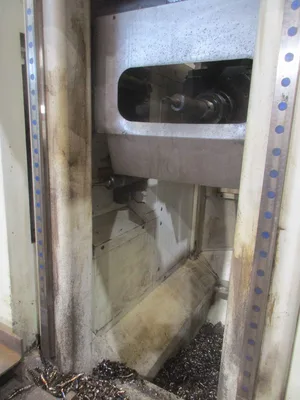

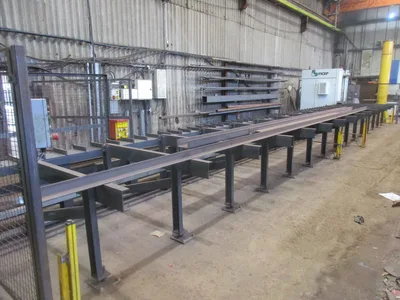

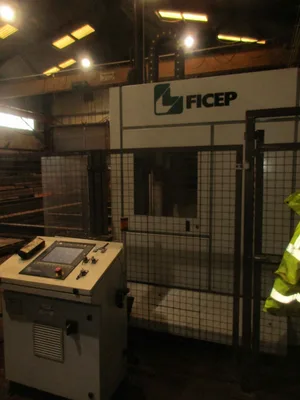

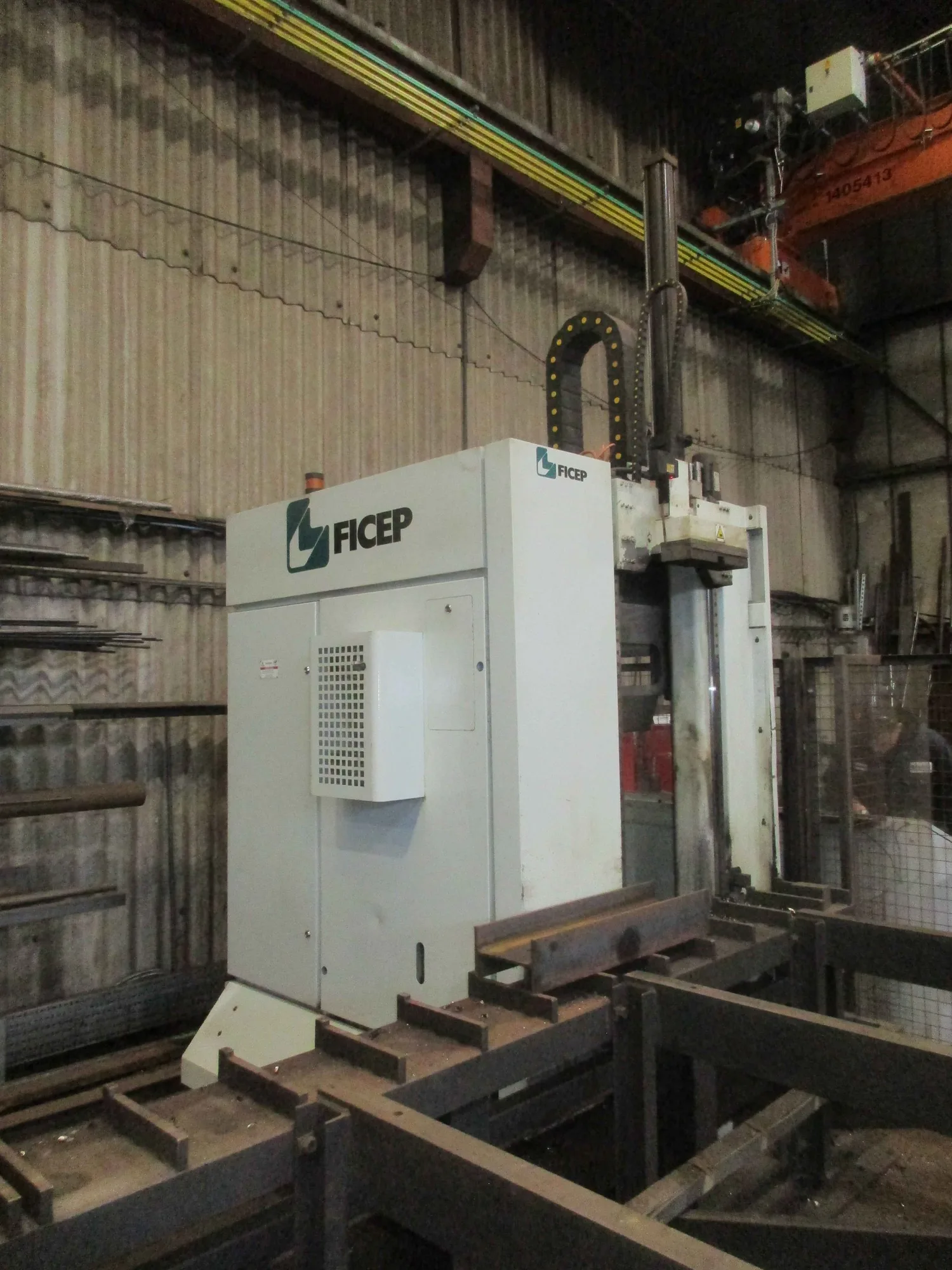

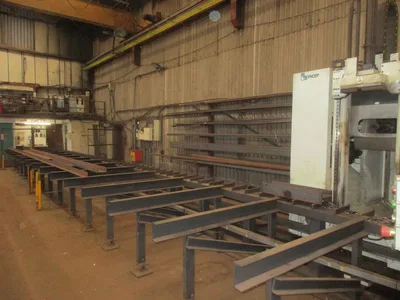

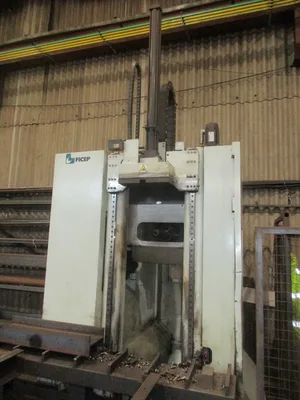

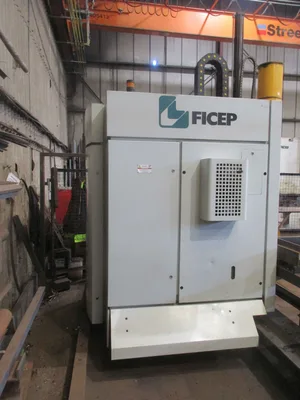

Ficep Excalibur 1201DE

Used very good condition Ficep excalibur 1201 de steel beam / girder drilling and Machining line for sale
2.1 MAIN CAPACITIES AND SPECIFICATIONS – VIDEO AT THE BOTTOM OF THE LISTING
 New / Year 2016
2.1.1 Type of sections that can be processed

Max. section volume                                    mm.                      1200 x 1200
Min. section volume                                     mm.                      50 x 50
Bar Length                                                       max.mt                Refer to layout

2.1.2 Drilling Capacity



2.1.3 Other Specifications
Note: Dimensional tolerances of the raw sections are to UNI 5783-5784/73 standards

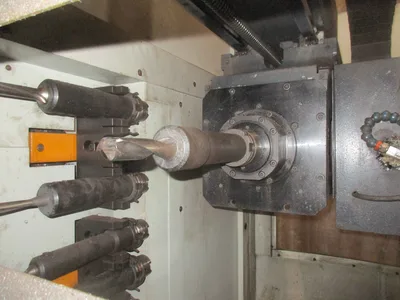

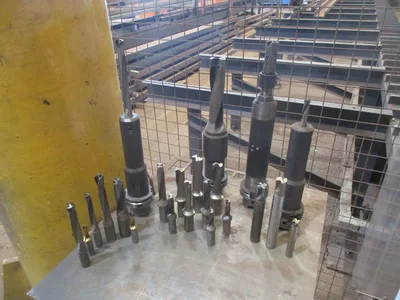

Tool Change

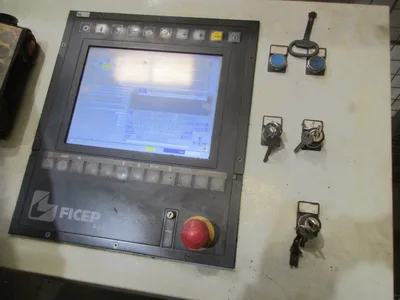

2.1.4 CNC CONTROLLED AXES

Axes are CNC controlled
Total No. of axes that can be positioned                4

Auxiliary axes

2.1.5 Axis Stroke
2.1.6 Maximum Positioning Speed
2.1.7 Minimum programmable increment
Positioning accuracy (8)
Within holes of the same group pattern                +/- 0.5mm
Within groups of holes positioned at L distance (L    +_/- 0,5 + (L x0,06)

(*) The above accuracies do only apply to correctly adjusted machines fitted with sharp and correctly mounted tools

2.2 Hydraulic System
2.3 Pneumatic System
Useful Data:

Type of normally used oil: Hydrus 32
Oil Quantity required to fill the circuitry               100 L
System Working Pressure                                          60 BAR

 Structural steel drilling line for sale
Ideal for an structural steel fabrication or engineering companies looking to bring beam drilling in house or adding to your capacity.
