Sahinler MRM-S

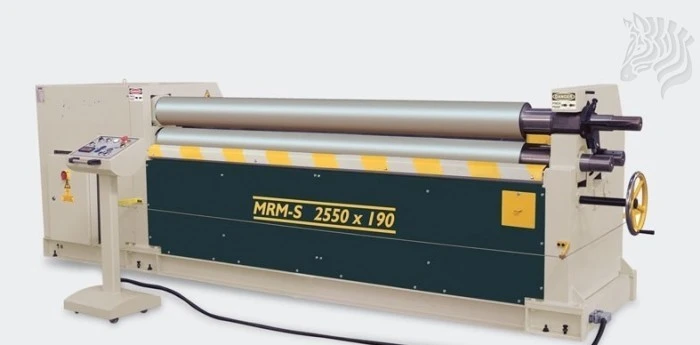

Sahinler MRM-S 3050×200 Roll Bender
MRM-S 3050×200
Useful length 3050mm
Pre bending capacity 3/4mm
Bending capacity 4/5mm
Roll diametre 200mm
Min roll Diametre 300mm
Motor power 4kw
Back roll motor 1,5kw
Machine dimensions 5200x950x1300
Weight 4000kg
1. Two rolls powered by a single chain and belt driven Helical type Gearbox and gear system
2. SAE 1050 (CK 45) Quality Certificated steel rolls with high tensile strength
3. Steel welded main frames
4. Mechanical manual openable Drop-End
5. Mobile control panel
6, Conical bending device
7, Central lubrication system
8, Top roll support system
9, Precision bending with brake motor
10, Motorised adjustment of back roll
