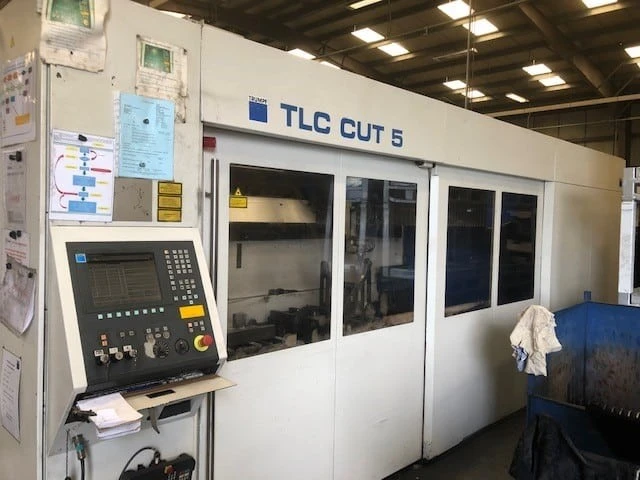

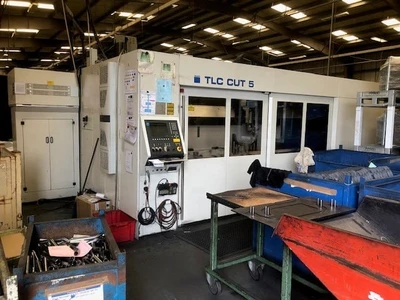

Trumpf TLC Cut 5

Used Trumpf 5axis laser for sale / 3d laser for sale
Trumpf TLC Cut 5
Year 2006
Fully serviced twice a year by Trumpf Uk
Last service January 2019
New vacuum pump fitted – 28/05/19
Hours:
Beam on: 14,922 hours
Laser on: 59,480 hours
3.2kw
Fully serviced.
Jigs / cutting beds included.
Delivery and installation can be arranged.

ONE TRUMPF TLC CUT 5 INCLUDING:

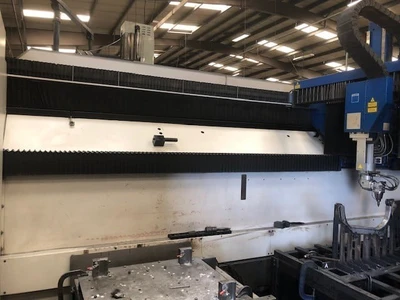

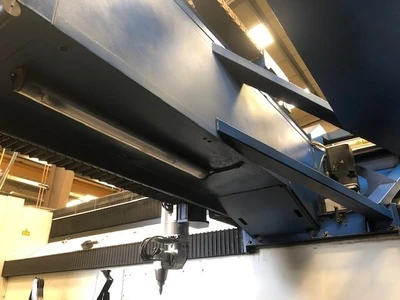

Machine body with three linear axes X = 3000mm, Y = 1500mm, Z = 600mm

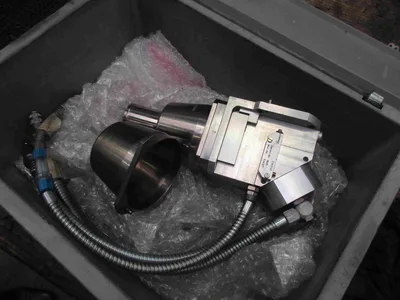

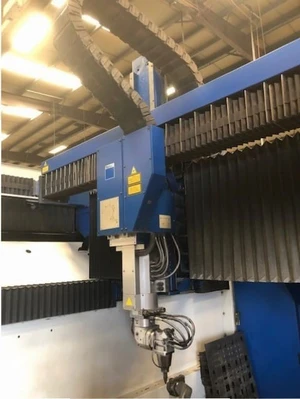

Laser cutting head with two rotational axes B = + 100 degrees, C = n x 360 degrees
TRUMPF TLF 3200 turbo laser
Logbook function, power cycles laser power control

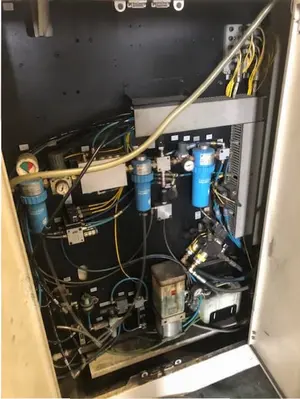

Power supply cabinets
Closed circuit water/air chiller
Pilot laser for programming assistance
Machine CNC control unit, model Siemens 840D with 3.5” disk drive, networking capabil and analog modern for telepresence
5” High Pressure cutting optic
Setting Device
Class 1 Laser safety enclosure with manual sliding door at the front
Extraction unit with particle filter, 2000 m3 / h
TLF 3200, surcharge over TLF 2000
Stationary work table
ToPs 100 to include Nesting Module & IGES Translator
ToPs 800 to include Fixture Construction & 3D IGES Translator
Videos below:
