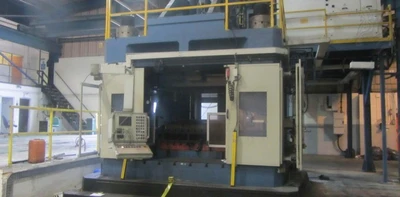

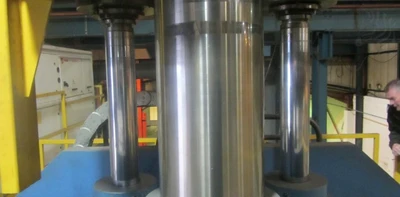

Hyproloc 3000

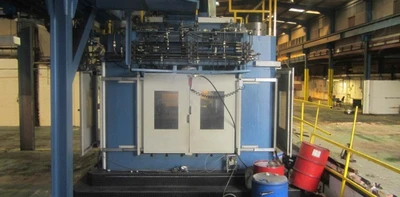

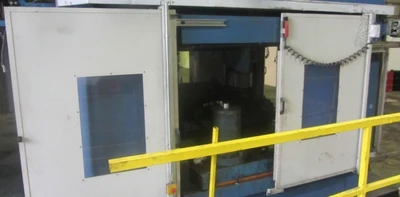

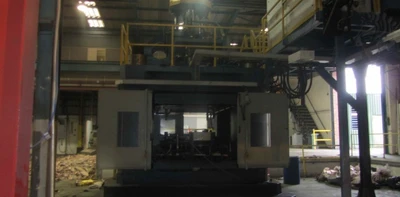

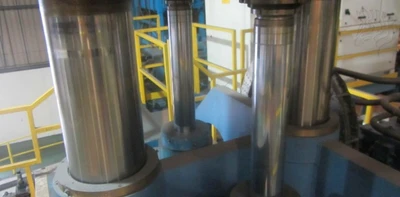

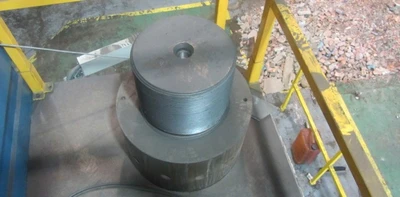

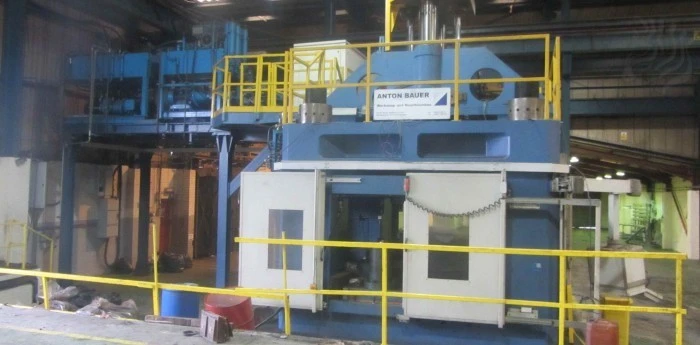

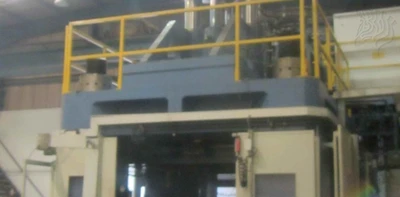

Used Anton Bauer Hyproloc 3000
2000 ton capacity Hydraulic press
Free standing
With hydroforming capability

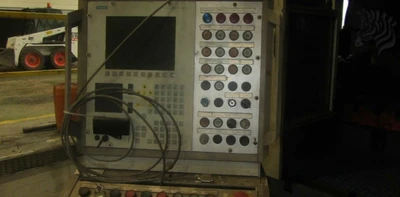

Siemens Sicomp PC32-F control
275cm x 150cm bed size
190ton weight
Bed Height from Floor: 36 Inches
Control Type: Siemens PLC
Daylight Opening: 78.5 Inches
Dimensions: 154 x 154 x 244 tall Inches

Tonnage: 2000 tons
Voltage (Machine): 3x415V/50Hz
Weight: 190 Tons
Maximum die clamping force: 2000 Tons (20,000 kN)

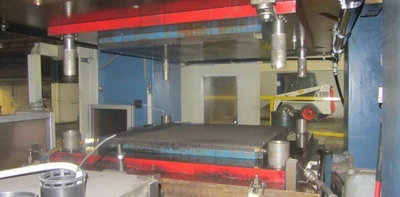

Die Table: 154 x 154 with T-slots to attach lower die
Closed Die Installation room: 79 x 154 x 47
Table height: 36 over ground
Stroke to open die: 31.5
Daylight opening: 78.5

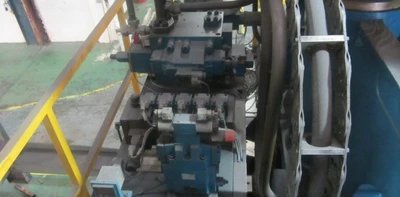

Hydraulic machine system consisting of:
(2) hydraulic pumps
Monitoring units for temp, pressure, level & filtration
(2) cooling systems
Forming system consisting of:
Forming fluid tank
Pump unit for the pressure ntensifier
Shielded pressure intensifier with valve system
Forming fluid filter system
Machine motion control system: Siemens PLC
Machine forming process control system:
Industrial computer with Hyproloc program
Delta servo Hydroloc controllers (24 axis)
Cycle time of less than 20 seconds
Forming speed controllable to 25mm/s
Main voltage: 3x415V/50Hz, control voltage: 24V DC, Power: 300 kVA
