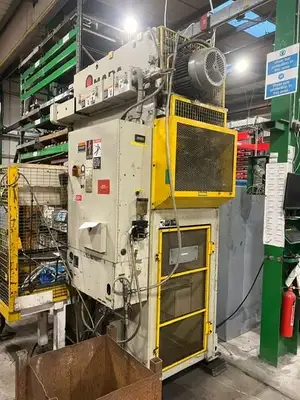

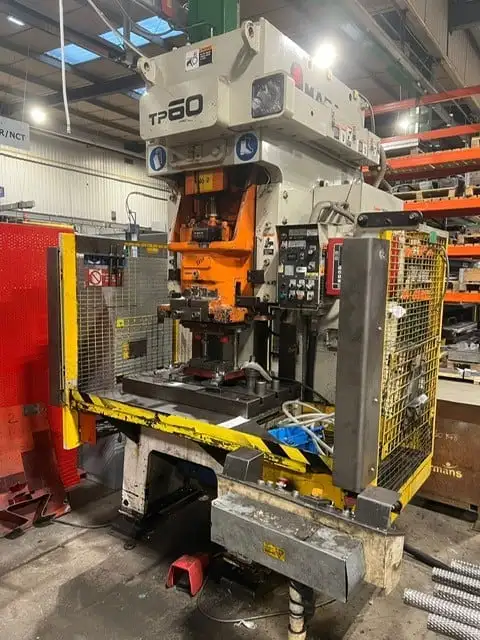

Amada TP-60

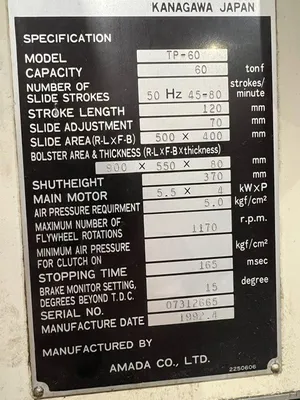

SPECIFICATION
MODEL                                                                                                          TP -60
CAPACITY                                                                                                     60 ton
NUMBER OF SLIDE STROKES                                                               50 Hz 45-80 strokes/ minute
STROKE LENGTH                                                                                       120 mm
SLIDE ADJUSTMENT                                                                                 70 mm
SLIDE AREA (R-L x F-B)                                                                            500 x 400 mm
BOLSTER AREA & THICKNESS (R-L x F-B x thickness)                   900 x 550 x 80 mm
SHUTHEIGHT                                                                                             370 mm
MAIN MOTOR                                                                                              5.5 x 4 kWXP
AIR PRESSURE REQUIRMENT                                                               5.0 kgf/cm2
MAXIMUM NUMBER OF FLYWHEEL ROTATIONS                            1170 r.p.m.
MINIMUM AIR PRESSURE FOR CLUTCH ON
STOPPING TIME                                                                                         165 msec
BRAKE MONITOR SETTING, DEGREES BEYOND T.D.C.                15 degree
SERIAL NO.                                                                                                 07312665
MANUFACTURE DATE                                                                              1992.4
MANUFACTURED BY                                                                                AMADA CO., LTD.
