Ras XXL Centre 75.06

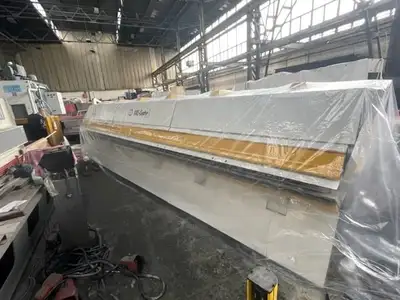

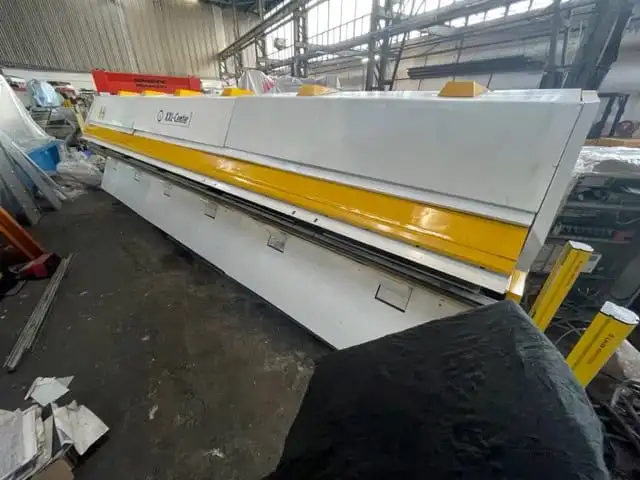

Used 6metre Ras up and down bend cnc folding machine for sale
Ras XXL Centre 75.06

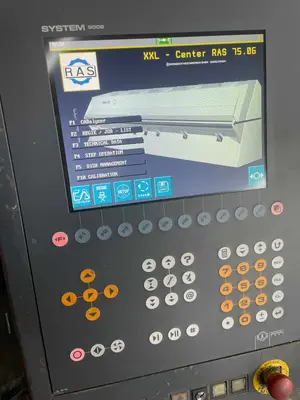

System 9002 cnc control

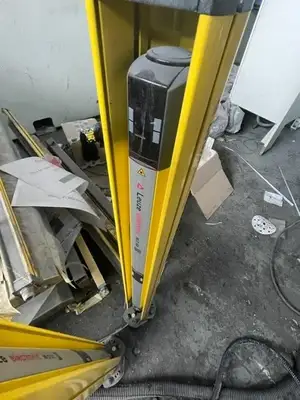

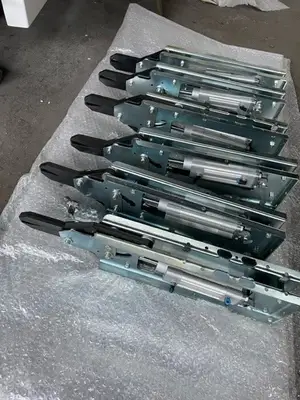

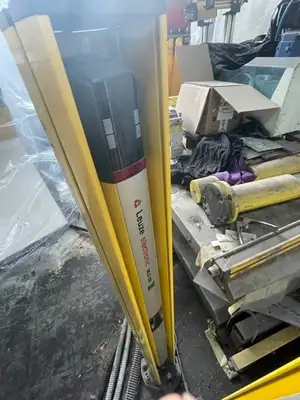

New sheet grippers and new Lenze safety guards
RAS TECHNICAL DATA:
                                                                                          DIMENSION                      75.06
Max. Sheet thickness (Steel 58000 PSI)                  gauge                                  16
Max. sheet thickness (Aluminium 29000 PSI)        gauge                                  >14
Max. sheet thickness (Stainless Steel
109000 PSI)                                                                    gauge                                  18
Working length max.                                                   inch                                      251,97 / 6.4metre
Grippers Travel Range                                                 inch                                      0,47 – 29,53
Grippers Positioning Accuracy                                   inch                                      +/- 0,004
Distance between 2 Grippers min.                           inch                                      7,09
Stops and Grippers                                                       Quantity                             8
Free Space in front of the folding
be-ams up to                                                                 degree                                300
Working Height                                                             inch                                      37,40
Machine Width                                                              inch                                      59,05
Machine Length without contori cabinet               inch                                      257,48
Machine Height                                                             inch                                      70,87
Weight approx..                                                            lbs                                        27 600
Compressed air                                                             bar                                       5,5
Drive Power Upper Beam                                           hp                                         2,95
Drive Power Upper Folding Beam                            hp                                         2,95
Drive Power Lower Folding Beam                            hp                                         2,95
Speeds:
Upper and Lower Folding Beam                                degree/s                             126
Upper Beam                                                                   inch/s                                  13,78
Grippers                                                                           inch/s                                  13,78
Max. sheet thickness (Steel 400 N/mm2)               mm                                      1,5
Max. sheet thickness (Stainless Steel
750 N/mm2)                                                                   mm                                      1,25
Max. sheet thickness (Aluminium 200 N/mm2)    mm                                      2,0
Working length max.                                                   mm                                      6400
Grippers Travel Range                                                 mm                                      12-750
Grippers Positioning Acuracy                                     mm                                      +/- 0,1
Distance between 2 Grippers min.                           mm                                      180
Stops and Grippers                                                       Quantity                             8
Free space in front of the folding beams up to     degree                                300
Working Height                                                             mm                                      950
Machine Width                                                              mm                                      1500
Machine Length without control cabinet               mm                                      6540
Machine Height                                                             mm                                      1800
Weight approx..                                                            N                                          125 000
KG                                        12 500
Compressed air                                                             bar                                       5,5
Drive Power Upper Beam                                           kW                                       2,2
Drive Power Upper Folding Beam                            kW                                       2,2
Drive Power Lower Folding Beam                            kW                                       2,2
Speeds:
Upper and Lower Folding Beam                                degrees                               126
Upper Beam                                                                   mm/s                                   60
Grippers                                                                           mm/s                                   350

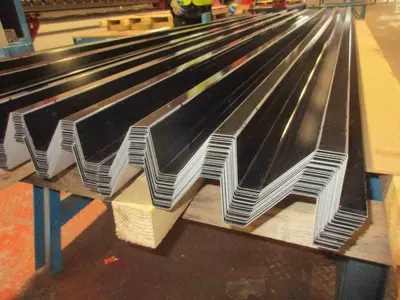

Ideal for the manufacture of roofing products
