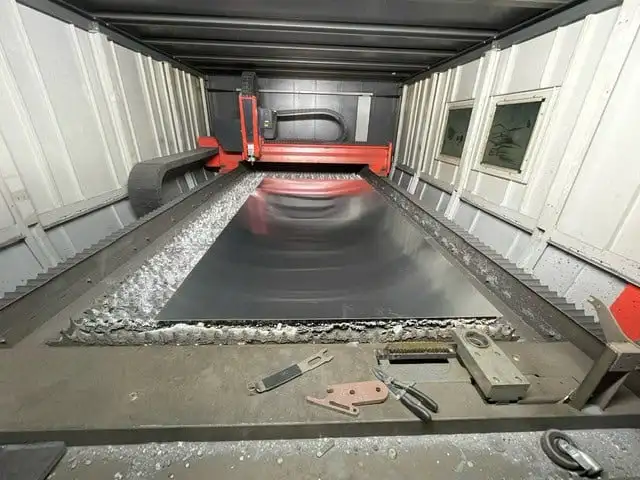

Bystronic BySmart 3015

Used Bystronic Bysmart 3015 fiber 10kw cnc fiber laser cutting machine for sale

Year: 2021
Technical specs / Details
table length: 3000 mm
table width: 1500 mm
10,00 Watt / 10kw
Bysmart / Bystar fibre laser
Description
Complete with:
Auto focus
Auto nozzle centring
Nominal sheet size xy: 3000 x 1500 mm
Cutting area xyz: 3048 x 1524 x 70 mm
Positioning accuracy Pa: +/- 0,1 mm
Repeatability Ps: +/- 0,05 mm
Maximum workpiece weight: 890 kg
Operation via panel: ByVision Touchscreen and manual control unit
