1.2metre x 3mm rolls
Overview
Description

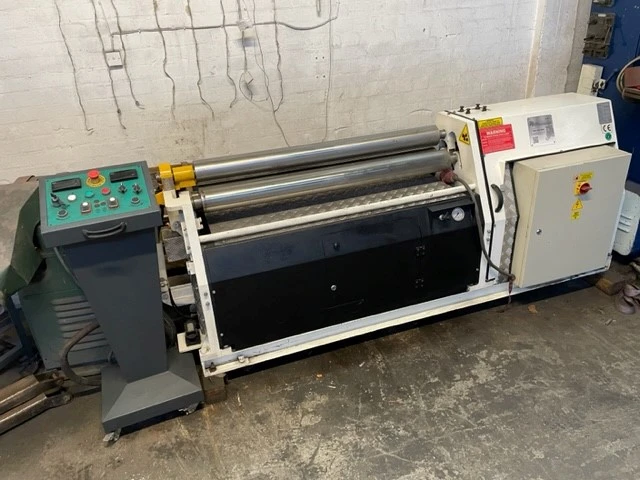

Brand new premium 1.2metre x 3mm sheet metal bending rolls for sale – in stock
NEW SAHINLER MODEL MRH 1270 X 110
RMRM-H 3rolls Driven Hydraulic. Back Roll 3R MRM-H Rolls Driven Hydraulic Economical Type
1/3
3R MRM-H Rolls Driven Hydraulic
TECHNICAL SPECIFICATIONS
Steel welded main frames
Manual Drop-End

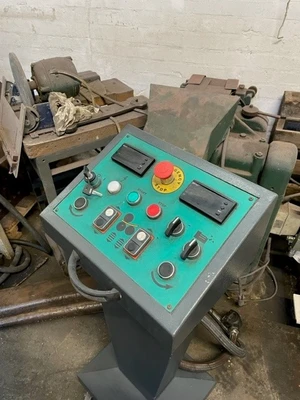

Mobile control panel
Motor powered 3 roll
Up-Down Hydraulic movement of back roll
Main motor with brake system
Conical bending,
Pre-Bending available
SAE 1050 (CK45) certificated forged steel rolls with high tensile strength
Induction Hardened rolls
1 pc. digital Read-Out
OPTIONAL ACCESSORIES
Overhead crane for large diameters
Hydraulic lateral side supports for large diameters
Ground and polished rolls for special rolls ,
Wire grooves on roll ends
NC control
Hdyromotor and Double speed working
Adjustable stepless speed
Sheet Ejector system
Specifications
Capacity:
Length: 1270mm
Pre-bending capacity: 1.5/2mm
Bending capacity: 3mm
Top roll dia 100mm
Back rolls diameter 90mm
Min roll dia: 150mm/450mm
