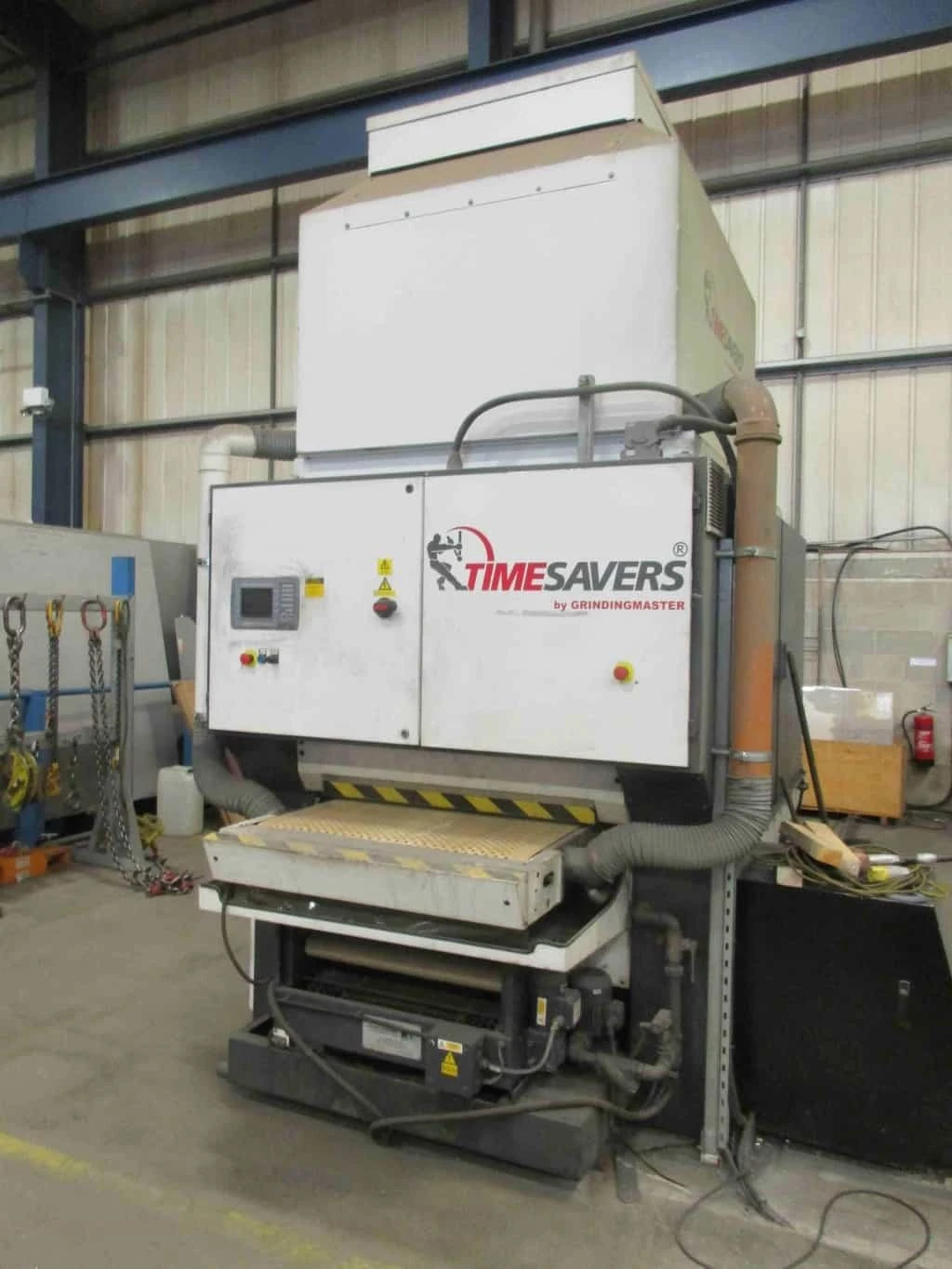

Timesavers41 series900

Used Time Savers 41 series 900 metal finishing

1.2     MACHINE SPECIFICATION

Working width: 900mm
Abrasive belt 1900 x 930mm
Machine execution in conformance with CE
Front pressure rollers with over thickness safety

1st Head
Contact roller head Ø 180mm (7.09 inches)
Contact roller 35° Shore NI grooved
Electronic oscillation
Fine-adjustment (7mm) of contact roller with rise and fall
Dial indicator on roller head
Speed 10-22m/s

2nd Head
Disc Ø 1220mm
Motorized height adjustment (80mm)
Frequency controlled motor 6.9kW
Speed10-22m/s

Feed
Vacuum conveyor table, fixed
Conveyor belt oil- and heat resistant, flat profile
Belly brake
Conveyor motor 1.3kW frequency-inverted,
Feed speed 1-10m/min
Motorized height adjustment (0-80mm) of conveyor bed opening,
frequency inverted
Jog switches to reverse feed direction

Wet Execution
Stainless steel doors and sheet material
Integrated filter, paper filter cloth (50grams/m2), cooling liquid tank
410L.
Spray nozzles
Centralized lubrication with nipples
Refractometer (coolant emulsion)
Water separator on top of the machine with 11kW pump

Belt-on Dryer
Double air knvies
Six squeeze rollers
Min. work piece size 80x80mm

400 V, 50 Hz
Main switch, 5 emergency stops
Machine operation: E1070 Mitsubishi control panel




The model 41-SERIE-900-WRD is only suitable for:
The parts to be processed must have the following properties:

Ideal for laser, waterjet and plasma cut parts.
