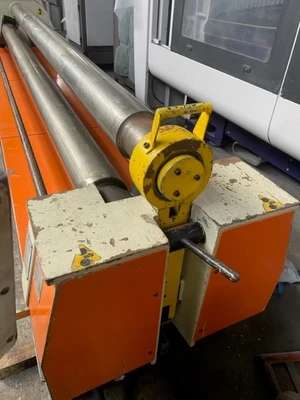

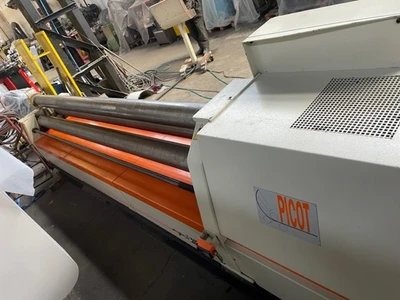

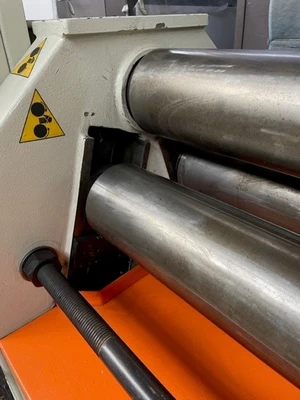

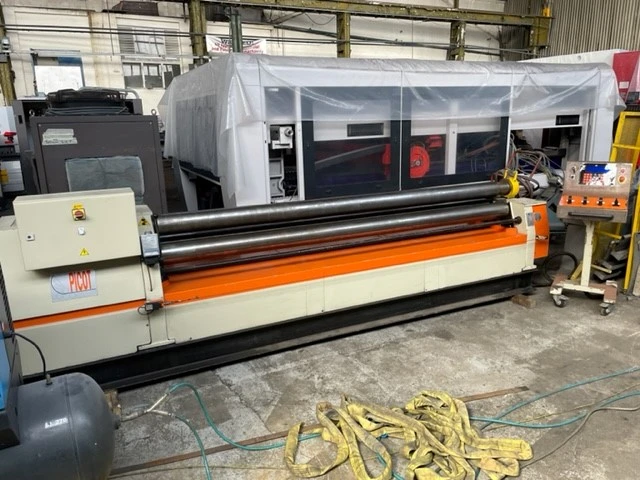

Picot RCS 150-30

Bending length 3100mm / 3metre x 2mm thickness

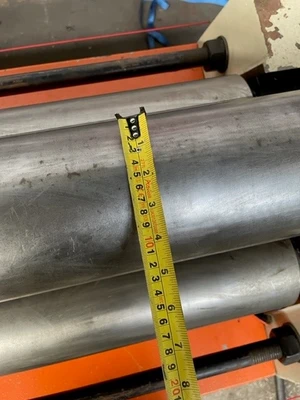

Top roll Dia 150
Max thickness bending 2mm and pre bending 1.5mm

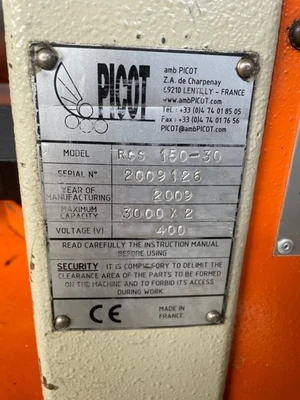

New / Year 2009
Can be tested under power with your sheet steel
3 ROLLS
SYMMETRICAL ROLL BENDING MACHINE
STANDARD EQUIPMENTS
100% Hydraulic
3 Rolls driven
Double pitch plate bending
machine
No lamination
Wide opening between the
rolls
Perfect prebended edges
Easy cone rolling
No pit
Calibration of parts
Advant

STANDARD EQUIPMENTS
 100% Hydraulic
 3 Rolls driven
 Double pitch plate bending
machine
 No lamination
 Wide opening between the
rolls
 Perfect prebended edges
 Easy cone rolling
 No pit
 Calibration of parts
Advantages
 3 rolls driven by independent
hydraulic motors

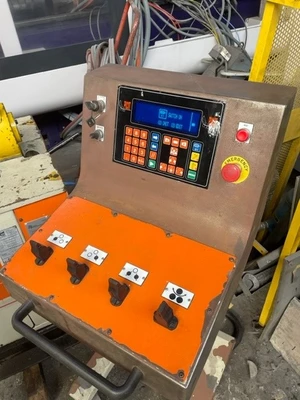

 Digital displays for controlling the
position of prebending rolls
 Automatic and hydraulic
synchronization of roll’s parallelism
 Progressives movements or
proportional regulation with
Danfoss ® motors and distributors
 Manual centralized lubrication
 Tilting device for pre bending rolls
 Cone device (thrust) for conical
bending
(up to RCS 170)
 Hydraulic control of opening yoke
(starting at RCS 205)
 4 grooves at 90° on each lower roll
(easy positioning of metal sheets)
 Polished rolls
