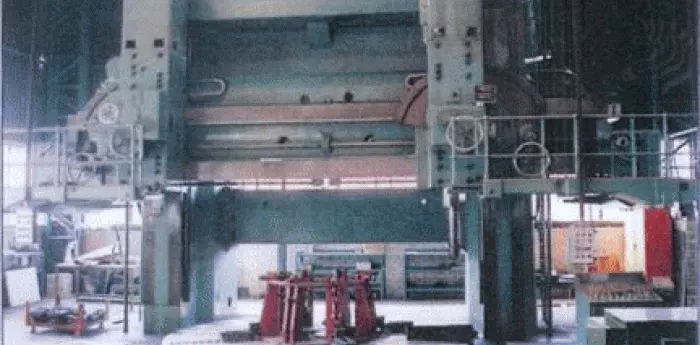

SCHIESS Vertical
Overview
Slotting Attachment – stroke from 0 – max 2500MM
Max workpiece diameter – 5000MM
Max turning height – 3000MM
Turntable diameter – 4500MM Table Load – 200TON
Can be retrofitted with a control of your choosing, please ask for details
Diameter of chuck 4530
Two rams, Left and right (octogonal) 320 accross flats
Maximum travel of rams 2500mm
Angle Left Ram +15 degress – 35 degrees
Angle Right Ram + 40 – -40 degrees
Left Ram Fitted with SLotting Attachment
Maximum Height Under Toolpost 3000mm
Maximum Height Under Bridge 3250mm
Maximum Load on Chuck 200tonnes
Maximum swing of Machine 5150mm
24 feeds 0,09-18,4mm / Rev
