USED 1983 KURAKI BM10DX
Overview
Specs

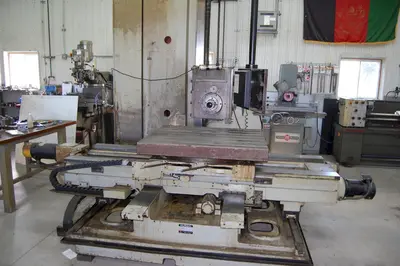

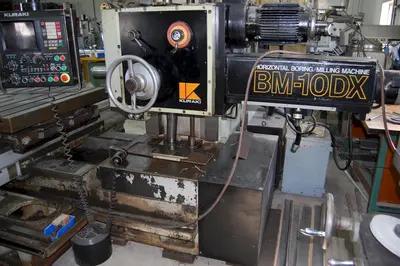

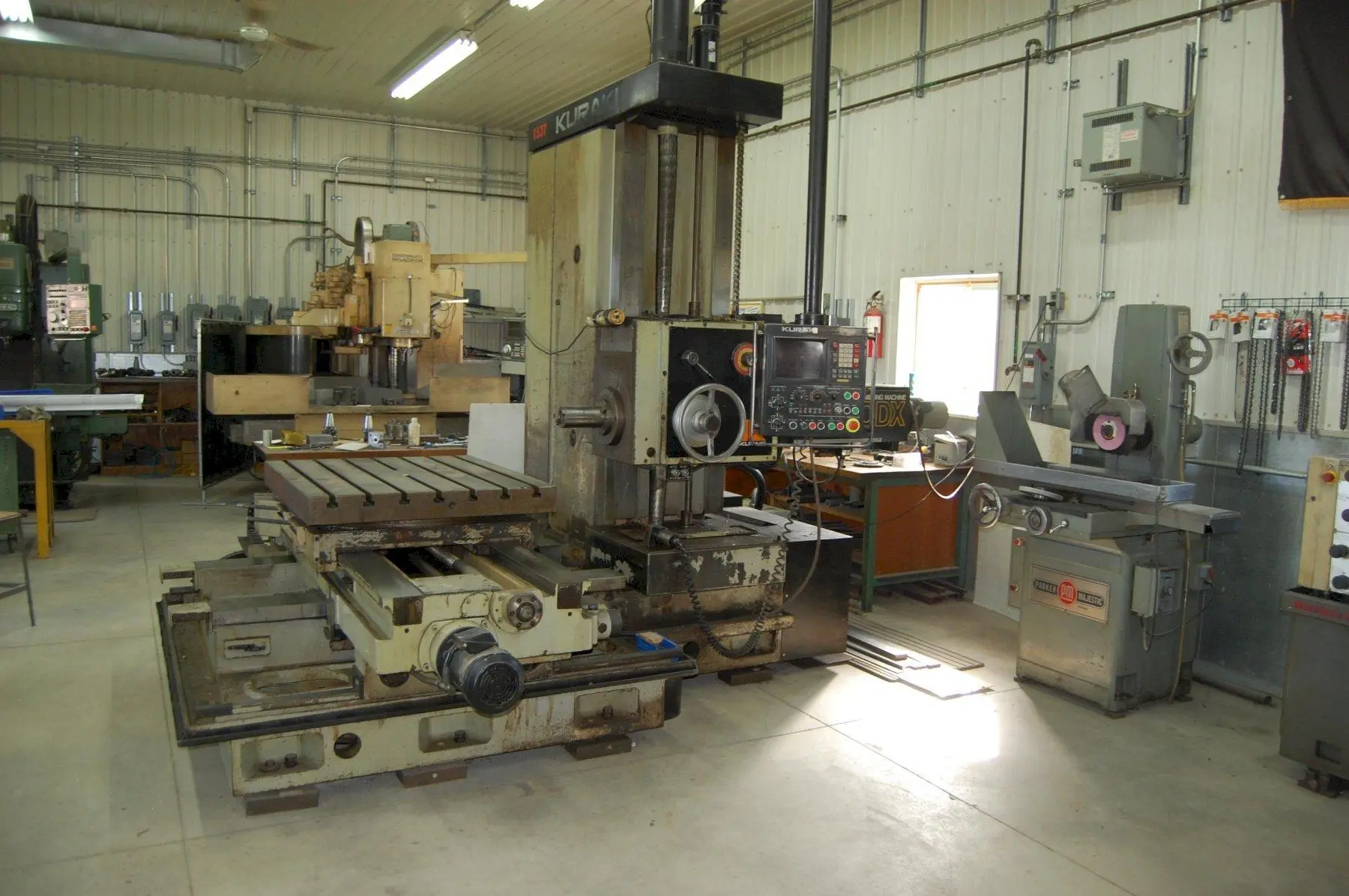

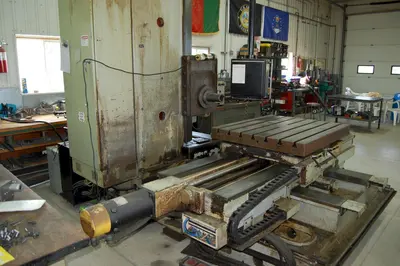

Kuraki Model BM-10DX CNC Boring Mill
Travels: X-59"
Y-39.4"
Z-27.6"

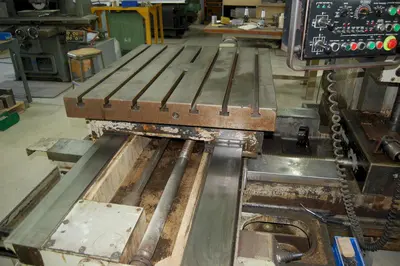

Table Working Area: 37.4" x 43.3"
Max load on table: 6600 #'s
Spindle Diameter: 3.94"
Axial Travel: 19.7"
Spindle Nose: NT #50
Spindle Speeds: 20-1000 RPM (50 Hz)/ 25-1200 RPM (60 Hz)
16 Speeds
Spindle Drive Motor: 9kw/11 kz (30 min)
Machine Dimensions: 155.5" Wide x 145.7" Depth x 136.22 Height
25,000 Pounds
Equipped with:

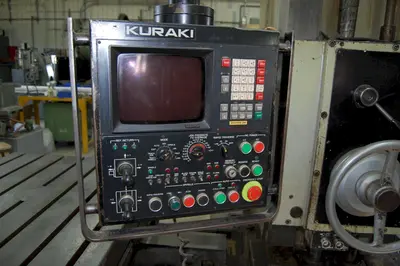

Kuraki/Fanuc CNC Control
Motor Driven Powered Rotary Table: 38" x 44"

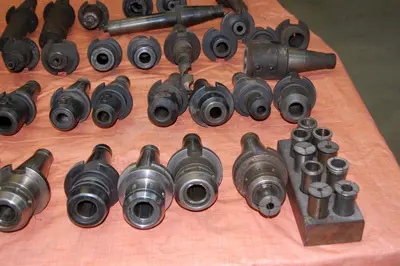

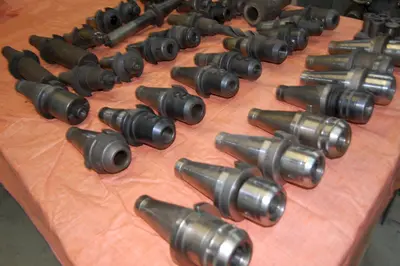

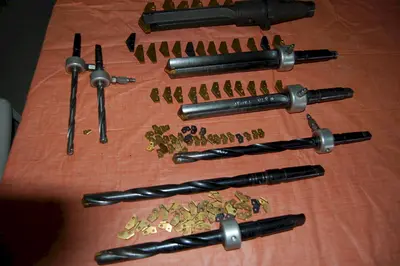

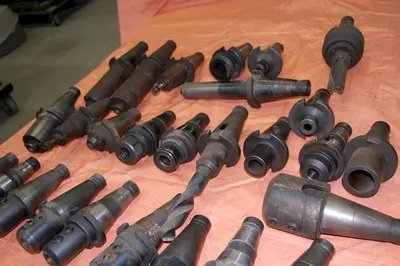

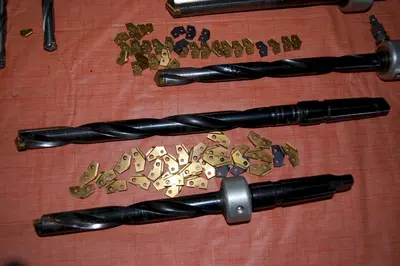

Tooling, Holders Etc. as seen in the pictures
