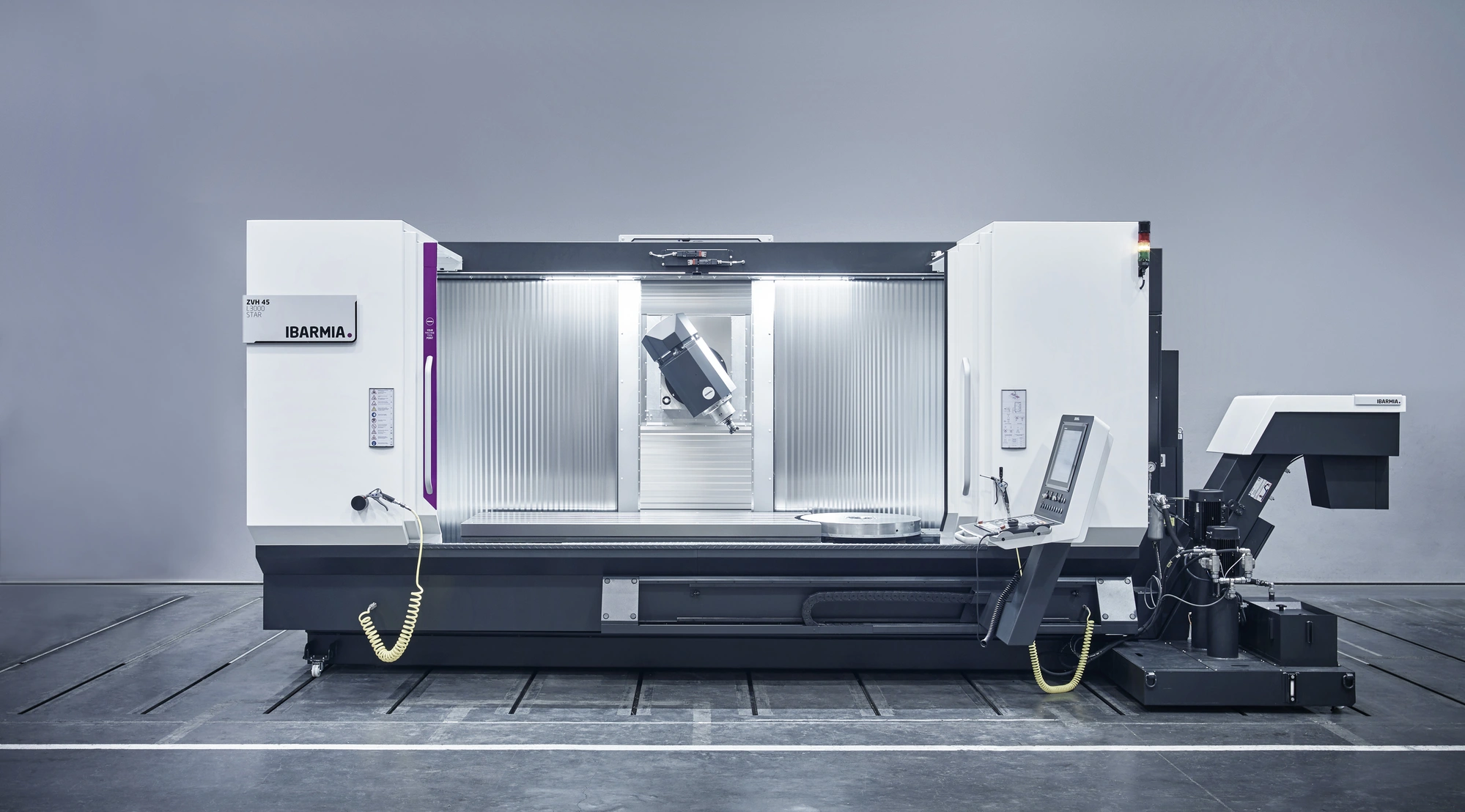

NEW IBARMIA ZVH 45/L3000 STAR

Specifications (subject to buyer verification):
Strokes:
X-axis, longitudinal: 3,000 mm
Z-axis, vertical: 800 mm
B-axis, NC Head tilting range: +/- 105º
Maximum swing diameter:: 1,100 mm

Working Table:
Length x width of the table: 3,000 mm x 850 mm
Number of T slots: 5
Size of the T slots: 1 x 18(H7) / 4 x 18(H12)
Maximum admissible load over the table: 1,500 Kg/m2
Distance from table surface to spindle nose V (min./max.): 0/800 mm
Distance from table surface to spindle nose H (min./max.): 360/1,166 mm

Main spindle and headstock:
Taper of the tool holder axis: ISO 40
Tool holder pull stud according to Norm: DIN 69872
Electrospindle:
Power in service S1 (100%): 27 kW
Power in service S6 (40%): 39 kW
Total available power from: 2,000 RPM
Torque in service S1 (100%): 130 Nm
Torque in service S6 (40%): 187 Nm
Maximal rotation speed: 12,000 RPM

Capacity/Services:
Milling capacity in steel 600 N/mm2: 900 cm3/min
Drilling capacity in steel 600 N/mm2 : V 50 mm
Tapping capacity in steel 600 N/mm2: M33

Feeds:
Digital servomotors
Feed thrust X,Y,Z 100%: 12,020/8,500/8,558 N
Feed thrust X,Y,Z 140% (S3): 19,120/16,839/16,495 N
Rapid feed for positioning
X-axis: 40 m/min
Y-axis: 40 m/min
Z-axis: 40 m/min

Maximum working feed
X-axis: 30 m/min
Y-axis: 30 m/min
Z-axis: 30 m/min

Guide ways and ball screw
Number of rollers:
X-axis: 2 + 2
Y-axis: 2 + 2
Z-axis: 2 + 2
Distance between linear guides (mm):
X-axis: 980 mm
Y-axis: 600 mm
Z-axis: 590 mm
Dimensions of rollers: 45 mm
Dimensions of ball screw:
X-axis: D 63/ P 30 mm
Y-axis: D 40/ P 20 mm
Z-axis: D 40/ P 20 mm

Measuring system
Resolution: 1 цm
Positioning accuracy Tp X-Y-Z (1000 mm): 10 цm
Positioning repeatibility: 5 цm
Positioning accuracy Tp B: 8"

Tool magazine and automatic changer
Number of positions of the magazine:: 40
Maximal tool diameter:
-Previous and posterior taken position: 90 mm
-Previous and posterior free position: 150 mm
Maximum tool length: 350 mm
Maximum tool weight: 8 Kg
Tool management system: Random
Tool changing time: 8 S
Magazine taper: ISO 40 (DIN 69871)
Tool holder pull stud according to Norm: ISO 40 (DIN 69872)//BT 40 (JIS 6339)

Machine dimensions: 6,150 mm x 4,062 mm x 3,067 mm

Equipped With (subject to buyer verification):
Air through spindle. Rotary joint valid for machining with air blowing without limits
Rotary axis calibration. Fanuc
Voltage transformer and 60 Hz for machines STAR and Extreme (40-45-48)
Machine 3D. CAD-CAM
Rotary table model TB500H 180H-L (plate diameter 500 mm and through hole diameter 180 mm
Manual tailstock for rotary table D500/H335
Preparation for piece meter
