HYD-MECH S23A Automatic Horizontal Band Saw 2012’ #8319
| Rect-Cap (H) | 16" | 406.4 mm |
| Rect-Cap (W) | 18" | 457.2 mm |
| Rounds-Cap | 16" | 406.4 mm |
| Square-Cap | 16" | 406.4 mm |
| Power | 5 hp | 3.7 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 1.25" | 31.75 mm |
| Blade Length | 15.6" | 396.24 mm |
| Dimensions | 100” x 95” x 61” H | 100” x 95” x 61” H |
| Weight | 4500 Lbs. | 4500 Lbs. |

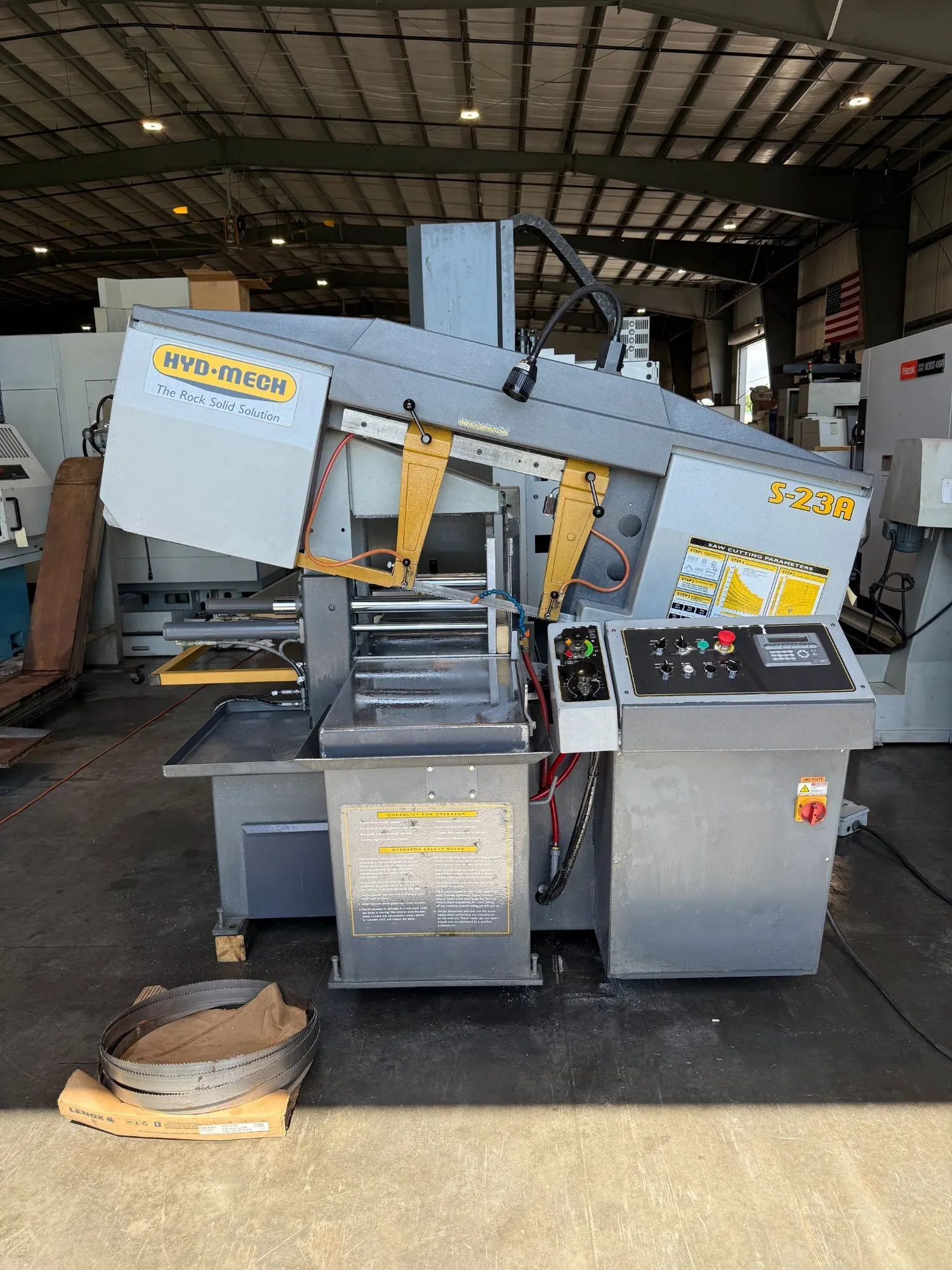

HYD-MECH S23A Automatic Horizontal Band Saw 2012’ #8319
Reference # 8319
Model # S23A
Serial # XA0212673FD
Year of manufacture- 2012’
Capacity @ 90°- Rectangle 16” x 20” / Rounds 16”
Capacity @ 45°- Rectangle 16” x 14” / Rounds 14”
Capacity @ 30°- Rectangle 16” x 8-1/2” / Rounds 8-1/2”
Blade size- 1-1/4” x 16’10”
Blade speeds- 75 – 350 S.F.M.
Work load- 5,000 Lbs.
Table height- 33”
PLC Control that is programmable and can store up to 100 jobs
Work light
Variable vise pressure
Blade brush
8.8 H.P. Motor
Machine is wired for 230 Volt / 3 phase / 60 H.Z.
Machine weight- 4500 Lbs.
Machine dimensions- 100” x 95” x 61” H
