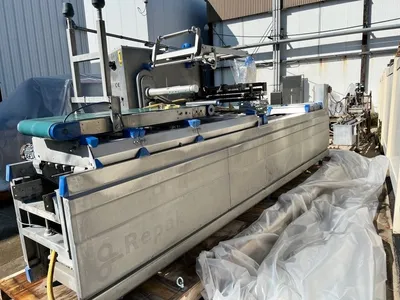

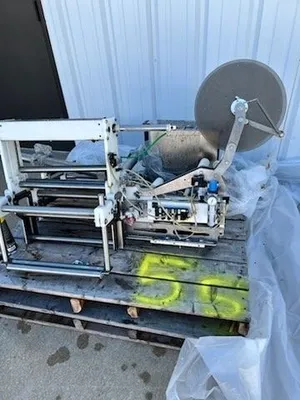

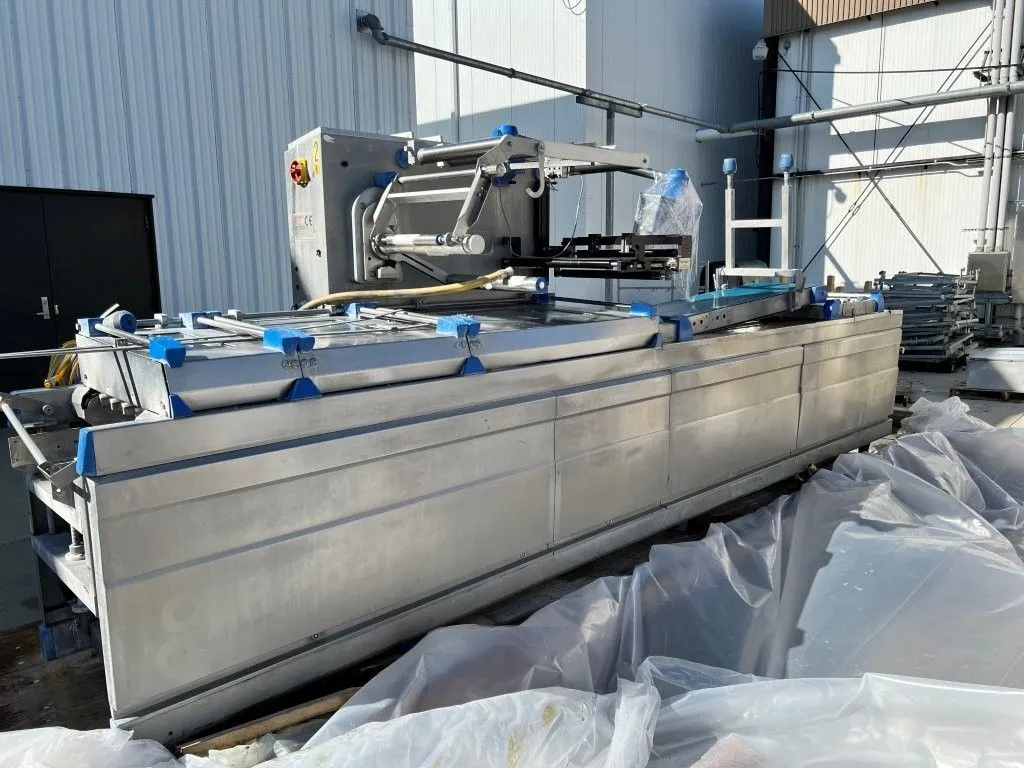

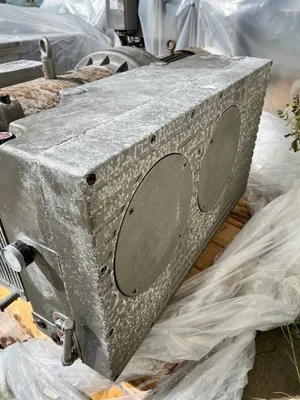

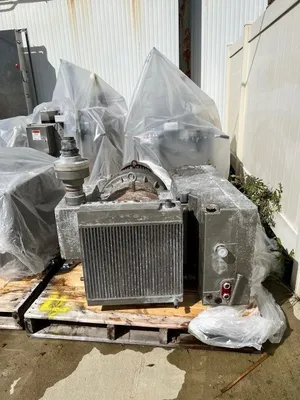

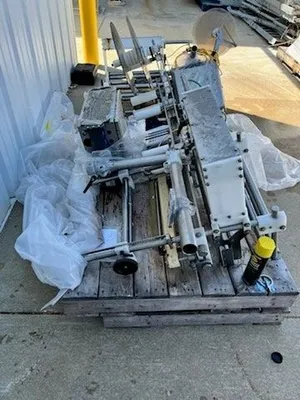

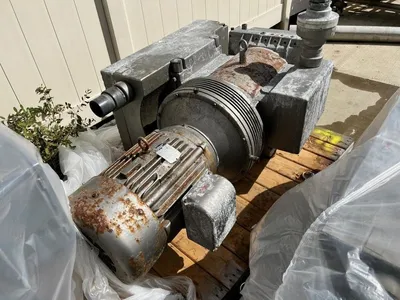

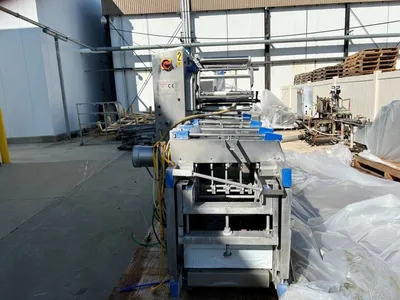

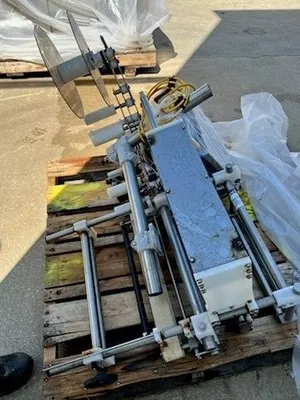

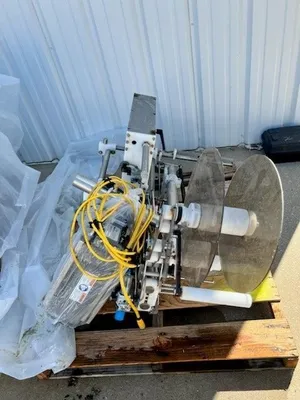

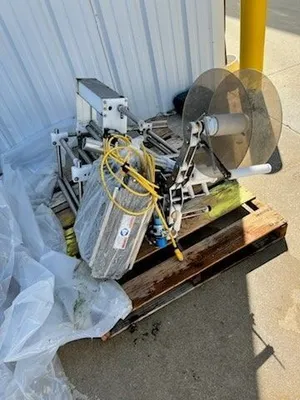

USED Repak RE 25

Overview
Manufacturer:
REPAK
Model:
RE25
Stock #:
10335
Description

Repak RE 25 Rollstock, Stainless steel construction, free loading area: 800-3000 mm, Working height: 950-1040 mm, film width: 300-650 mm, max stroke length: 600 mm, max packaging height: 160 mm, 220V/3PH/60HZ.
Tooling:
1. Master Die Set 430 mm x 300mm INdex
Evacuation through Top Die (NTW)
With Bronze brushings
1 Total Seal Plate 300 mm Plate
2. Die Divider Set 2.1 for use in Master Die 430mm x 300mm
Pocket Dims: 136mm x 283mm (5.35" x 11.14")
Package Dims: 151mm x 300mm (5.95" x 11.81")
Packs per Index: 2 (2 Tracks, 1 Row)
3. Die Divider Set 2.2 for use in Master Die 430mm x 300mm
Pocket Dims: 136mm x 133mm (5.35" x 5.24"")
Package Dims: 151mm x 150mm (5.95" x 5.90")
Packs per Index: 4 (2 Tracks, 2 Row)
4. Die Divider Set 4.2 for use in Master Die 430mm x 300mm
Pocket Dims: 85mm x 133mm (3.35" x 5.24"")
Package Dims: 100mm x 150mm (3.94" x 5.90")
Packs per Index: 8 (4 Tracks, 2 Row)

Specifications
Dimensions473" x 49 x 79473" x 49 x 79
Weight7717 lbs7717 lbs
