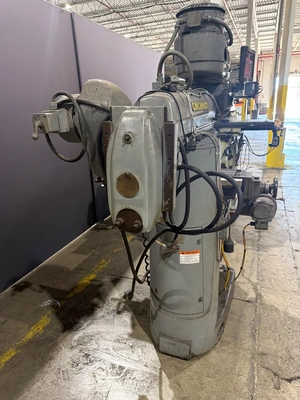

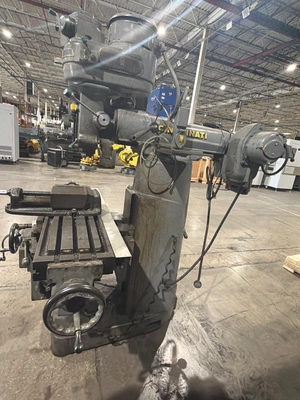

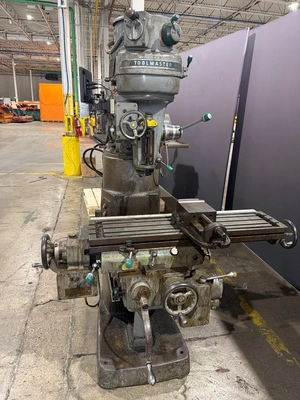

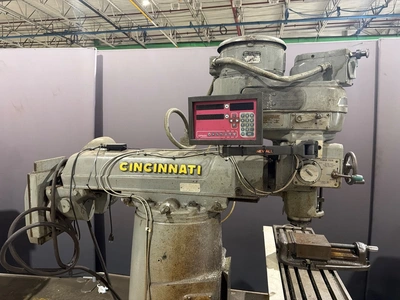

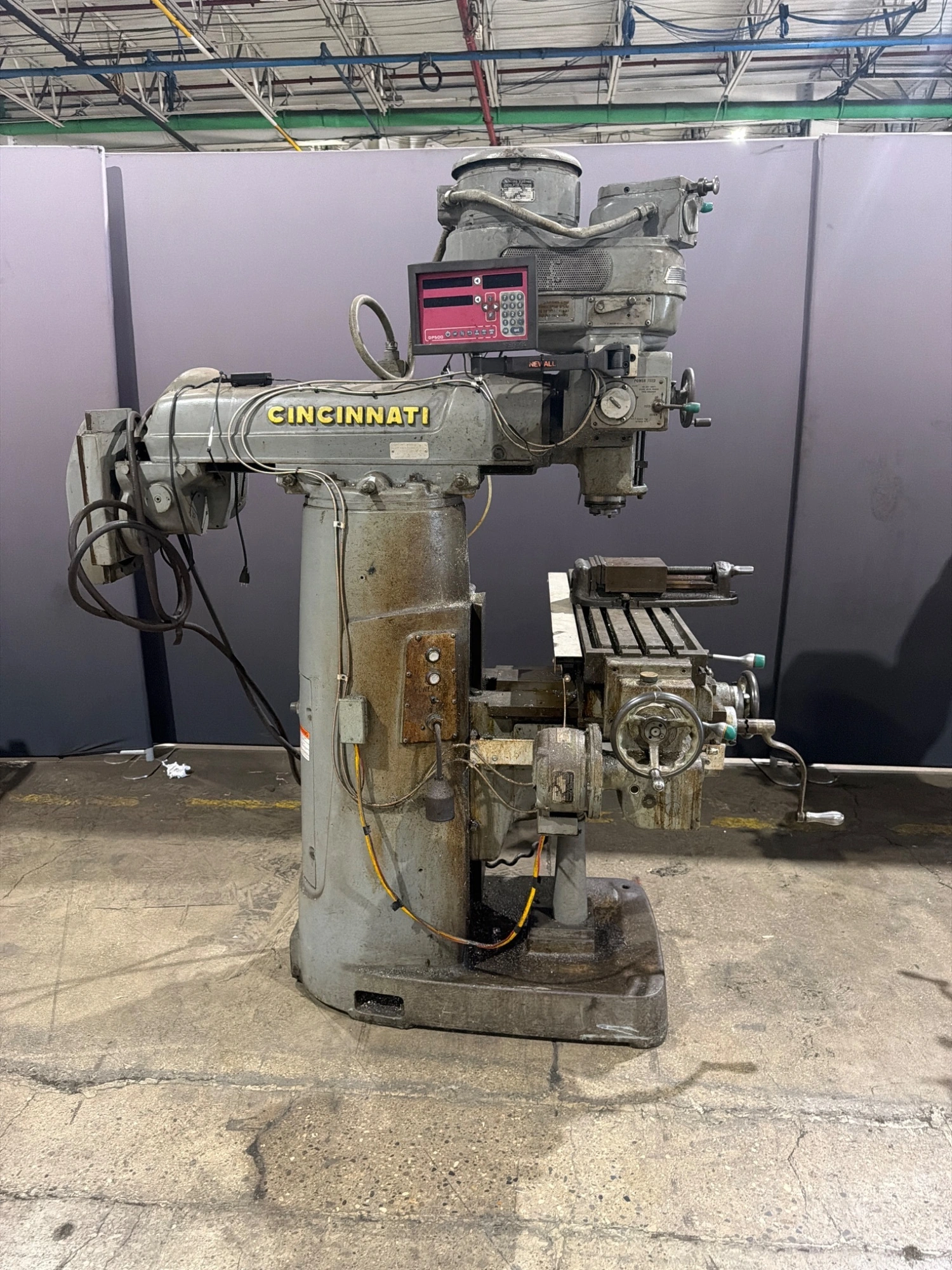

This listing is for a USED CINCINNATI 2437 Toolmaster vertical milling machine. This machine performs milling, drilling, and machining operations using a vertical spindle and manually controlled knee-and-table assembly. Key capabilities include a 2 horsepower spindle drive, 208–220/440V three phase electrical operation, and reinforced cast construction designed for toolroom and production machining.
| Table-W | 42" | 1,066.8 mm |
| Table-L | 10" | 254 mm |
| Travel-Long | 22" | 558.8 mm |
| Travel-Cross | 10" | 254 mm |
| Power | 1 hp | 0.7 kW |
| RPM | 3,800 RPM | 3,800 RPM |
| Dimensions | 84 X 66 X 81 | 84 X 66 X 81 |
| Weight | 3150 LBS | 3150 LBS |
Manufacturer: Cincinnati Milling Machine Co.
Model/Series: Toolmaster
Model: 2437
Condition: USED
YOM: n/a
Device Type: Vertical Milling Machine
Function: Performs milling, drilling, and machining operations
Motor:
- 2 HP
Electrical:
- Voltage: 208–220 / 440 V
- Phase: 3 Phase
- Frequency: 60 Hz
- Amperage: 6.4 / 3.2 A
Motor Speed:
- 1725 / 1425 RPM
Control Voltage:
- 110 V
Configuration:
- Vertical spindle head
- Knee-type mill
- Manual X/Y/Z table movement

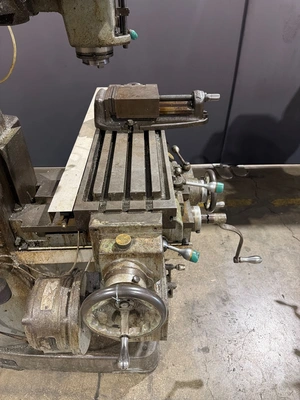

Table:
- T-slot worktable
- Vise included
Mounting: Floor-standing
Serial Numbers:

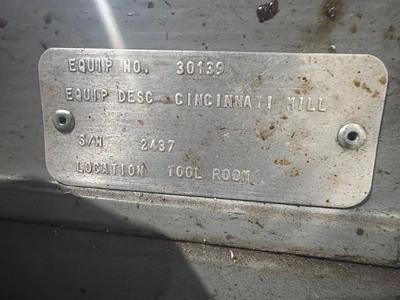

- Machine Plate: 2437

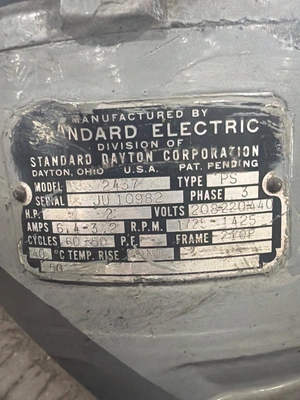

- Motor Plate: JU10982

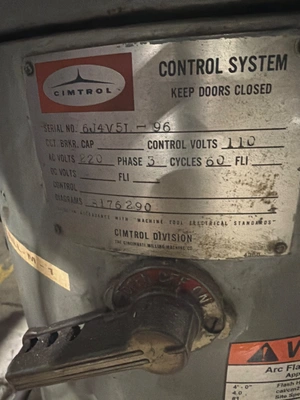

- CimtroL Plate: 6J4V51-96
Country of Manufacture: USA
