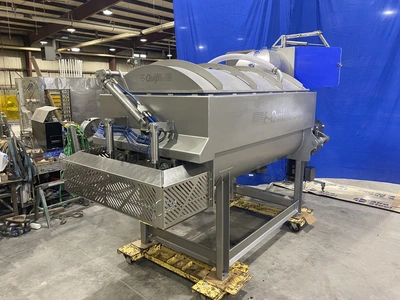

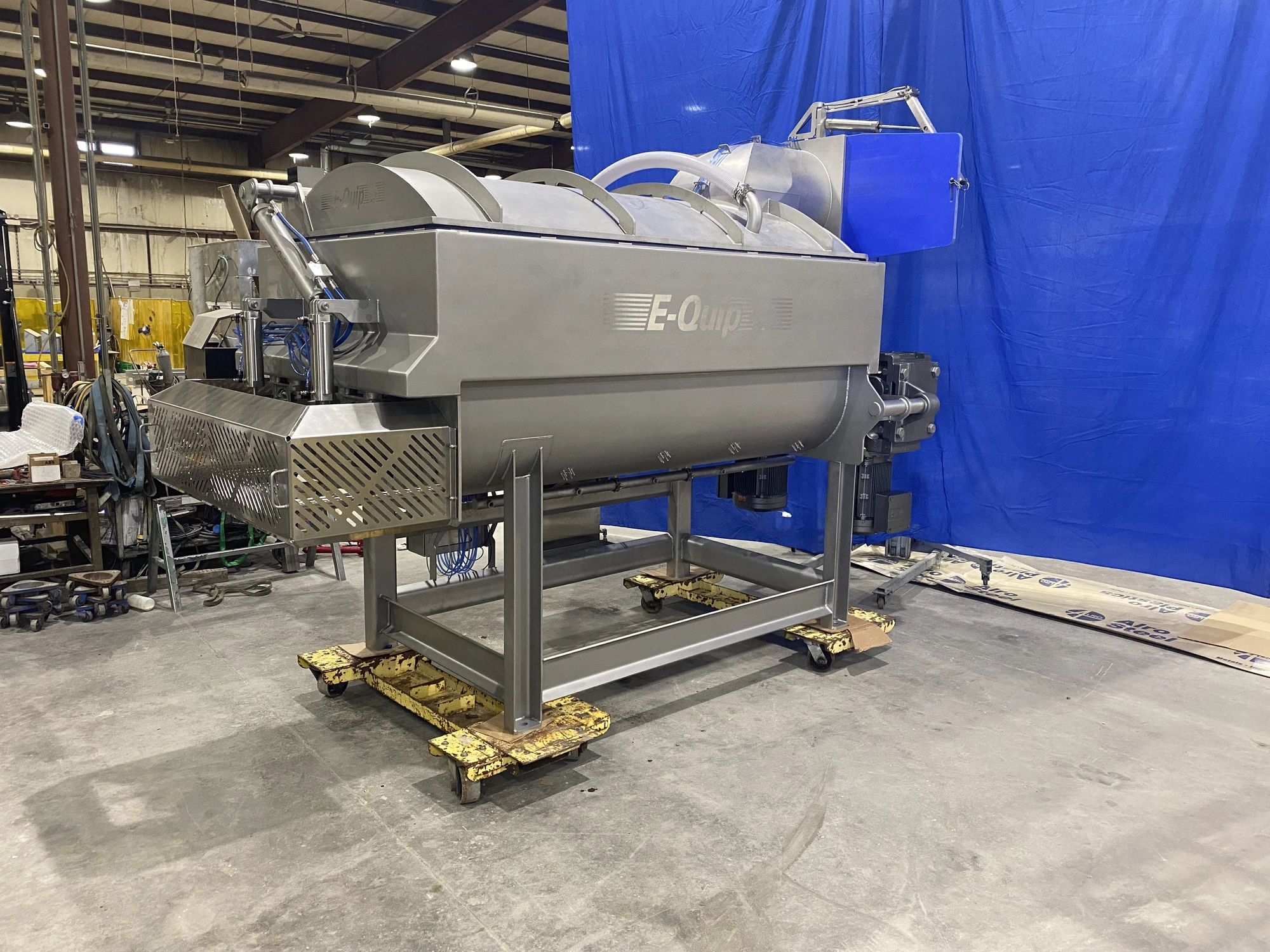

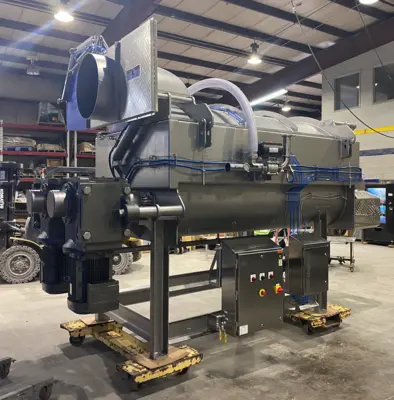

NEW 2024 E-QUIP 307

E-quip 307 blender, 5,000 lbs. capacity (based on 55lbs per cubic ft.), (2) 25hp drives, solid main shafts and one-piece paddles, dual end pneumatic discharge doors with mechanical locks, removable seals

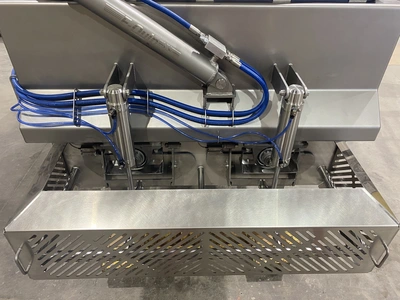

safety guard for discharge doors with safety interlock, bolt in place bar grating over mixer, domed vacuum pivoting lid with removable seals, safety interlock and pneumatically operated exhaust flap mounted to mixer exhaust port, busch 10hp vacuum pump & clear liquid separator, 304 stainless steel construction, interior welds ground smooth & glass bead finish, nema 4 ss pneumatic valve enclosure mounted under mixer, nema 4 enclosure with ab touch screen, plc, reversing contactors for mixer drives & vacuum pump, vfd for blower & main disconnect, fourteen (14) point bottom injection system with changeable nozzles inserts, one (1) header with flex lines to nozzles, one (1) co2 basic manifold, bottom injection controls integrated into plc and touch screen of mixer control panel, 480v/3ph/60hz.

exclusions: freight, exhaust systems, cryogenic piping & installation
