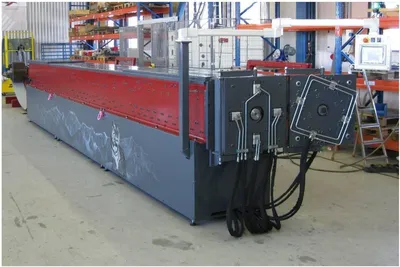

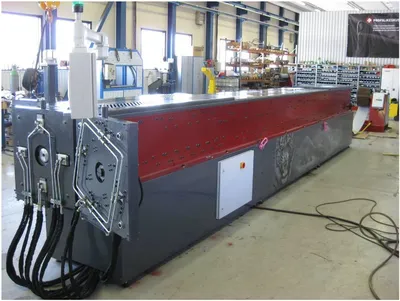

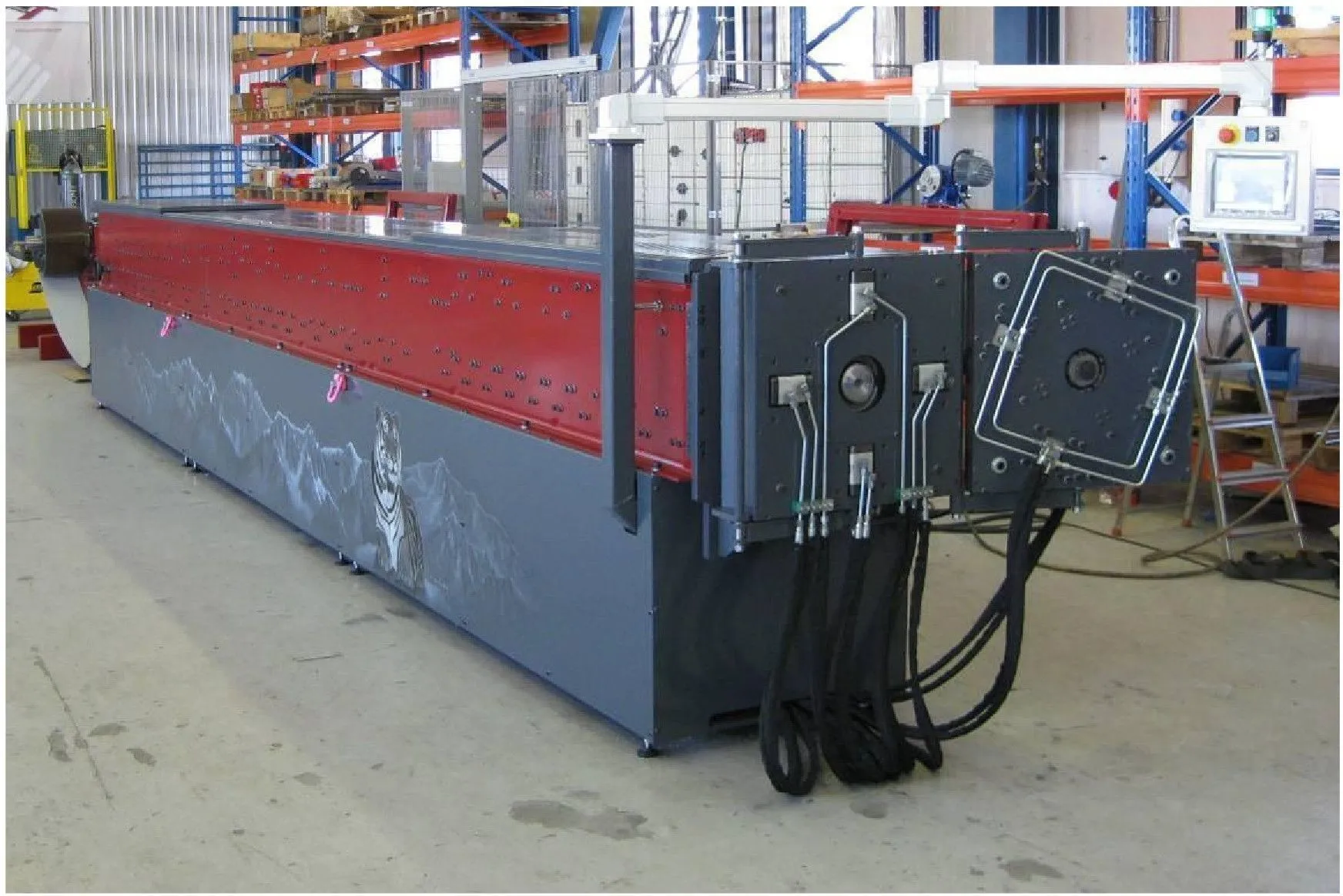

USED PROFIILIKESKUS ROUND DOWNSPOUT MACHINE 4 INCH

The Profiilikeskus 4″ Round Downspout Machine is a high-speed automated roll forming system designed for producing round downspouts and crimped elbows. This all-in-one machine combines straight downspout production, elbow forming, and end reducing into a single efficient line for gutter and roofing manufacturers.

Manufacturer: Profiilikeskus
Machine Type: Round Downspout Machine
Downspout Size: Ø 4″
Material Type: DX52 / DX53 Steel
Material Thickness: 0.5 mm
Machine Dimensions: 10000 x 700 x 1200 mm
Production Speed: 45 m/min
Elbow Production Capacity: 500 elbows/hour
Servo Drive Motor: 4.4 kW

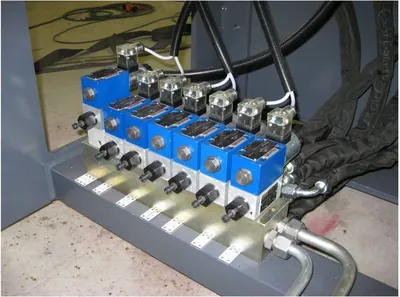

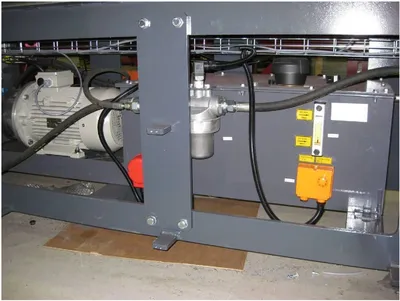

Hydraulic System: 4 kW / 125 bar
Power Requirement: 3x480V, 60 Hz
Programmable Product Storage: 100 programs
Programmable Lengths: Inches or millimeters
Compatible Elbow Angles: 45°, 60°, 90°
Decoiler Capacity: 2 Ton
Maximum Coil Width: 400 mm
Decoiler Expansion Range: 370 – 630 mm
Decoiler Power: 1.5 kW
Decoiler Electrical Requirement: 3x600V 16 Amp 60 Hz

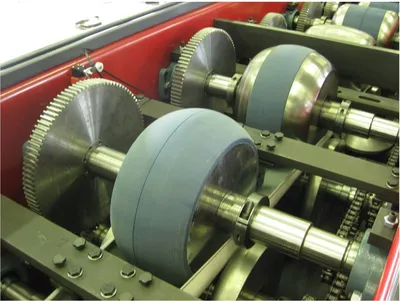

Integrated Downspout Roll Forming Section

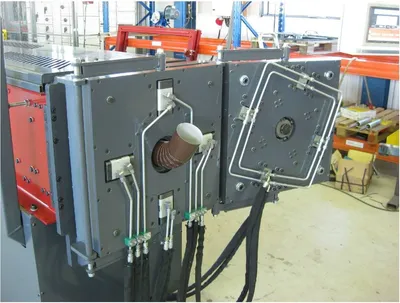

Integrated Elbow Forming Section
End Reducer Section
Hydraulic Post Cutter
Hydraulic Crimping System
Touchscreen Programmable Control
Servo Motor Drive System

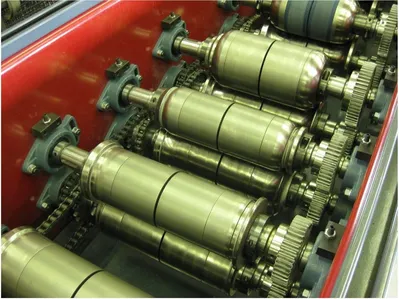

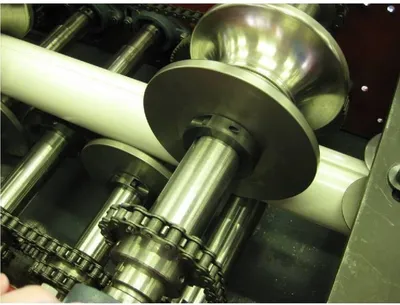

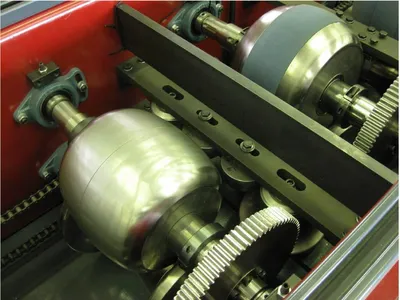

Chain Driven Roll Forming System
Product Program Storage
2 Ton Motorized Decoiler
Automatic Sensor Arm Coil Feed System
Mechanical Coil Tightening System
