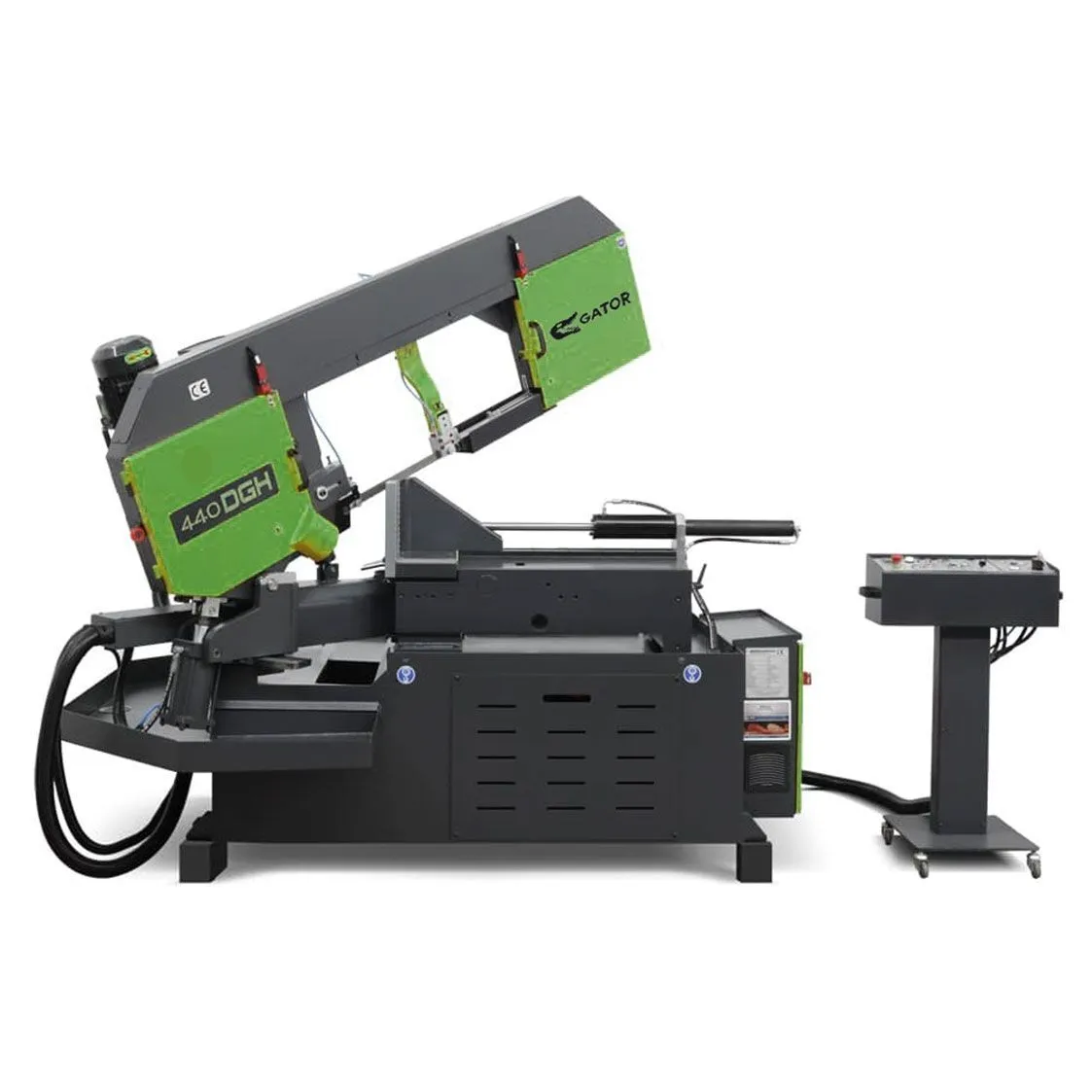

Upgrade your cutting efficiency with the new GATOR FAB GFSY-440DGH 17 in. Semi-Automatic Double Miter Bandsaw. With a robust 4 Hp blade motor and versatile cutting angles, this horizontal bandsaw handles materials up to 17.3" at 0°.
| Round at 0° | 17.3" | 439.42 mm |
| Square at 0° | 17.3 | 17.3 |
| Rectangle at 0° | 24 x 17.3 in. | 24 x 17.3 in. |
| Round at 45° | 16" | 406.4 mm |
| Square at 45° | 16 in. | 16 in. |
| Rectangle at 45° | 16.14 x 17.32 in. | 16.14 x 17.32 in. |
| Round at -45° | 16" | 406.4 mm |
| Rectangle at -45° | 16.14 x 17.32 in. | 16.14 x 17.32 in. |
| Square at -45° | 16" | 406.4 mm |
| Round at 60° | 12.6" | 320.04 mm |
| Square at 60° | 9.84 in. | 9.84 in. |
| Rectangle at 60° | 9.84 x 17.32 in. | 9.84 x 17.32 in. |
| Round at -60° | 12.6" | 320.04 mm |
| Rectangle at -60° | 11.22 x 17.32 in. | 11.22 x 17.32 in. |
| Square at -60° | 11.22" | 284.99 mm |
| Round at 30° | 17.3" | 439.42 mm |
| Rectangle at 30° | 19.69 x 17.32 in. | 19.69 x 17.32 in. |
| Square at 30° | 17.3" | 439.42 mm |
| Round at -30° | 17.3" | 439.42 mm |
| Rectangle at -30° | 19.69 x 17.32 in. | 19.69 x 17.32 in. |
| Square at -30° | 17.3" | 439.42 mm |
| Blade Size | 204.7 x 1.34 x 0.043 in. | 204.7 x 1.34 x 0.043 in. |
| Blade Speed | 65.6 - 328.1 ft/min | 65.6 - 328.1 ft/min |
| Blade Motor | 4 Hp | 4 Hp |
| Hydraulic Motor | 0.74 Hp | 0.74 Hp |
| Coolant Motor | 0.16 Hp | 0.16 Hp |
| Material Working Height (from floor to table top) | 33.9" | 861.06 mm |
| Dimensions | 110.2 x 47.6 x 73.6 in. | 110.2 x 47.6 x 73.6 in. |
| Weight | 3,395.2 lbs | 3,395.2 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
