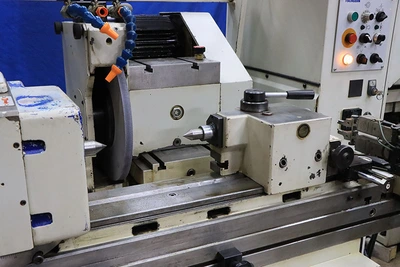

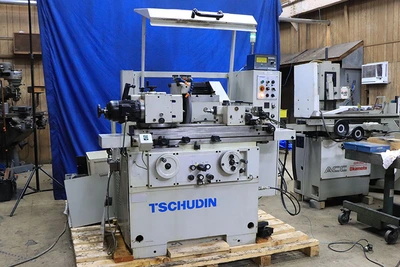

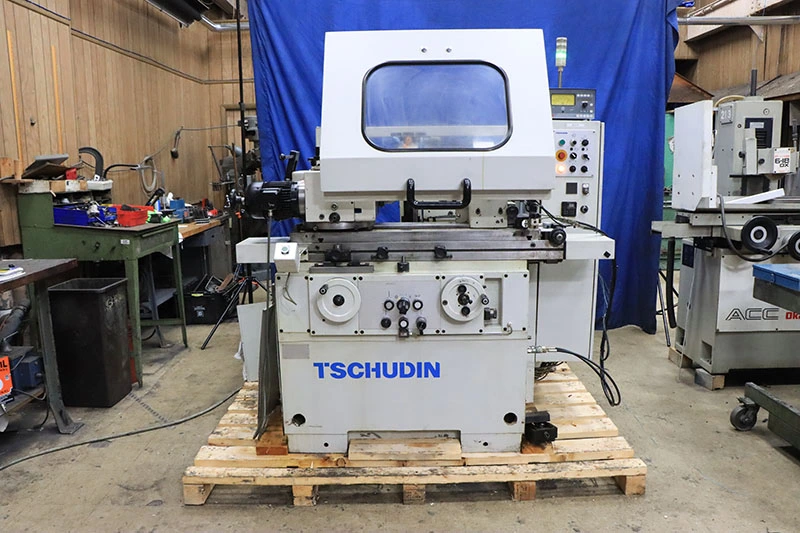

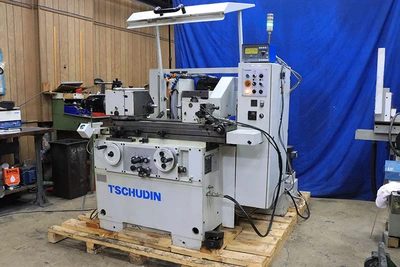

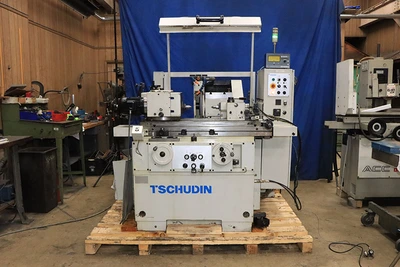

USED 1998 Tschudin HTG-310, 1998, AUTO CYCLE,MARPOSS GAGEI,

           8" X 13.4" TSCHUDIN (HTT)

           "SWISS" SUPER-PRECISION

         UNIVERSAL CYLINDRICAL GRINDER,

      WITH MARPOSS IN-PROCESS GAGING SYSTEM

MODEL:  HTG-310     S/N:  31604      NEW:  05/05/1998

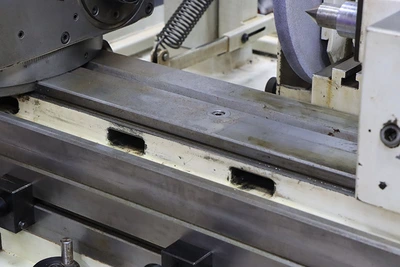

TABLE:

  SWING OVER TABLE .............. 8"

  DISTANCE BETWEEN CENTERS ...... 13.4"

  TABLE SPEED ................... 0 TO 195" IPM

  SWIVELLING RANGE .............. +/- 11 DEGREES

WHEELHEAD:

  WHEEL SIZE .................... 14"DIA. X 2"W X 5"BORE

  SWIVELLING RANGE .............. +/- 5 DEGREES

  MOTOR ......................... 4 HP

  RAPID APPROACH ................ 1-1/2"

  INFEED-AUTOMATIC .............. 0 TO .050" ON DIA.

  INFEED SPEED, MAXIMUM ......... 1.2"/MIN.

  SPARKOUT ...................... 2 TO 30 SECONDS

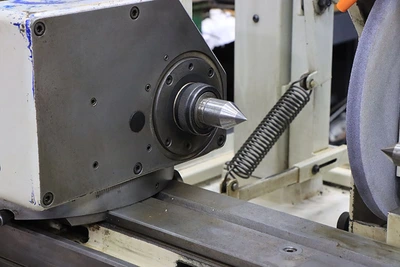

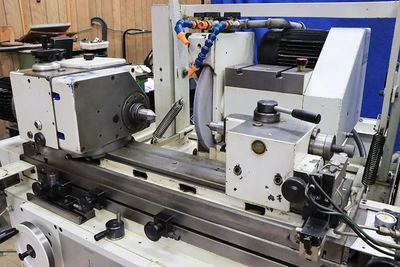

WORKHEAD:

  SPINDLE TAPER ................. #5MT

  SWIVELLING RANGE .............. 360 DEGREES

  INF. VAR. SPINDLE SPEEDS ...... 50 TO 500 RPM

TAILSTOCK:

  TAPER OF CENTER BORE .......... #3MT

  TRAVEL OF CENTER .............. 0.8"

APPROXIMATE WEIGHT .............. 4,000 LBS

STANDARD FEATURES/ATTRIBUTES:

  TSCHUDIN HYDRODYNAMIC TYPE CYLINDRICAL BRONZE TO

   STEEL BEARING WHEELHEAD DESIGN

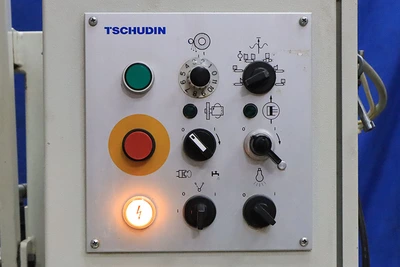

  SIMPLE ONE-KNOB CONTROL INITIATES ALL THE SETTINGS

   FOR TRAVERSE & PLUNGE GRINDING CYCLES

  HYDRAULIC OPERATION FEATURING:

   -POWER TABLE TRAVERSE

   -AUTOMATIC INFEED

   -PLUNGE INFEED

   -RAPID WHEELHEAD ADVANCE AND RETRACTION

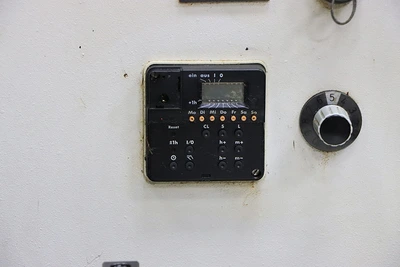

  SPARKOUT TIMER

  DUAL LIVE/DEAD WORKHEAD SPINDLE

  A .00002" GRADUATED DIAL SETS POSITIVE STOP DIAMETER

  3/60/230-460 VOLT ELECTRICS

EQUIPPED WITH:

DUAL RATE AUTOMATIC PLUNGE INFEED OPTION,

 "COARSE" & "FINE" CYCLE FEED OPTION

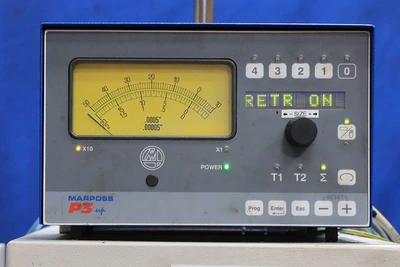

"MARPOSS" MODEL P3UP MEASUREMENT SYSTEM FOR

 GRINDING MACHINES, WITH "MARPOSS" MODEL

 UNIMAR S MEASURING HEAD, FOR ULTRA-PRECISION

 SUB-MICRON TOLERANCES.

"FLOW-CON" "MADE IN USA" COOLANT SYSTEM,

  WITH MOTORIZED PAPER FILTRATION.

OUR MACHINE WAS USED WITH "NITRITE-FREE, LONG LIFE

 ANTI-CORROSION, NON-FOAMING COOLANT.

"BUCK" 6-JAW CHUCK, 7" DIAMETER

DIAL INDICATOR FOR TABLE TAPER ADJUSTMENT

TABLE MOUNTED DRESSER

TSCHUDIN "SUPER-PRECISION" WORKHEAD OPTION.

 THIS WAS A FACTORY OPTION THAT PROVIDED FOR

 EVEN HIGHER PRECISION WORK THAN A STANDARD

 TSCHUDIN WORKHEAD.  THIS MACHINE WHEN IT LEFT

 THE FACTORY IN SWITZERLAND HAD A CONCENTRICITY

 OF 0.00035mm, WHICH IS 0.00001378".

WORKHEAD HAS A QUICK ACTING COLLET CLOSER, "W20" COLLETS.

CENTER IN WORKHEAD

WORKHEAD SPINDLE IS A LARGE TAPER, No. 5 MT.

 THIS ALLOWS ONE TO USE A 5C COLLET WITH AN

 ATTACHMENT THRU THE SPINDLE, EITHER A

 DRAW BAR OR A QUICK ACTING LEVER TYPE UNIT.

 WE CAN PROVIDE THIS ATTACHMENT FROM A SUPPLIER.

 P.O.R.

DIAL INDICATOR FOR TABLE SWIVEL

FINE TAPER ADJUSTMENT OPTION ON THE TAILSTOCK

MANUAL COARSE ADJUSTMENT OPTION FOR THE WHEELHEAD,

 WITH RAPID MOVEMENT BY A LEVER

COMPLETE MACHINE MANUALS, AND ELECTRICAL DIAGRAMS

ELECTRICAL CABINET ON MACHINE (NOT SEPARATE)

ELECTRICAL CONTENTS IN CABINET, ALL ORIGINAL

WHEELHEAD MOTOR, 3 KW (4 H.P.), 3/60/230-460 VOLTS

MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS,

 5.6 KVA SERVICE REQUIRED

** MADE IN GRENCHEN, SWITZERLAND **

LINK TO VIDEO: https://youtu.be/kIQyxq79HiI?si=UdG_Ts-6vRGegKqJ

** ORIGINAL & BEAUTIFUL - EXCEPTIONAL CONDITION & APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
