1.25" Width 9" Stroke Morrison K KEYSEATER, Centering Vee, Cutter Bars, 2HP,

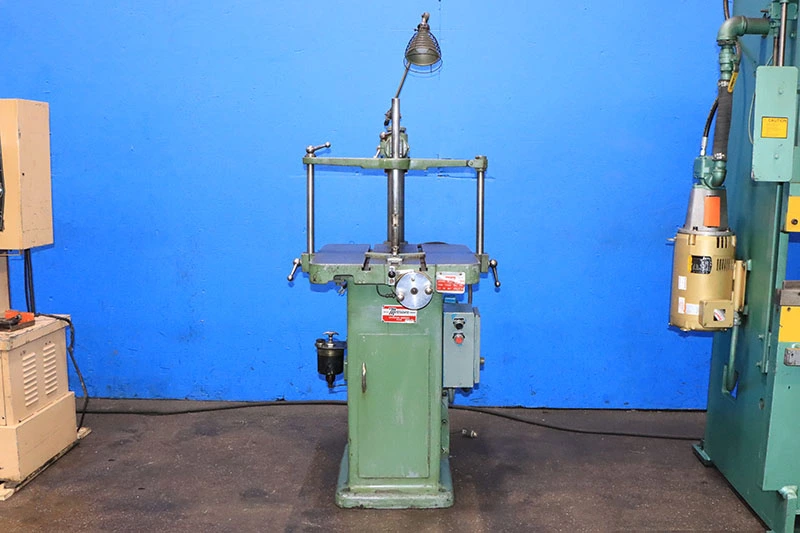

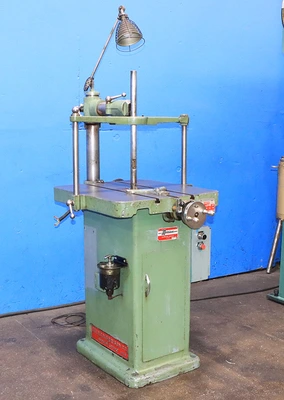

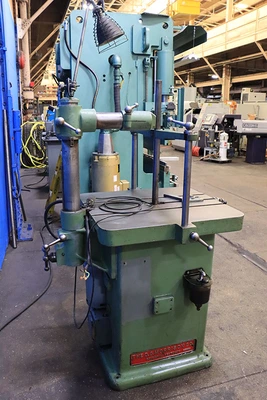

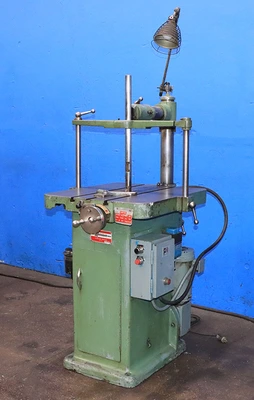

1-1/4" D.C. MORRISON MECHANICAL KEYSEATER

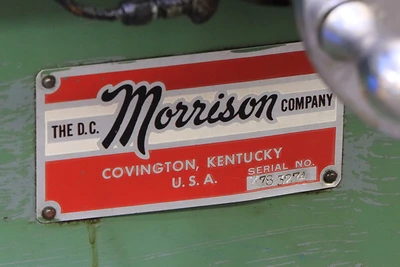

MODEL K, S/N: K78374, NEW: 1978
SPECIFICATIONS:
CUTS KEYWAYS .................... 1/16" TO 1-1/4" WIDE
MAXIMUM LENGTH OF CUT ........... 9"
LENGTH OF STROKE: ............... 3", 4-1/2", 6", 7-1/2", 9"
STROKES PER MINUTE .............. 34
FEEDS (3) ....................... .002", .004", .006"
LARGEST DIAMETER CUTTER BAR ..... 1-1/4"
DISTANCE FROM 1"
CUTTER TO COLUMN ............ 16-1/4"
MAXIMUM DISTANCE
UNDER STANDARD CLAMPS ....... 14"
DISTANCE BETWEEN CLAMPS ......... 25-1/2"
TABLE SIZE ...................... 24" X 27"
APPROXIMATE WEIGHT .............. 1,150 LBS.
EQUIPPED WITH:

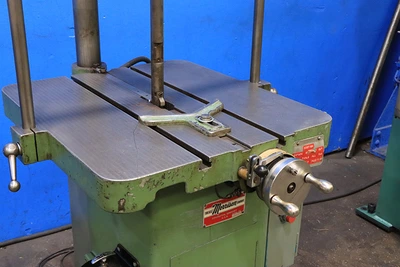

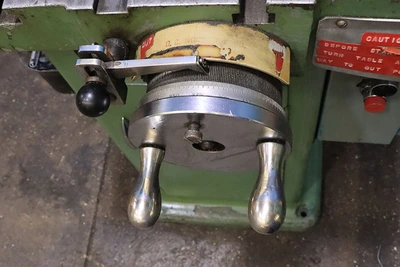

- AUTOMATIC TABLE FEED AND STOP WITH TWO T-SLOTS
- CENTERING VEE
- SWINGING CLAMP BAR

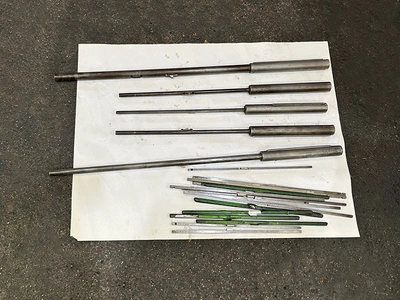

- MULTIPLE CUTTER BARS

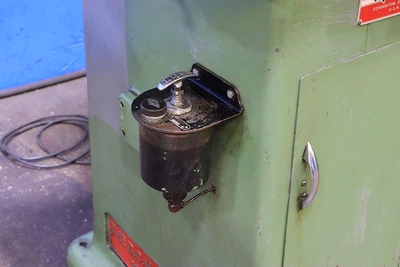

- BIJUR ONE-SHOT LUBRICATION SYSTEM

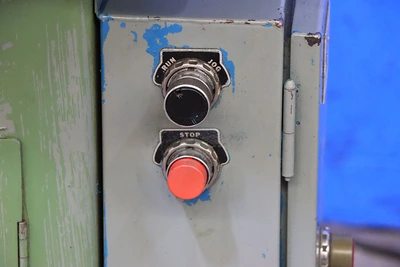

- 2 HORSE POWER DRIVE MOTOR W/ START, STOP & JOG
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
FOR MORE INFORMATION: Call David at 973-497-7570
