USED 2016 Leadwell MCV-1300-#50 Taper, BoxWays,, 2-Speed Geared Hd,

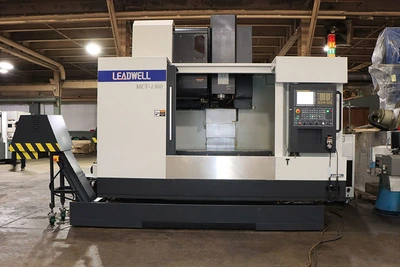

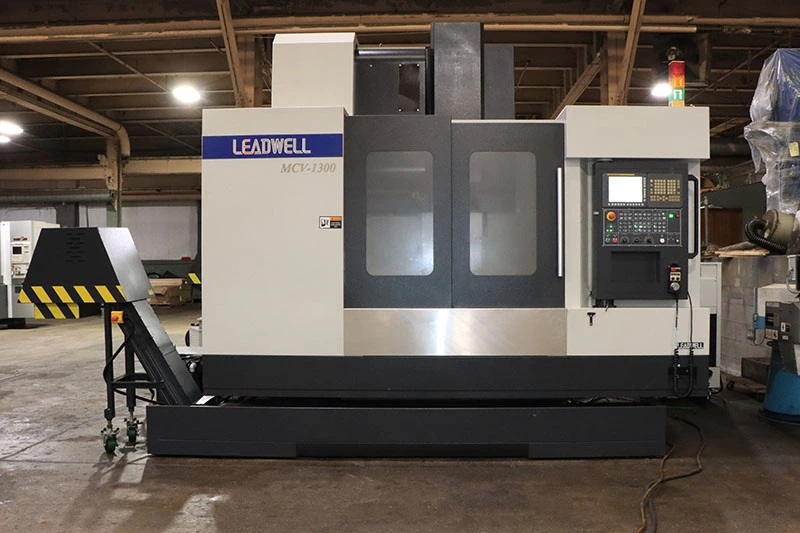

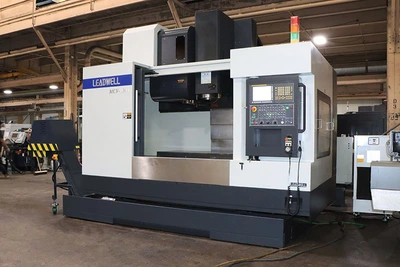

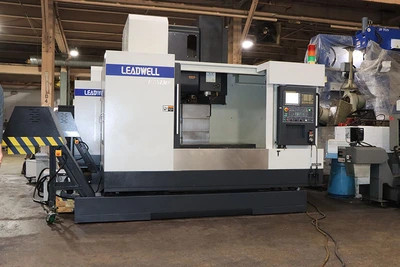

LEADWELL VERTICAL MACHINING CENTER

MODEL: MCV-1300,  S/N: L2TAD0690,  NEW: 2016

SPECIFICATIONS:

X-AXIS TRAVEL ........................... 51.1"

Y-AXIS TRAVEL ........................... 25"

Z-AXIS TRAVEL ........................... 24"

SPINDLE NOSE TO TABLE TOP ............... 5.9" TO 29.9"

DISTANCE FROM SPINDLE CENTER TO COLUMN .. 25"

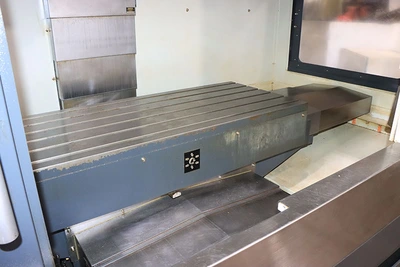

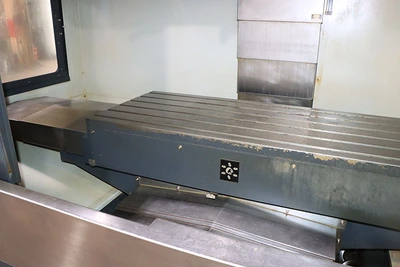

TABLE SIZE .............................. 56" X 24"

MAX TABLE LOAD .......................... 3,000 LBS

RAPID TRAVERSE RATES (X & Y/ Z) ......... 787 IPM

SPINDLE SPEEDS .......................... TO 10,000 RPM

SPINDLE MOTOR ........................... 34 HP

SPINDLE TAPER ........................... CAT 50

TOOL STORAGE CAPACITY ................... 24 TOOL

APPROX MCHINE DIMENSIONS ......... 140" X 141" X 113" TALL

APPROX MACHINE WEIGHT .................. 18,500 LBS

EQUIPPED WITH:

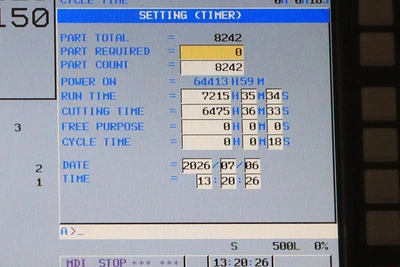

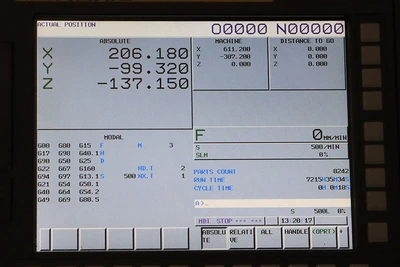

* FANUC MODEL: 0iMF CNC CONTROL w/MANUAL GUIDE i

* REMOTE JOG HANDLE (MPG)

* BOX WAYS ON ALL AXES

* TWO SPEED GEARBOX

* COOLANT TANK AND CHIP PAN, FLOOD COOLANT

* THROUGH SPINDLE COOLANT

* HIGH PREESURE COOLANT UNIT

* SPINDLE OIL CHILLER

* CHIP CONVEYOR

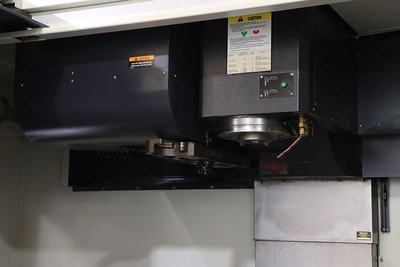

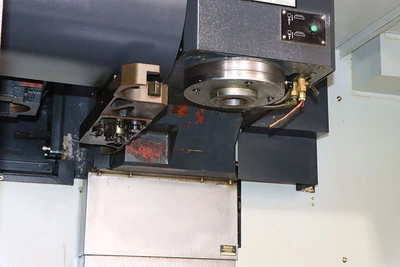

* 24 TOOL CAPACITY SIDEMOUNT CHANGER

* 34 HORSE POWER SPINDLE MOTOR

FOR MORE INFORMATION: Call David at 973-497-7570
