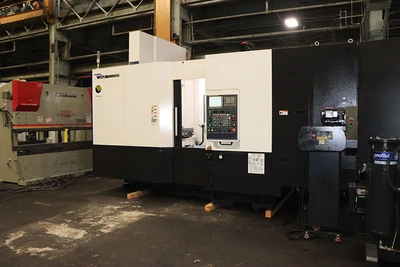

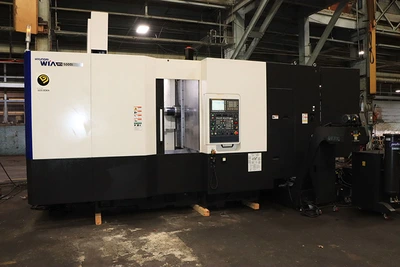

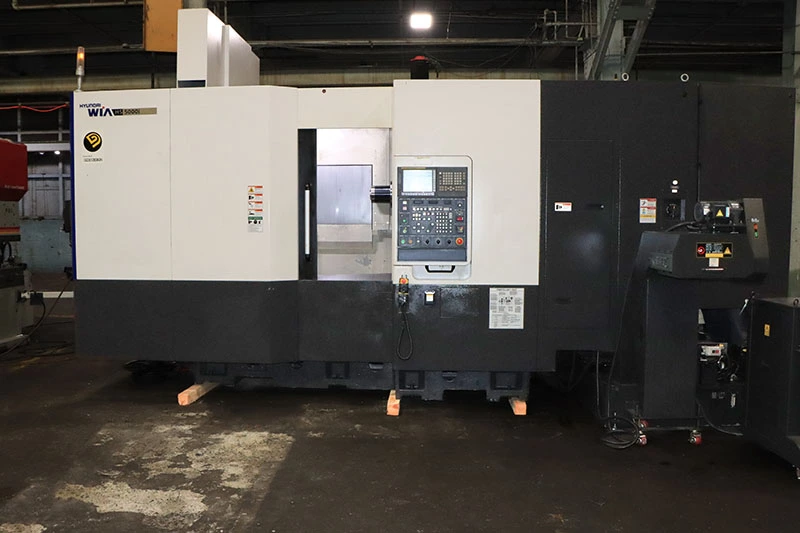

USED 2015 Hyundai-Wia HS5000i 4-Axis

33.5" X Axis 27.6" Y Axis Hyundai-Wia HS5000i 4-Axis HORZ MACHINING CENTER, Fanuc Series 32i B Control, CTS, 80 ATC, CT40BP,

HYUNDAI WIA CNC HORIZONTAL MACHINING CENTER

MODEL: HS5000I,  S/N: G3756-0117,  NEW: 2015

SPECIFICATIONS:

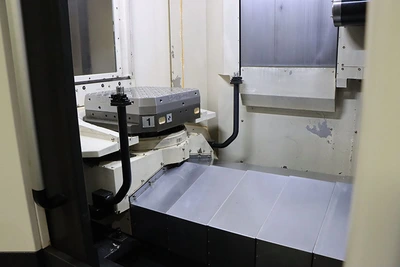

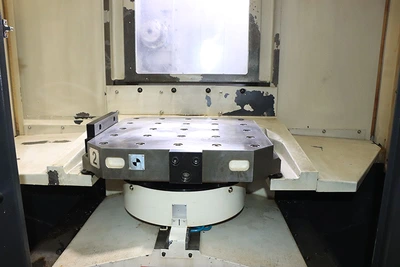

PALLET SIZE ..................... 19.7″ × 19.7″ / 500mm

NUMBER OF PALLETS ............... 2

MAXIMUM LOAD CAPACITY: .......... 1,102 LBS

MAXIMUM WORKING SIZE  ........... 30.7″ × 38.6″H

MIN. INDEXING ANGLE ............. 0.001°

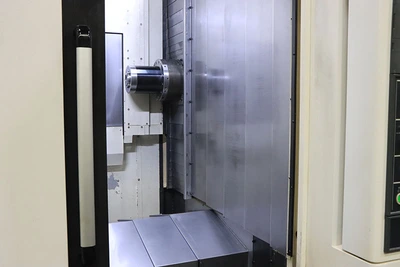

SPINDLE

SPINDLE TAPER ................... #40 CAT BIG PLUS

SPINDLE SPEED ................... 12,000 RPM

SPINDLE MOTOR OUTPUT ............ 33.5/30 HP

SPINDLE TORQUE (MAX./CONT.) ..... 123.1/70.1) LBF-FT

SPINDLE DRIVING METHOD .......... BUILT-IN

FEED

X-AXIS TRAVEL ................... 33.5” / 850mm

Y-AXIS TRAVEL ................... 27.6” / 700mm

Z-AXIS TRAVEL ................... 29.5” / 750mm

DISTANCE COLUMN TO SP. CENTER ... 2″ - 29.5″

DISTANCE TABLE SURFACE TO SP .... 5.9″ ~ 35.4″

RAPID TRAVERSE RATE (X/Y/Z) ..... 1,969/1,969/1,969 IPM

CUTTING FEED RATE ............... 393 IPM

ATC

NUMBER OF TOOLS: ................ 80

MAX. TOOL DIA.: ................. (W.T/W.O) 3″/5.5″

MAX. TOOL LENGTH: ............... 17.7″

MAX. TOOL WEIGHT: ............... 17.6 LBS

TOOL CHANGE TIME ................ T-T SEC 1.1 / C-C SEC 3.8

FLOOR SPACE (MACHINE ONLY) ...... 109″ × 192″ x 110.8”

APPROXIMATE WEIGHT .............. 33,069 LBS

EQUIPPED WITH:

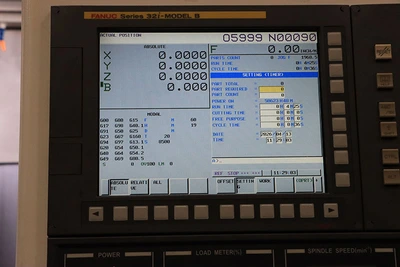

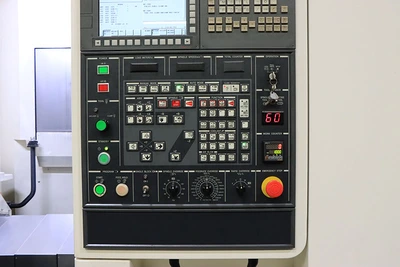

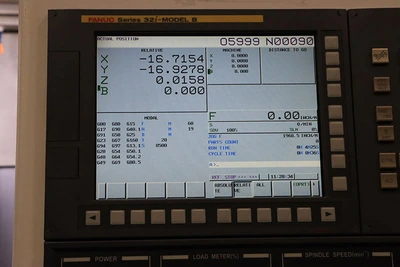

FANUC SERIES 32i MODEL B CONTROL

  EXPANDED MEMORY, HIGH SPEED HRV3 FUNCTION, 64 TOOL

  OFFSETS, AI CONTOUR CONTROL, HELICAL INTERPOLATION,

  THREAD CUT/SYNCHO FEED, RIGID TAPPING,

  COORIDINATE SYSTEM ROTATION, CUSTOM-B & EXECUTOR MACROS,

  SIMULTANEOUES CONTROLLED AXES EXPANSION, BACKGROUND EDIT

RENISHAW LASER TOOL SETTER

COOLANT THROUGH SPINDLE

HIGH PRESSURE COOLANT THROUGH SPINDLE PUMP 70BAR-1000PSI

80 TOOL CAPACITY

CHIP CONVEYOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call Sales at 973-497-7510
