USED PROFIILIKESKUS DOWNSPOUT ROLL FORMER 3X4 INCH
Overview
Description

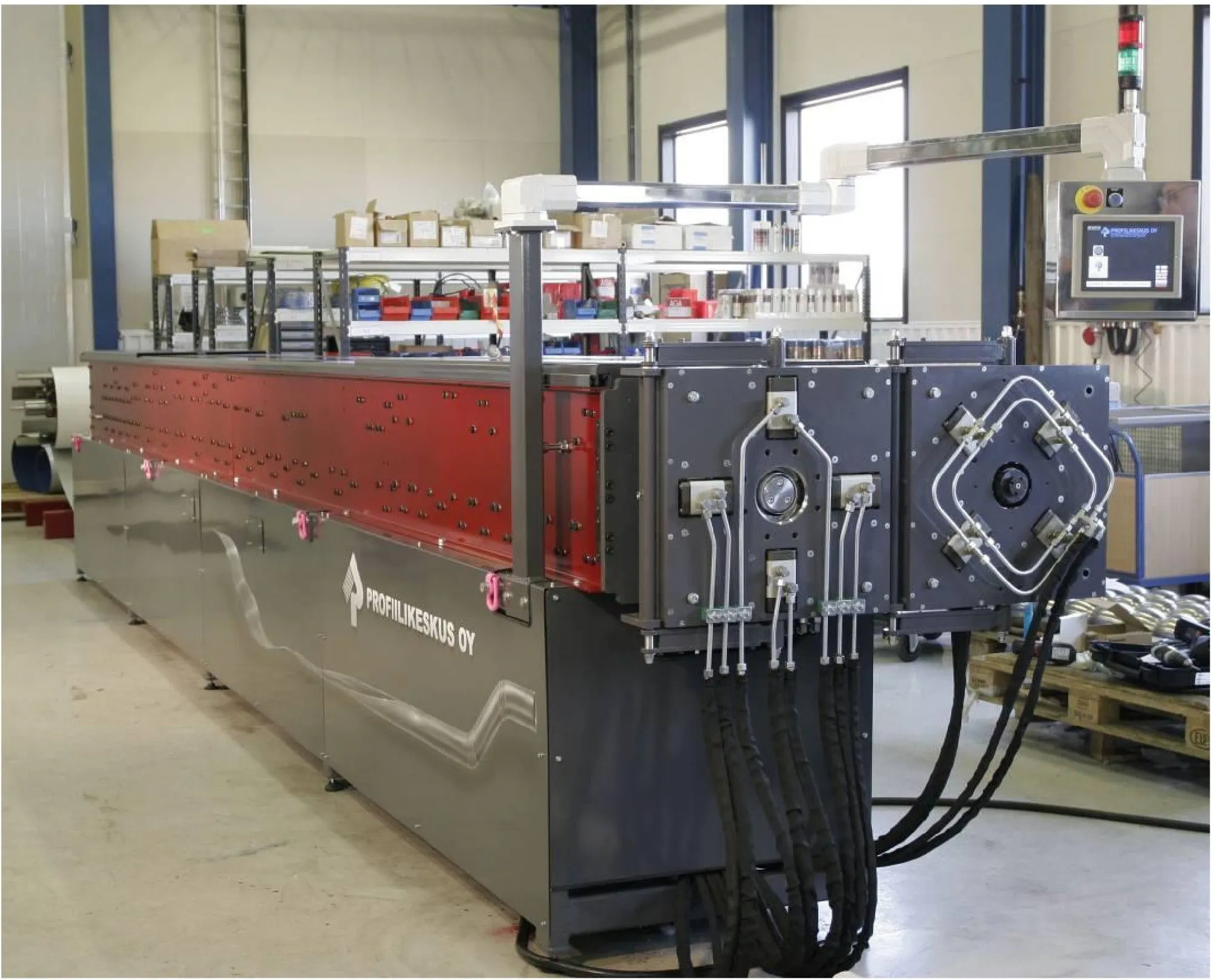

The Profiilikeskus Oy 3” x 4” Downspout Roll Former is a high-speed automated system designed for producing rectangular downspouts and elbows from pre-painted galvanized steel. This all-in-one machine combines straight downspout production, elbow forming, and end crimping into a single efficient production line for gutter and roofing manufacturers.
Specifications
Manufacturer: Profilikeskus Oy
Machine Type: Rectangular Downspout and Elbow Roll Former
Profile Size: 3″ x 4″
Material Capacity: 26 ga steel
Material Type: DX52 / DX53 steel
Production Speed: Approx. 147.64 ft/min
Elbow Production Capacity: Up to 500 elbows/hour
Machine Dimensions (L x W x H): 288.7′ x 22.96′ x 39.37′
Machine Weight: 11,905 lbs
Servo Drive Motor: 4.4 kW
Hydraulic System: 4 kW / 125 bar
Power Requirement: 3x480V, 60 Hz
Programmable Product Storage: 100 programs
Programmable Lengths: Inches or millimeters
Compatible Elbow Angles: 45°, 60°, 90°
Decoiler Capacity: 2 Ton
Maximum Coil Width: 15.74″
Decoiler Expansion Range: 14.566″ – 24.803″
Decoiler Power: 1.5 kW
Decoiler Electrical Requirement: 3x480V, 16 Amp, 60 Hz
Equipped With
Integrated Downspout Roll Forming Section

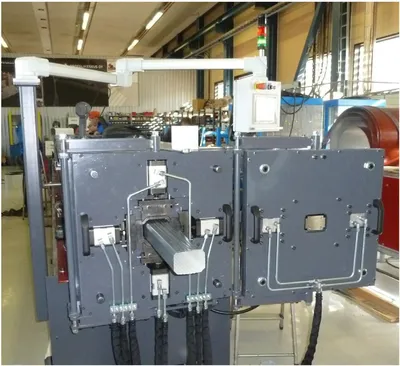

Integrated Elbow Forming Section
Hydraulic Post Cutter
End Crimping System

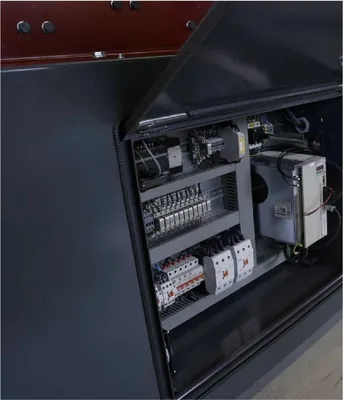

Touchscreen Programmable Control
Servo Motor Drive System

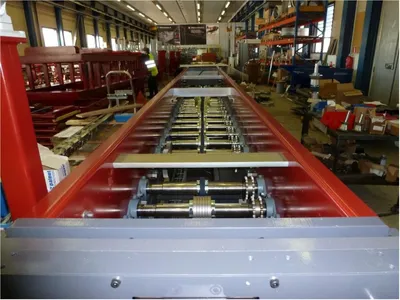

Chain Driven Roll Forming System
Product Program Storage
Hydraulic Crimping Plate
Transformer for 480V Power
2 Ton Motorized Decoiler
Automatic Sensor Arm Coil Feed System
Electrical Wheeling Decoiler System
