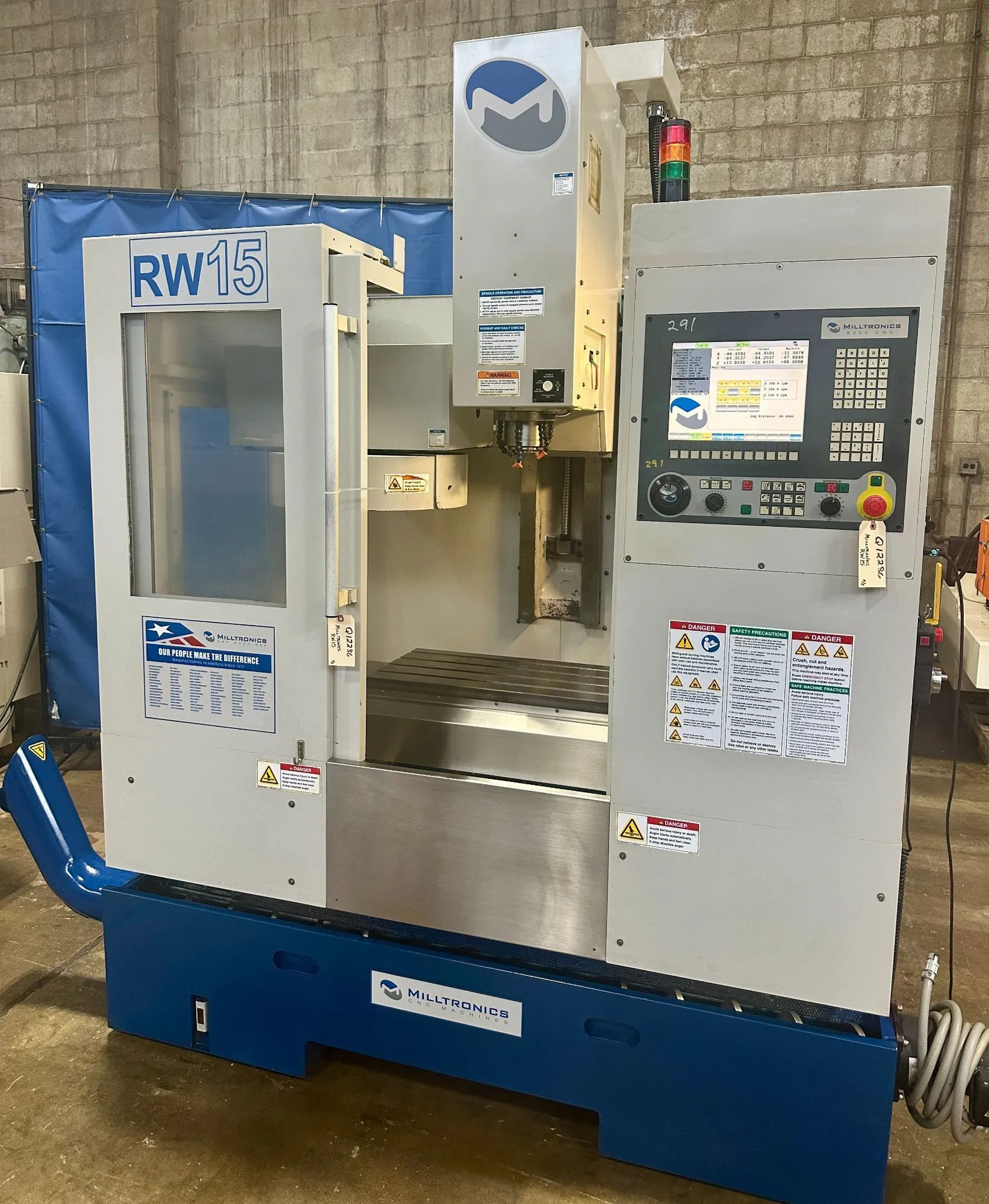

MILLTRONICS RW15 CNC VERTICAL MACHINING CENTER, Milltronics 8200 CNC Control, 14" x 30" Table, X=25", Y=15", Z=20", CAT 40 Taper, 18 HP, 16000 Max Spindle RPM, 16 ATC, Coolant Tank w/ Chip Auger, New 2012.
| CNC Control | Milltronics 8200 CNC | Milltronics 8200 CNC |
| # Axis | 3 | 3 |
| Table-L | 30" | 762 mm |
| Table-W | 14" | 355.6 mm |
| Max Table Load Capacity | 750 lb | 340.2 kg |
| X-Axis (Longitudinal Travel) | 25" | 635 mm |
| Y-Axis (Cross Travel) | 15" | 381 mm |
| Z-Axis (Vertical Travel) | 20" | 508 mm |
| X-Axis Rapid Traverse Rate | 1,000 in/min. | 25.4 m/min. |
| Y-Axis Rapid Traverse Rate | 1,000 in/min. | 25.4 m/min. |
| Z-Axis Rapid Traverse Rate | 800 in/min. | 20.3 m/min. |
| Spindle Power | 18 hp | 13.4 kW |
| Spindle Speed Range | 16,000 RPM | 16,000 RPM |
| Spindle Taper | CAT 40 | CAT 40 |
| Automatic Tool Changer Capacity (ATC) | 20 | 20 |
| Dimensions | 73" x 77" x 101.5" | 73" x 77" x 101.5" |
| Weight | 6,500 lbs | 6,500 lbs |
Milltronics 8200 CNC Control, 16,000 RPM Spindle, Coolant Tank w/ Chip Auger.
