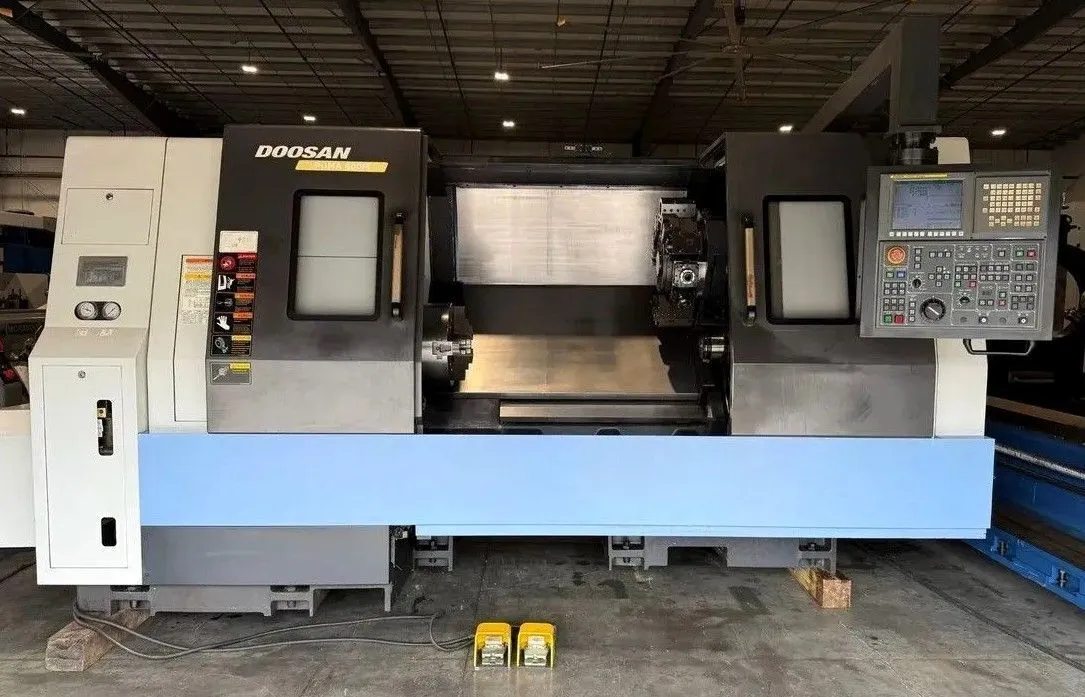

DOOSAN PUMA 400MB CNC Universal Lathe with Milling, New in 2013.
| Swing | 30.3" | 769.62 mm |
| Machining Length | 38.5" | 977.9 mm |
| # Axis | 3 | 3 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4.5" | 114.3 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 22" | 558.8 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Fanuc i-Series) | CNC (Fanuc i-Series) |
General Specifications:
Swing Over Bed 30.3"
Machining Length 38.5"
Distance Between Centers 44"
Turning Diameter, Shaft Diameter 22"
Chuck Size 1 15"
Spindle Nose 1 A2 - 11
Spindle Bore Diameter 1 5.2"
Spindle Bar Capacity 1 4.6"
Spindle Speeds 1 2,000 RPM
Spindle Horsepower 1 40 hp
X1 - Axis Travel 14.1"
Z1 - Axis Travel 43.5"
C1 - Axis Travel .001
Rapid Traverse Rate - X1 629 in/min.
Rapid Traverse Rate - Z1 708 in/min.
Turret Configuration 1 1255
Turret Rotary Tool Spindle Speed 1 3,000 RPM
Turret Rotary Tool Horse Power 1 10 hp
Tailstock Quill Diameter 4.7"
Tailstock Taper MT 6
Tailstock Quill Travel 39.4"
Programmable Tailstock YES
# Axis 3
Live Tooling 'Yes'
Control CNC (DOOSAN FANUC SERIES I CNC CONTROL)
DOOSAN FANUC SERIES I CNC CONTROL
TOOL SETTER
15" 3 JAW HYDRAULIC CHUCK
CHIP CONVEYOR
(1) I.D. ROTARY HEAD
(2) O.D. ROTARY HEADS
STATIC HOLDERS
Power on time 11,637, Operating time- 4,119, Cutting time- 2,808
